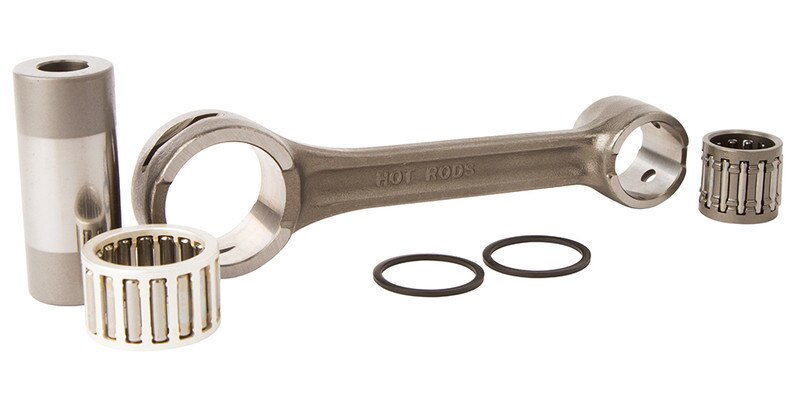

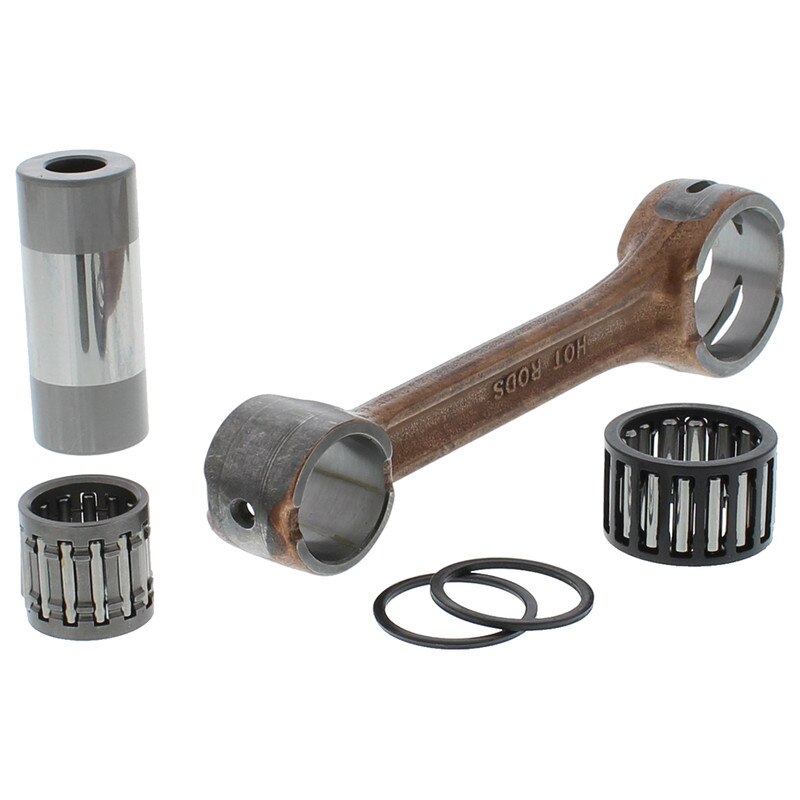

CONNECTING ROD KIT 87-95 RM250, HOTROD 8105 SUZUKI RMX250

Connecting rod kit for Suzuki RM 250 (1986–1995) and Suzuki RMX 250 (1989–1998) models. This premium kit is engineered for high-performance applications and ensures durability under demanding conditions.

Features:

• Manufactured from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for exceptional strength.


• Strategically designed with side scalloping and vent slots to minimize bearing race distortion at high RPMs.


• Double-forged rods ensure improved grain flow and dimensional consistency.


• Shot-peened and double-honed for maximum durability under heavy loads.


• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.


• Thrust washers and crank pin bearings are silver-coated for improved lubricity and wear resistance.


• Complete kit includes connecting rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.

Specifications:

• Centre to Centre: 128.00 mm


• Big End Bore Ø: 32.00 mm


• Big End Width: Not specified


• Pin Diameter: 24.00 mm


• Pin Length: 57.70 mm


• Small End Bore Ø: 23.00 mm


• Small End Width: Not specified


• Washer Thickness: Not specified

Cross-Reference OEM Part Numbers:

HOTRODS 8105, SUZUKI: 12161-00B00, 12161-05D00, 12161-28C30

Vehicle Fitment:

• Suzuki RM 250 (1986–1995)


• Suzuki RMX 250 (1989–1998)

Part Number: 56-988.HR
