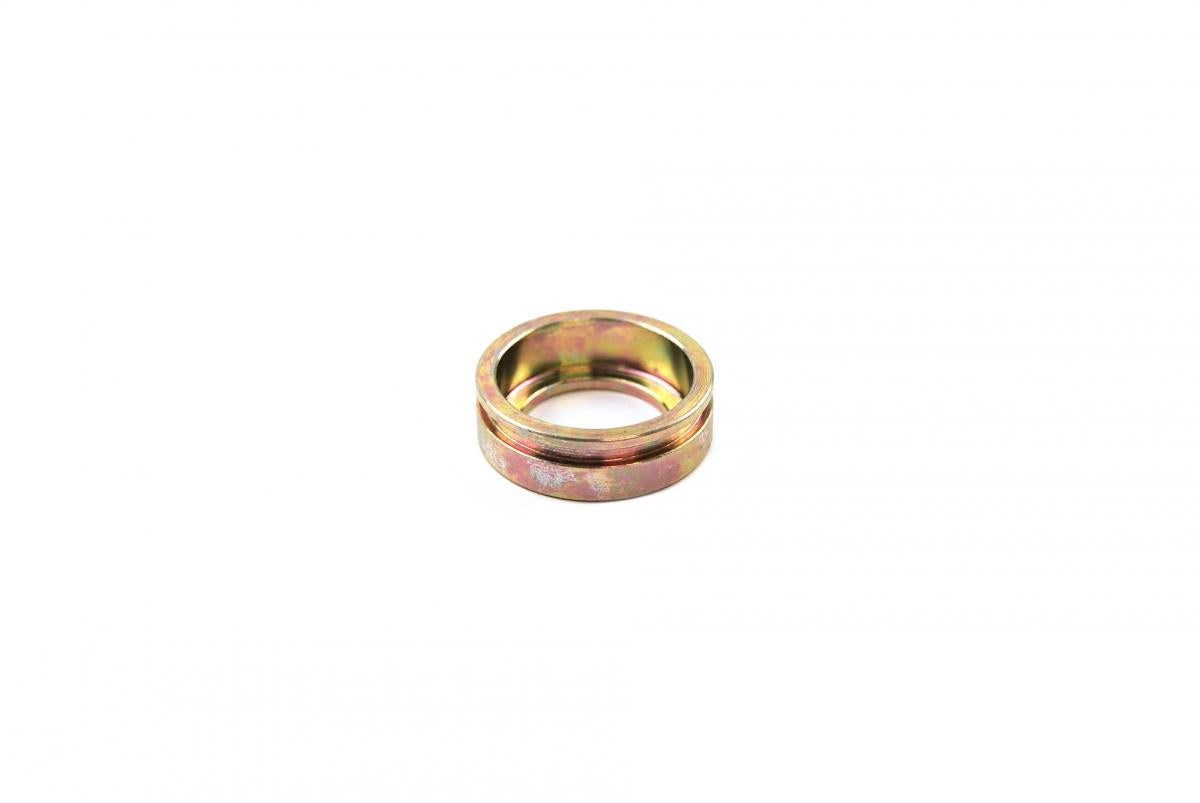

BUSH / CAP SWINGARM 17x27x8.5mm CAP SWING ARM PIVOT 11012-1790 EACH

Part No. 74-415 (oro2u.com)

Bush / Cap – For Swingarm Roller Pin

Type: Stepped bush with seal groove

Dimensions:

•


  Outer Diameter (OD): 26.98 mm





•


  Overall Width: 8.50 mm




Internal Bore (Stepped):

•


  Primary Inside Diameter: 22.00 mm





•


  Secondary Inside Diameter: 17.07 mm





•


  Step Depth: 6.85 mm




Seal Groove:

•


  Width: 1.90 mm





•


  Depth: 1.10 mm




Interpreted Structure

•


  The bush has a stepped internal bore:






  •


    22.00 mm section





  •


    stepping down to 17.07 mm









•


  The step is 6.85 mm deep from one face.





•


  A seal groove (likely for an O-ring or dust seal) is machined on the outer surface.




Kawasaki Motorcycle 1992 KX250 - KX250-J1 SWING ARM



Kawasaki Motorcycle 1992 KX125 - KX125-J1 SWING ARM



Kawasaki Motorcycle 1993 KX125 - KX125-J2 SWING ARM



Kawasaki Motorcycle 1993 KX250 - KX250-J2 SWING ARM



Kawasaki Motorcycle 1993 KLX650R - KLX650-A1 SWINGARM



Kawasaki Motorcycle 1993 KLX650 - KLX650-C1 SWINGARM



Kawasaki Motorcycle 1994 KX125 - KX125-K1 SWINGARM



Kawasaki Motorcycle 1994 KX250 - KX250-K1 SWINGARM



Kawasaki Motorcycle 1994 KLX650 - KLX650-C2 SWINGARM



Kawasaki Motorcycle 1994 KLX650R - KLX650-A2 SWINGARM



Kawasaki Motorcycle 1995 KX125 - KX125-K2 SWINGARM



Kawasaki Motorcycle 1995 KLX650R - KLX650-A3 SWINGARM



Kawasaki Motorcycle 1995 KLX650 - KLX650-C3 SWINGARM



Kawasaki Motorcycle 1995 KX250 - KX250-K2 SWINGARM



Kawasaki Motorcycle 1996 KLX650 - KLX650-C4 SWINGARM



Kawasaki Motorcycle 1996 KLX650R - KLX650-D1 SWINGARM
