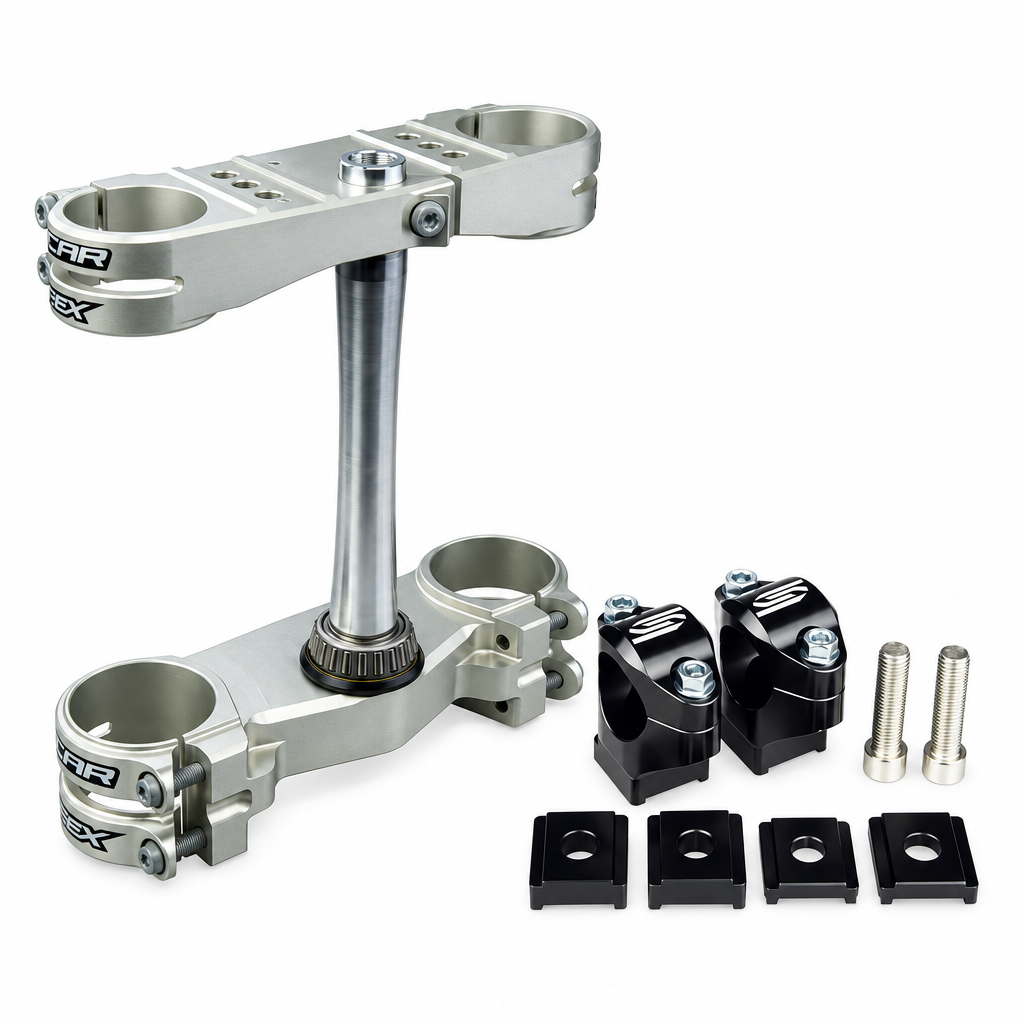

APEX TRIPLE CLAMP & BAR MOUNTS 04-24 KTM SX HUSQVARNA TC GASGAS MC 85 SCAR RACING S5416X

The SCAR Racing APEX triple-clamp set replaces the fork clamps on the listed KTM, Husqvarna and GASGAS motorcycles. It holds the fork tubes in the steering assembly and provides adjustable handlebar mounting positions. This set includes P32 APEX bar mounts; compatible APEX mounts are required if fitting the triple clamps without the supplied mounts.

Features

• Split-clamp design intended to reduce fork-tube distortion.


• Upper clamp has three handlebar mounting locations. Reversing the APEX bar mounts provides six fore-and-aft positions in total.

Specifications

• Triple-clamp offset: 14 mm.


• Triple-clamp material: CNC-machined 7075-T6 aluminium.


• Colour: silver.


• P32 bar-mount handlebar diameter: 28.6 mm.


• P32 bar-mount height options: 30, 35, 40 and 45 mm.

Kit Contents

• Triple-clamp set with steering stem and steering bearing pre-fitted.


• P32 APEX bar mounts for SCAR Racing APEX triple clamps.

Cross-Reference OEM Part Numbers

• SCAR Racing: S5416X.

Vehicle Fitments

• KTM 85 SX: 2004–2024.


• Husqvarna TC 85: 2014–2024.


• GASGAS MC 85: 2021–2024.
