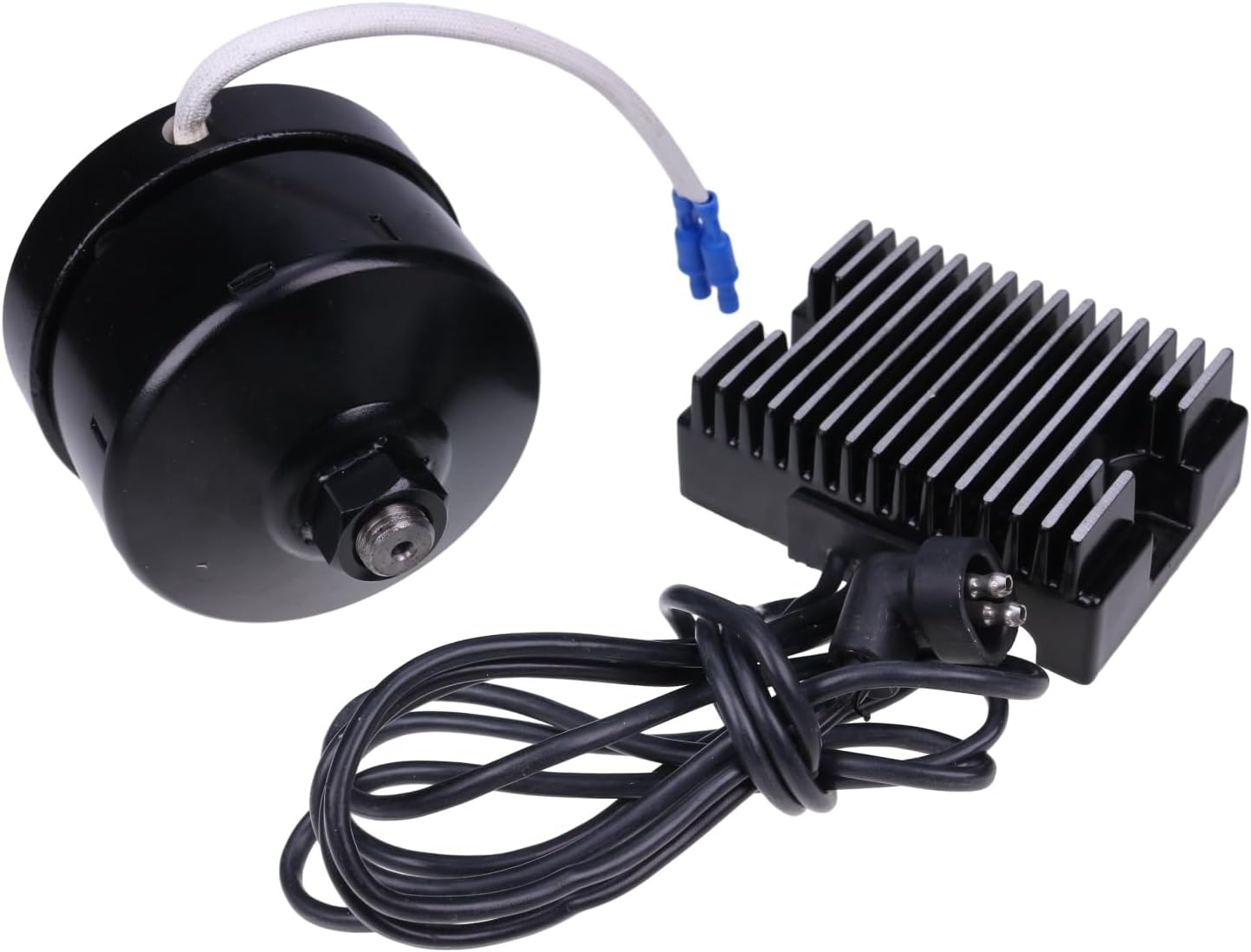

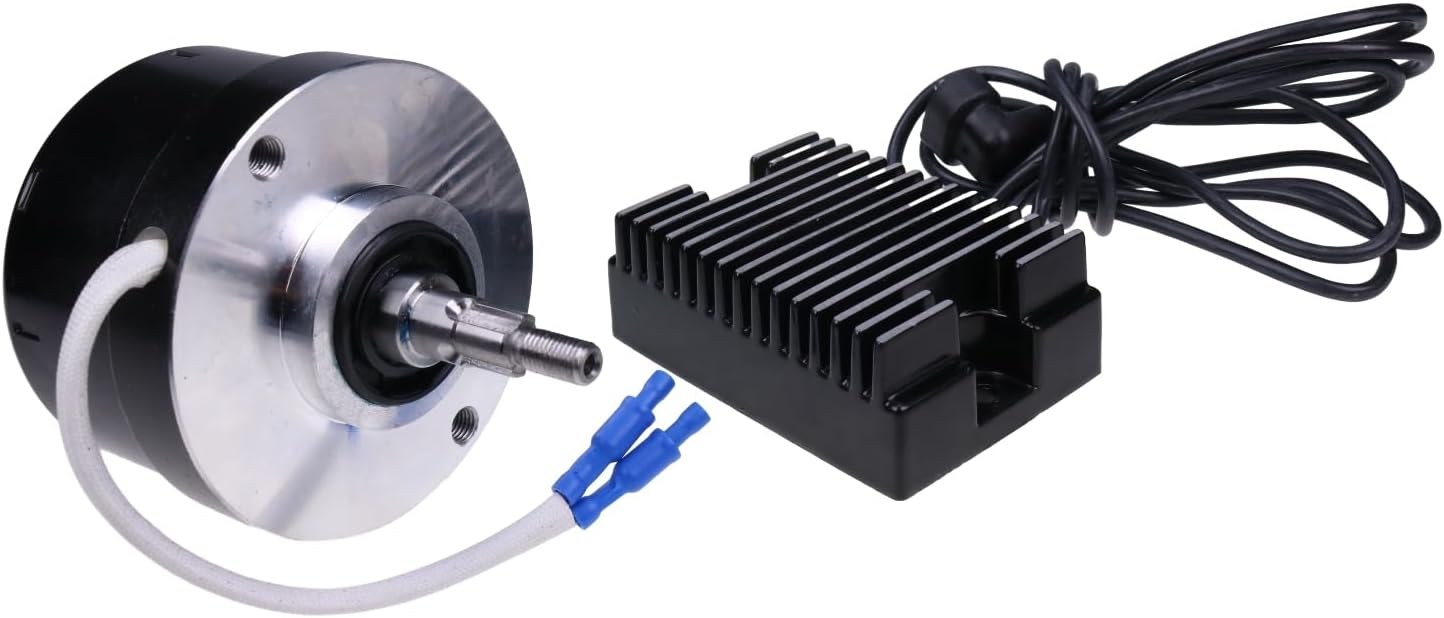

ALTERNATOR GENERATOR CONVERSION KIT 36-82 HARLEY-DAVIDSON G XL FL W 12V 17 AMP 32-0371

This alternator generator conversion kit is designed to replace the original generator and regulator on compatible Harley-Davidson models. It provides a 12 volt charging system with a compact alternator and remote regulator, supporting reliable battery charging on classic G, XL, FL and W applications.

Features

• Replaces the original generator and regulator


• Includes black alternator and black regulator


• Uses a compact high-output alternator design


• Billet housing supports accurate alignment


• Stress-proof shaft construction


• 13-tooth drive gears are used for Big Twin models


• 14-tooth drive gears are used for Sportster models


• A 12 volt battery is required


• The regulator is not built in and must be mounted remotely


• Not suitable for use with a mini battery

Specifications

• Part number: 32-0371


• Output: 17 amps at 1000 rpm


• Voltage: 12 volts


• Alternator length: 3-1/4 inches


• Alternator weight: 3 lb


• Mounting holes: 5/16 inch x 24


• XL and FL applications may require generator bolt holes in the crankcases to be drilled to 5/16 inch


• A thread repair kit may be required to convert 5/16-24 threads to 1/4-24 threads for early mounting bolts


• Suggested replacement seal: PHLE TC1835

Vehicle Fitments

• Harley-Davidson G 1936-1973


• Harley-Davidson XL 1958-1982


• Harley-Davidson FL 1941-1969


• Harley-Davidson W 1936-1952
