HANDLEBAR CR HIGH BEND 4 RISE BLACK STEEL 7/8 22.2 mm X-BAR 773-01 722.01

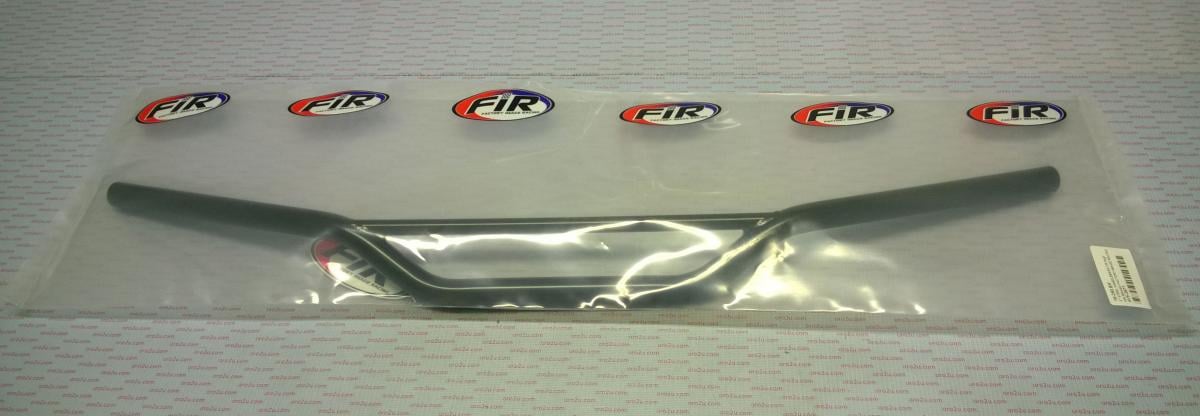

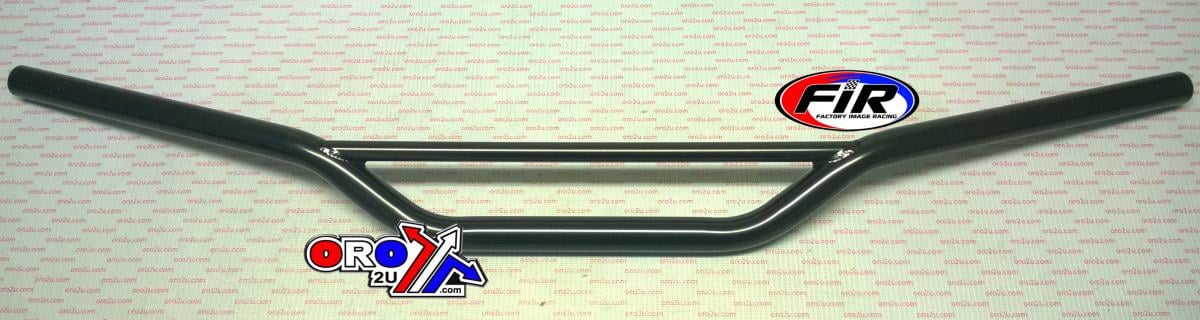

This steel motorcycle handlebar is a CR High bend replacement bar with a 4 inch rise, intended to restore steering control and rider position on machines that use this style of braced handlebar. It is supplied in black and uses a welded cross brace, making it suitable for motocross and off-road applications where a higher bar profile is required.

Features

• Replacement motorcycle handlebar
• CR High bend profile
• Higher hand position than a lower bend bar
• Welded cross brace design for a braced handlebar layout
• Suitable for off-road and motocross-style use

Specifications

• Material: carbon steel
• Wall thickness: 2.5 mm
• Clamp diameter: 7/8 inch (22.2 mm)
• Rise: 4 inch
• Finish: black epoxy powder coat
• Manufacturing process: CNC precision bent
• Brace type: welded X-bar
• Weight: 2.55 lb
• Key dimensions: A 800 mm; B 93 mm; C 67 mm; D 125 mm; E 63 mm; F 195 mm

Cross-Reference OEM Part Numbers

• Factory Image Racing: 16-293
• Renthal: 722.01
• 773-01
