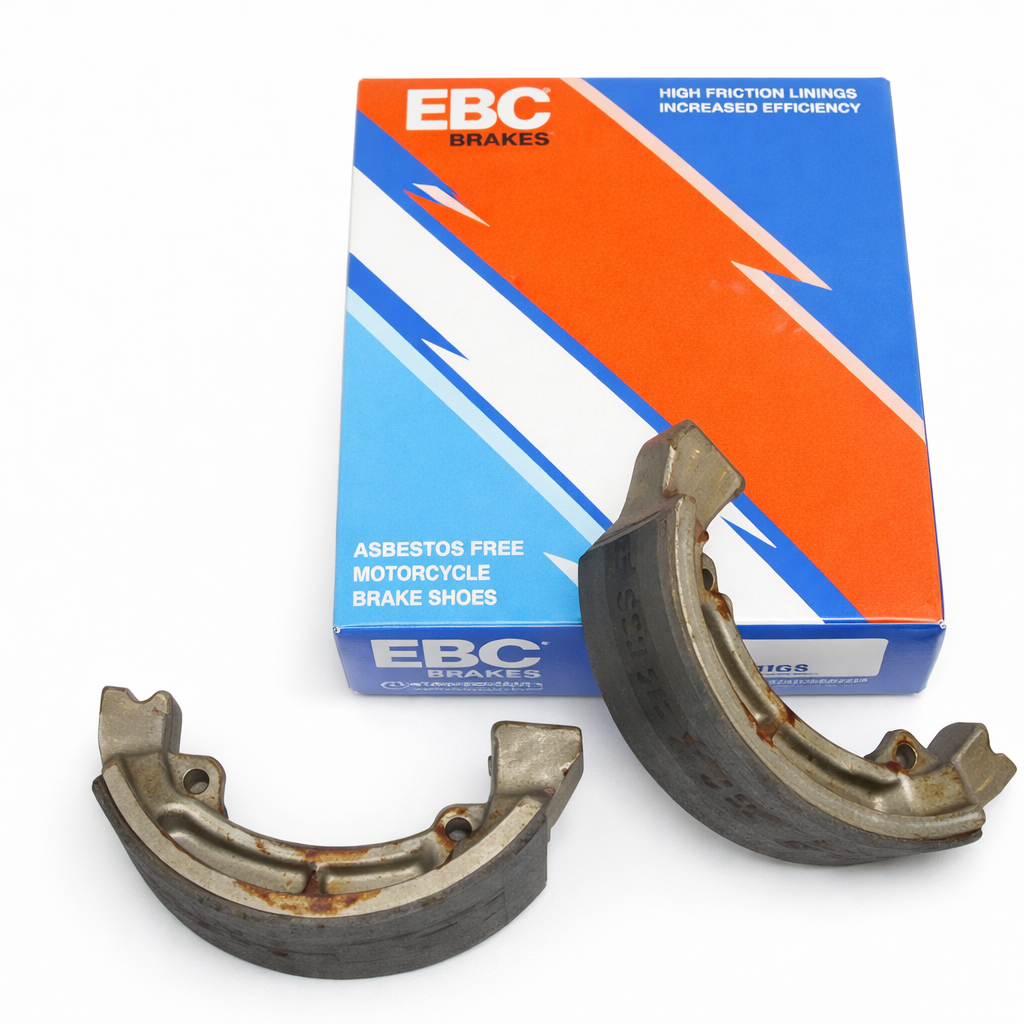

BRAKE SHOES EBC H330 S330

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The plain motorcycle replacement design and 100% asbestos-free bonded brake lining on high-pressure die-cast aluminium platforms balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for motorcycle drum brake systems in front or rear applications.

Features

• Radius-ground lining for accurate drum contact and consistent bedding-in


• Edge-trimmed linings for correct seating within the drum


• Lead-in and lead-out chamfers at lining ends to support smooth engagement


• Supplied with OE-style brake shoe springs

Specifications

• Product type: Brake shoe set


• Product range/series: Plain motorcycle replacement brake shoes


• Position: Front or rear (application dependent)


• Compound / material: 100% asbestos-free bonded brake lining


• Construction / design: High-pressure die-cast aluminium platforms with bonded linings

Dimensions

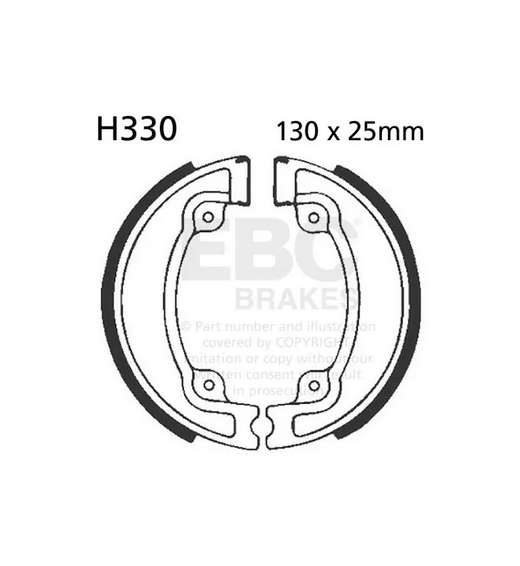

• Disc/rotor diameter: 130 mm


• Weight: 0.25 kg

Cross Reference Numbers

• H330


• DS045


• 650391


• D3120-F1A0-9000


• D3520-F1A0-0000


• 06430-GBC-004


• 06430-444-000


• 06450-KB7-305


• 43120-444-000


• 43120-KA4-700


• 45120-KB7-305

Vehicle Fitment

BOMBARDIER|BRP (Rear Left)

• DS 50 (2002-2006)


• Quest 50 (2003-2004)


• DS 90 (2002-2006)


• Quest 90 (2003-2004)

DERBI (Rear Left)

•


  DFW 50 Quad (2004-2007)




E-TON (Rear Left)

• IXL 40 Rascal (1998-2001)


• RXL 40 E Viper Junior (2001-2007)


• Viper 40 E (1999-2000)


• AXL 90 Thunder (1999-2000)


• DXL 90 Sierra (1999-2003)


• NXL 90 Thunder (2001-2002)


• CXL 150 Challenger (2002-2007)


• EXL 150 Yukon ST (2005-2007)


• Viper EXL 150 ST Quad (2005-2007)


• YXL 150 Yukon (2000-2002)

HONDA (Front Left)

• CG 125 (1985-2003)


• XL 250 (1982, 1984-1985)

HONDA (Rear Left)

• CR 125 (1979-1982)


• CR 250 (1981)


• CR 480 (1982)

KAZUMA QUADS (Rear Left)

•


  110 Falcon (year not specified)




LAVERDA (Rear Left)

• Quasar 50 (2002-2004)


• Quasar 100 (2002-2004)


• Quasar 125 HP (2002-2004)


• Quasar 125 HP Grip (2002-2004)


• Quasar 180 HP Grip (2004)

MOTOROMA (Rear Left)

• Blazer 50|100|110 Quad (1999-2004)


• Sport 90 Quad (2001-2003)


• Quad Roadrunner 100 (2004)
