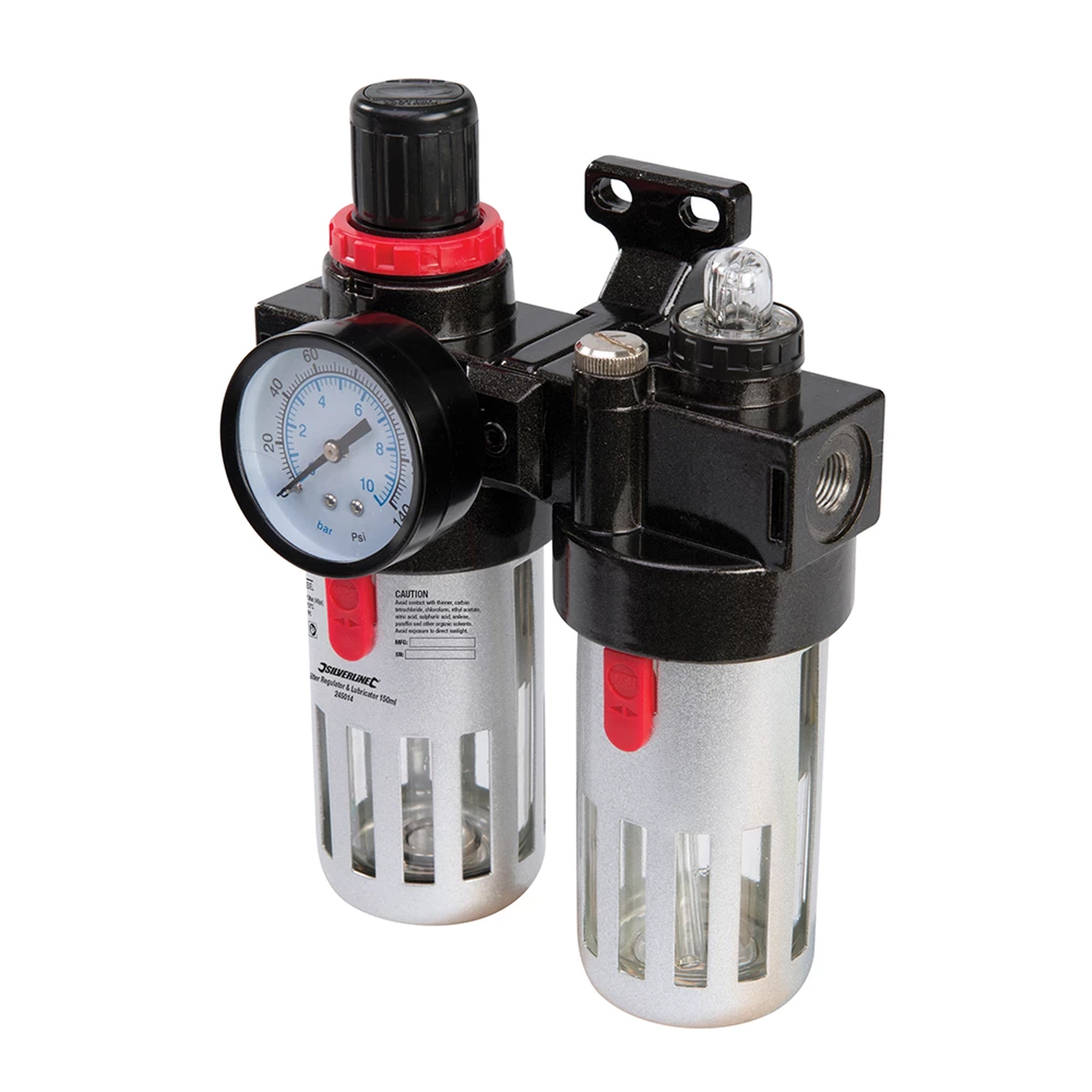

AIR LINE FILTER & OILER 1/4, REGULATOR 1/4BSP, 245014

This air line filter, oiler and regulator assembly is designed for compressed air systems where clean, dry, regulated and lubricated air is required for pneumatic tools and equipment. Installed in the air supply line, it helps remove moisture and contaminants, allows pressure adjustment, and provides controlled lubrication to support reliable operation and reduce damage caused by rust, scale and water in the system.

Features

• Combines filtration, pressure regulation and airline lubrication in one assembly


• Helps protect air tools from contamination and moisture in the compressed air supply


• Allows controlled delivery of regulated air to connected pneumatic equipment


• Suitable for inline installation on workshop and compressor air systems

Specifications

• Connection type: 1/4 in BSP female/female


• Maximum working pressure: 10 bar (145 psi)


• Adjustable pressure range: 0.5 to 8.5 bar


• Water reservoir capacity: 150 ml


• Oil reservoir capacity: 250 ml

Cross-Reference OEM Part Numbers

• 245014


• 09-1070.EA
