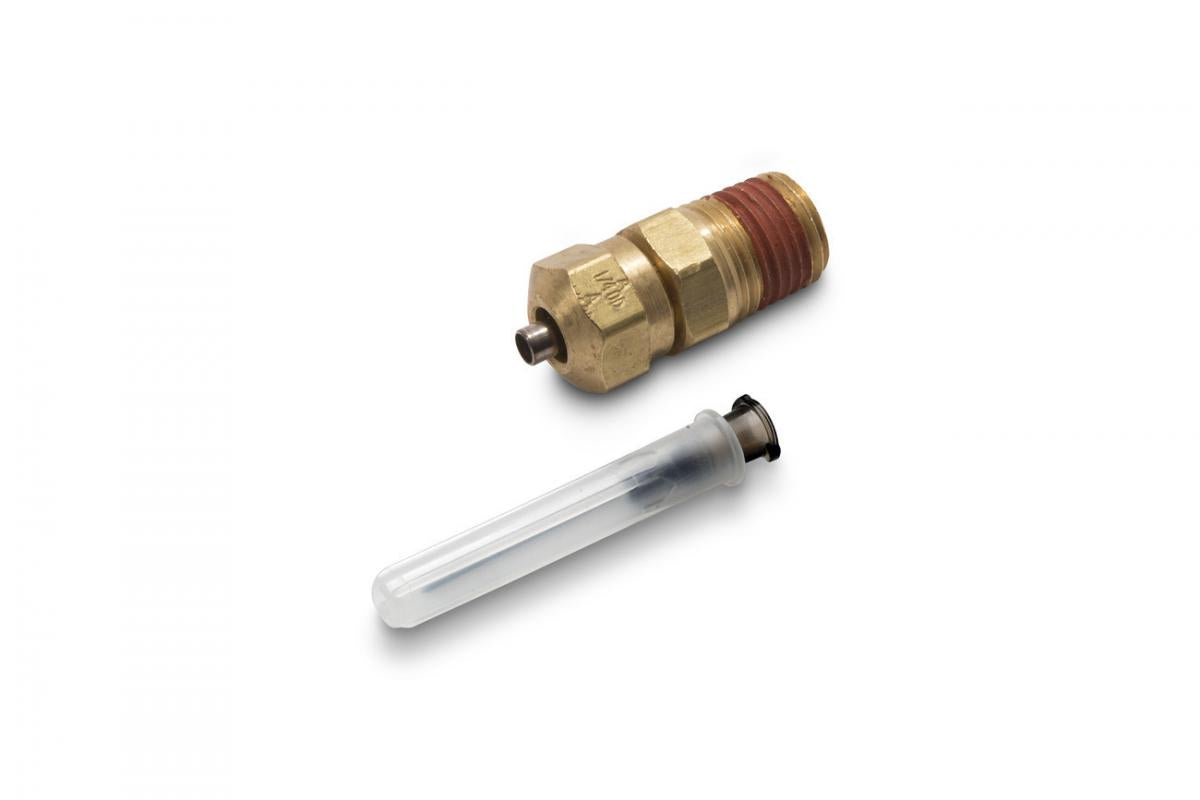

NITROGEN NEEDLE + ADAPTOR MOTION PRO 08-0075

The Motion Pro Nitrogen Needle Kit (Part No. 08-0075)  is designed to facilitate the filling of gas-charged shocks equipped with self-sealing rubber valves, commonly found on certain Yamaha, Fox, and Öhlins models. This tool is intended for use in conjunction with the Motion Pro Nitrogen Shock Gauge (part number 08-0072) to ensure precise and efficient shock servicing.

Features:

• Enables filling of shocks with self-sealing rubber valves


• Compatible with select Yamaha, Fox, and Öhlins shock absorbers


• Designed for use with Motion Pro Nitrogen Shock Gauge (08-0072)


• Includes necessary components for proper installation and use


• Made in the USA

Specifications:

• Needle Gauge: 22


• Needle Length: 1 inch


• Compatibility: Self-sealing rubber valve shocks


• Material: High-quality components for durability

Usage Instructions:

1. Remove the hose assembly from the nitrogen gauge body (08-0072).


2. Install the nitrogen needle adaptor into the gauge body using pipe sealant or Teflon® tape.


3. Remove the retainer nut from the adaptor and slide the needle over the stainless steel tube extending from the adaptor.


4. Install the O-ring over the needle carefully to avoid injury.


5. Reattach the retainer nut and tighten until the O-ring and needle seat against the adaptor.


6. Remove the screw covering the self-sealing rubber valve on the shock.


7. While holding the reservoir body, insert the needle into the valve as straight as possible to avoid bending or breaking the needle.


8. Set the nitrogen tank regulator to the manufacturer's recommended pressure and pressurize the shock accordingly.


9. After filling, carefully remove the needle and replace the cover screw over the valve.


10. Install the protective cover over the needle when not in use.

Safety Precautions:

• Always wear eye protection to prevent injury from escaping gas or debris.


• Never point the needle toward yourself or others.


• Follow the shock manufacturer's instructions and only fill to the recommended pressure.
