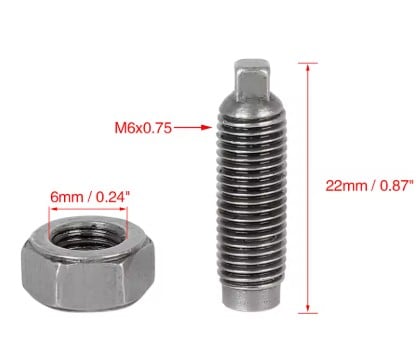

TAPPET ADJUSTING SCREW NUT 77-24 HONDA XL CB CT XR ATC TRX CX GL M6X0.75

The tappet adjusting screw with nut is designed for compatible Honda motorcycle and ATV valve-train assemblies. It allows precise adjustment of tappet or valve clearance and is used within the camshaft, valve or upper rocker arm assembly, depending on the application.

Features

• Enables precise valve-clearance adjustment


• Supplied with an adjusting nut


• Suitable for compatible Honda camshaft, valve and upper rocker arm assemblies

Specifications

• Thread size: M6 × 0.75


• Screw length: 22 mm (0.87 in)


• Nut diameter: 6 mm (0.24 in)


• Material: Aluminium alloy

Cross-Reference OEM Part Numbers

• 90012-415-000


• 90206-250-000


• 90012-324-000

Vehicle Fitments

Honda

• XL100A (1977-1978)


• CB125SA (1978-1980)


• CB125SA BRA (1984-1985)


• CB125SAC BRA (1984-1985)


• CT125A Trail 125 (1977)


• XL125A (1977-1978)


• XL125SA BRA (1985)


• XL125SAC BRA (1985)


• XR200RA (1984-1985)


• ATC250ESA Big Red (1985-1987)


• ATC250SXA All Terrain Cycle (1985-1987)


• TRX250A FourTrax 250 (1985-1987)


• TRX250EXA Sportrax 250EX (2001-2008)


• TRX250TE1A (2022-2024)


• TRX250TE1AC (2019-2020)


• TRX250TE14A (2024)


• TRX250TE3A (2021)


• TRX250TEA (2021)


• TRX250TEA FourTrax Recon ES (2002-2009)


• TRX250TEA Recon ES (2011-2012)


• TRX250TEA TRX250TE (2018)


• TRX250TEAC Recon ES (2013-2014)


• TRX250TEAC TRX250TE (2016-2018)


• TRX250TM1A (2022-2024)


• TRX250TM1AC (2019-2020)


• TRX250TM14A (2024)


• TRX250TM3A (2021)


• TRX250TMA (2021)


• TRX250TMA FourTrax Recon (2002-2009)


• TRX250TMA Recon (2011-2012)


• TRX250TMA TRX250TM (2018)


• TRX250TMAC Recon (2013-2014)


• TRX250TMAC TRX250TM (2016-2018)


• TRX250X1A (2021-2024)


• TRX250X14A (2024)


• TRX250X3AC (2016-2017)


• TRX250XA (2009; 2012)


• TRX250XA FourTrax 250X (1987-1988)


• TRX250XA Sportrax (2011)


• TRX250XA TRX250X (2018)


• TRX250XAC (2013-2014; 2016-2017; 2019-2020)


• TRX250XAC TRX250X (2018)


• XL250RA (1984-1985)


• XL250RAC (1984-1985)


• XR250RA (1984-1985)


• TRX300EXA Sportrax 300EX (2001-2008)


• TRX300XA (2009)


• ATC350XA All Terrain Cycle (1985-1986)


• TRX350A FourTrax 4×4 (1986-1987)


• TRX350DA (1989)


• TRX350DA FourTrax Foreman 4×4 (1987-1988)


• XL350RA (1984-1985)


• XL350RAC (1984-1985)


• XR350RA (1983-1984)


• CX500A (1978-1979)


• CX500CA Custom (1979-1982)


• CX500DA Deluxe (1979-1981)


• CX500TCA 500 Turbo (1982)


• GL500A Silver Wing (1981-1982)


• GL500IA Silver Wing Interstate (1981-1982)


• CX650TA 650 Turbo (1983)
