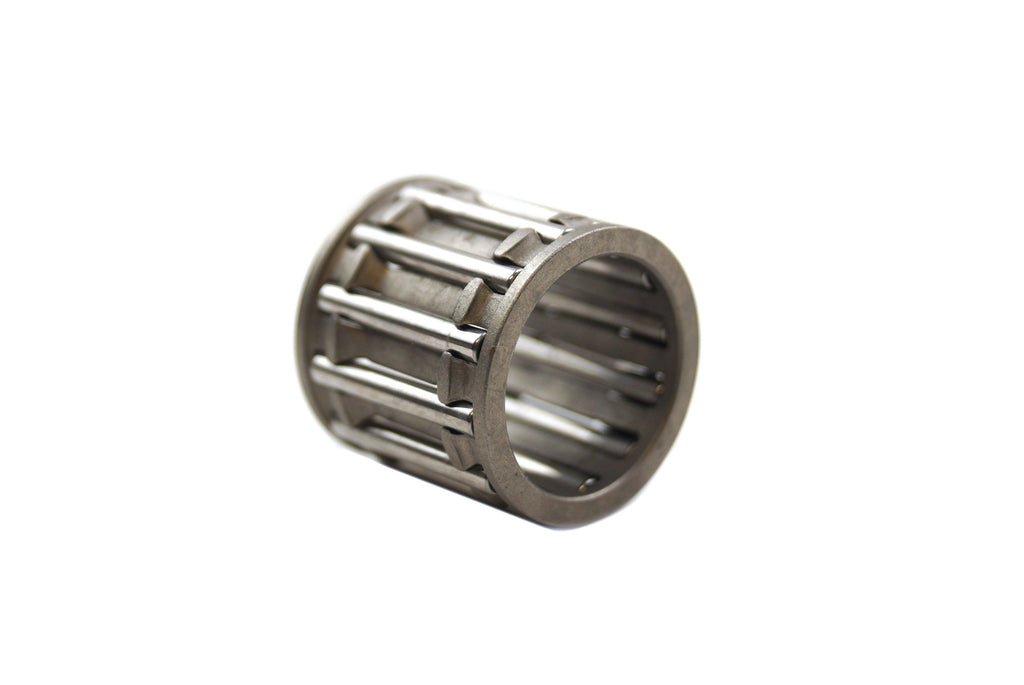

SMALL END 14x18x17 BEARING

Small-end needle roller bearing sized 14 × 18 × 17 mm for Kawasaki two-stroke engines, used at the piston pin (gudgeon pin) in the connecting rod small end. Suitable for the KX80, KX85 and KX100 across the model years listed.

Features

• Designed for piston pin (small-end) location


• 12-roller construction


• Suitable for the specified Kawasaki models and years

Specifications

• Type: needle roller small-end bearing


• Dimensions: 14 mm (ID) × 18 mm (OD) × 17 mm (width)


• Roller count: 12


• Part reference: 56-823.DR

Vehicle Fitments

• Kawasaki KX80 – 1981–2016


• Kawasaki KX85 – 1981–2016


• Kawasaki KX100 – 1981–2016
