REAR BRAKE DRUM SEAL AND BEARING KIT 2014-2022 HONDA RANCHER FOREMAN TRX 420 500 520 91251-HF7-003

The Rear Brake Drum Seal and Bearing O-Ring Kit is a direct OEM replacement set designed for Honda Foreman 500 and Rancher 420 models. This kit includes all necessary seals, bearing, O-rings, and hardware required for proper rear brake drum servicing. Manufactured to high standards using durable materials, it ensures reliable sealing and long-term performance. Image verification is advised before purchase.

Features

• Constructed from high-tech materials for consistent performance


• Built to exacting standards for reliable rear brake system operation


• Meets or exceeds OEM quality specifications


• Direct OEM replacement


• Image verification recommended before ordering


• Designed as a complete, cost-effective solution


• Easy to install; professional assistance recommended if uncertain

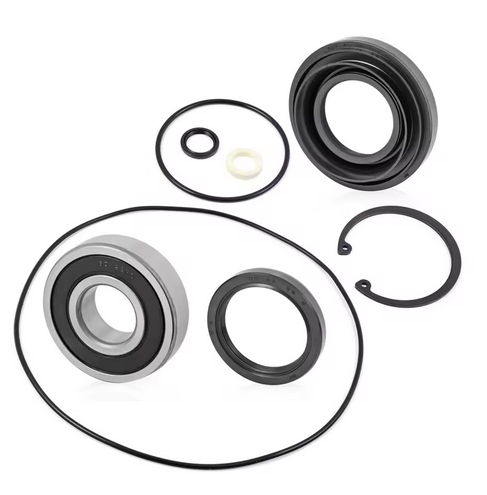

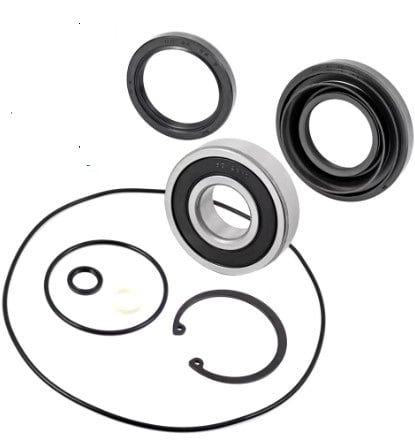

Package Includes

• 1x 41X76X10.5/19 Dust Seal


• 1x 17X23X3 Seal


• 1x 44X58X8 Seal


• 2x O-Rings


• 1x 28X68X18 Bearing


• 1x 68mm Circlip


• 1x Brake Cam Dust Seal

Cross-Reference OEM Part Numbers

• 91251-HF7-003


• 91253-HM7-003


• 91355-HN2-003


• CIRCLIP (INNER) (68MM) 94520-68000


• O-RING (75X3.2) (NOK) 91320-HM7-702


• O-RING (199X3.1) 91355-HN2-003


• DUST SEAL (17X23X3) (NOK) 91206-968-003


• DUST SEAL, BRAKE CAM 43134-300-000

Vehicle Fitments

Honda Foreman 500

• TRX520FE2 4x4 ES EPS (2014–2021)


• TRX520FM1 4x4 (2014–2021)


• TRX520FM2 4x4 EPS (2015, 2020–2021)


• TRX500FE1 4x4 ES (2014–2016)


• TRX500FM2 4x4 EPS (2014, 2016)


• TRX500FE2 4x4 ES EPS Camo (2017)


• TRX500F 4x4 ES (2015)

Honda Rancher 420

• TRX420FA2 4x4 Auto DCT EPS (2014–2021)


• TRX420FA5 4x4 Auto DCT IRS (2015–2021)


• TRX420FA6 4x4 Auto DCT IRS EPS (2015–2021)


• TRX420FE1 4x4 ES / TRX420FM1 4x4 (2014–2021)


• TRX420TM1 (2016–2021)


• TRX420TE1 ES (2016, 2021)


• TRX420FM2 4x4 EPS (2014–2016, 2020–2021)


• TRX420TE1 4x4 ES (2014, 2020)


• TRX420FA2 4x4 Auto DCT EPS Camo (2017, 2019)


• TRX420FA6 4x4 Auto DCT IRS EPS Camo (2017, 2019)


• TRX420FE1 4x4 ES Camo (2017, 2019)


• TRX420FA1 4x4 Auto DCT (2014–2016)


• TRX420FM1 4x4 (2014–2015)


• TRX420FA6 4x4 Auto DCT IRS EPS (2018)


• TRX420FM1 4x4 Camo (2017)


• TRX420FE 4x4 ES / TRX420TM 2x4 / TRX420TE 2x4 ES (2015)


• TRX420FA 4x4 AT / TRX420FPA 4x4 AT EPS (2014)
