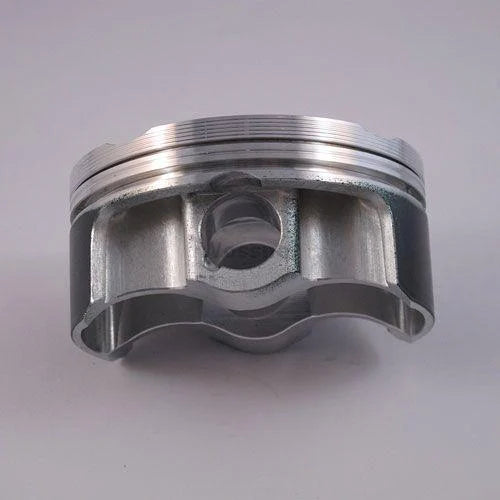

  • Piston Kit: Wossner 8650DB, with a 76.02mm bore (+0.01mm)

  • Applications: Husqvarna TC250, TE250, and TXC250, produced between 2006 and 2009

  • Features:

    • Wossner forged pistons known for superior strength and design

    • Engineered for efficient combustion chamber heat transfer to cylinder walls

    • Elliptical design for a more uniform bearing surface under piston heat expansion, preventing collapse



  • Manufacturing: Made in Germany

  • Additional Parts:

    • Lock: CW16

    • Pin: WP059

    • Ring Set: 760XAS



  • Specifications:

    • Displacement: 249 cm³

    • Hub Stroke: 55.00mm

    • Clearance: 0.04mm

    • Wossner Compression Ratio: 13.00:1

    • OEM Compression Ratio: 12.90:1

    • Dome Volume: -2.70cm³

    • Compression Height: 20.00mm

    • Theoretical Weight: Not provided
