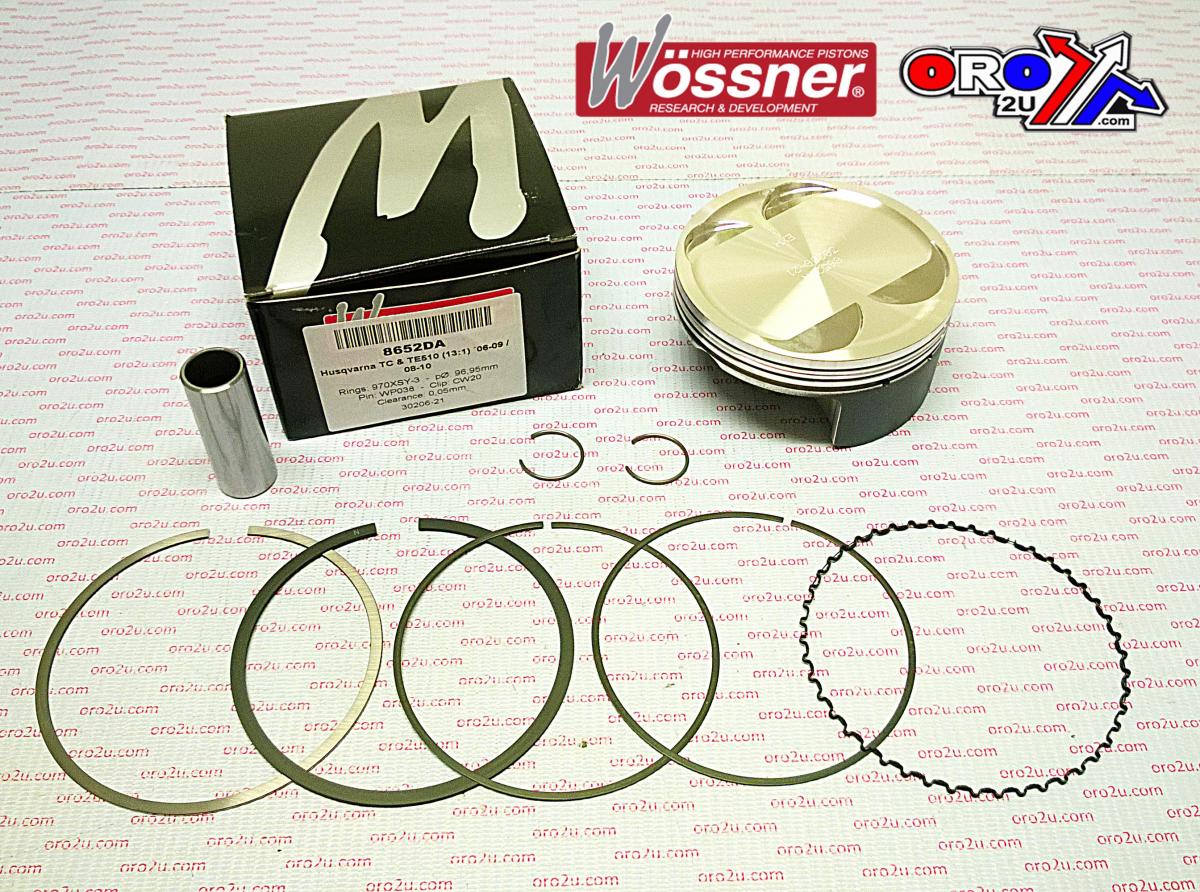

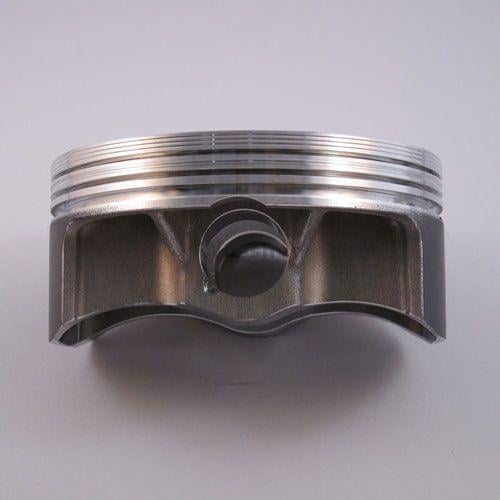

PISTON 04-10 TC TE 510 97.00, HUSQVARNA WOSSNER KIT 8652DB

Wossner forged piston kit designed for Husqvarna TC 510, TE 510, and SMR 510 models with a 97.01mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution, preventing piston collapse. Manufactured in Germany for durability and precision.

Features

• Forged construction for superior strength and durability


• Optimized heat transfer for improved engine performance


• Elliptical design ensures even pressure distribution, reducing localized stress


• Manufactured in Germany for high-quality performance

Specifications

• Bore Size: 97.01mm


• Actual Bore: 96.96mm


• Displacement: 501 cm³


• Stroke: 67.80mm


• Clearance: 0.05mm


• Wossner Compression Ratio: 13.00:1


• OEM Compression Ratio: 12.90:1


• Dome Volume: -9.20 cm³


• Compression Height: 24.80mm


• Lock Part Number: CW20


• Pin Part Number: WP038


• Ring Set Part Number: 970XSY

Cross-Reference OEM Part Numbers

• Wossner Piston Part Number: 8652DB

Vehicle Fitments

• Husqvarna TC 510 (2006-2009)


• Husqvarna TE 510 (2008-2010)


• Husqvarna SMR 510 (2008-2010)
