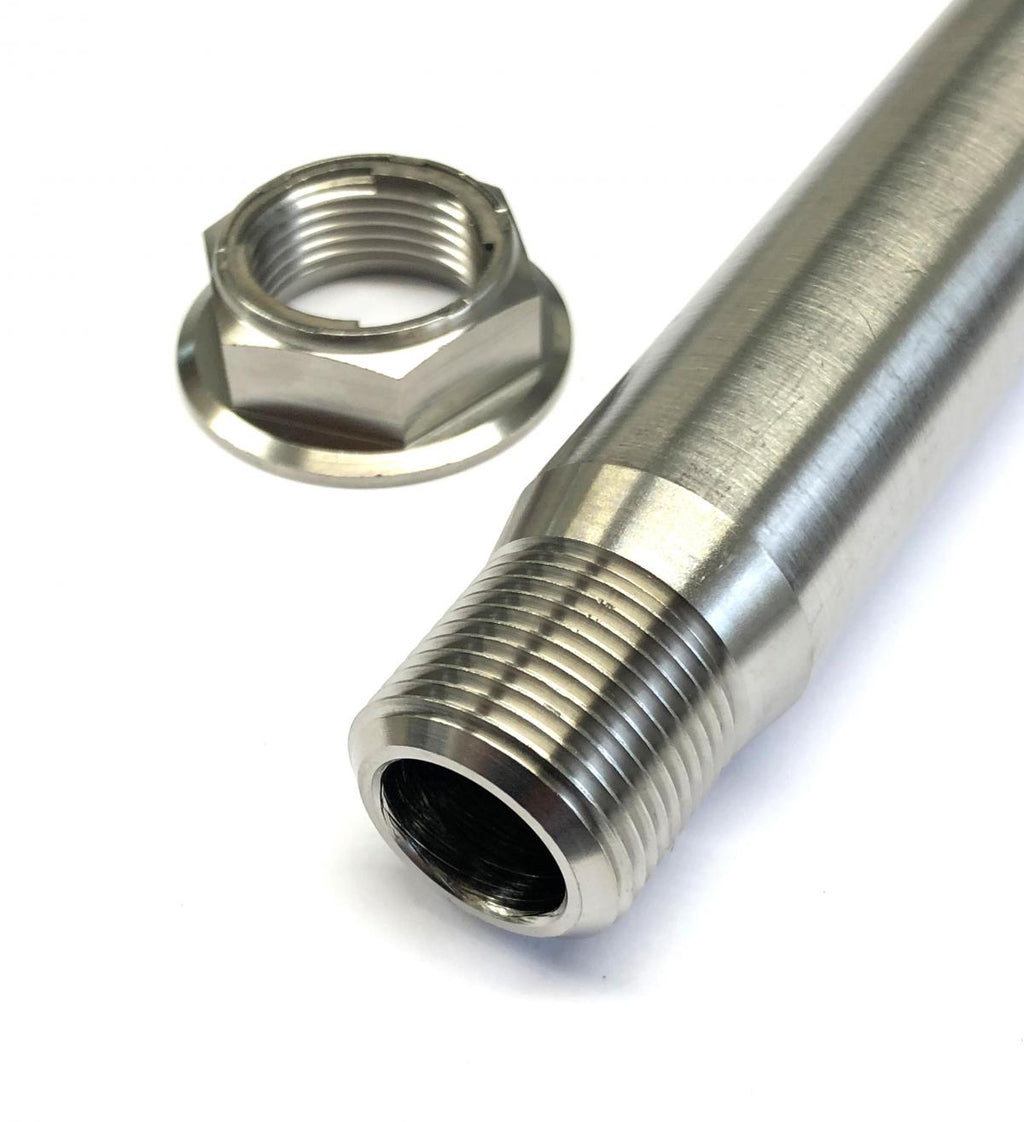

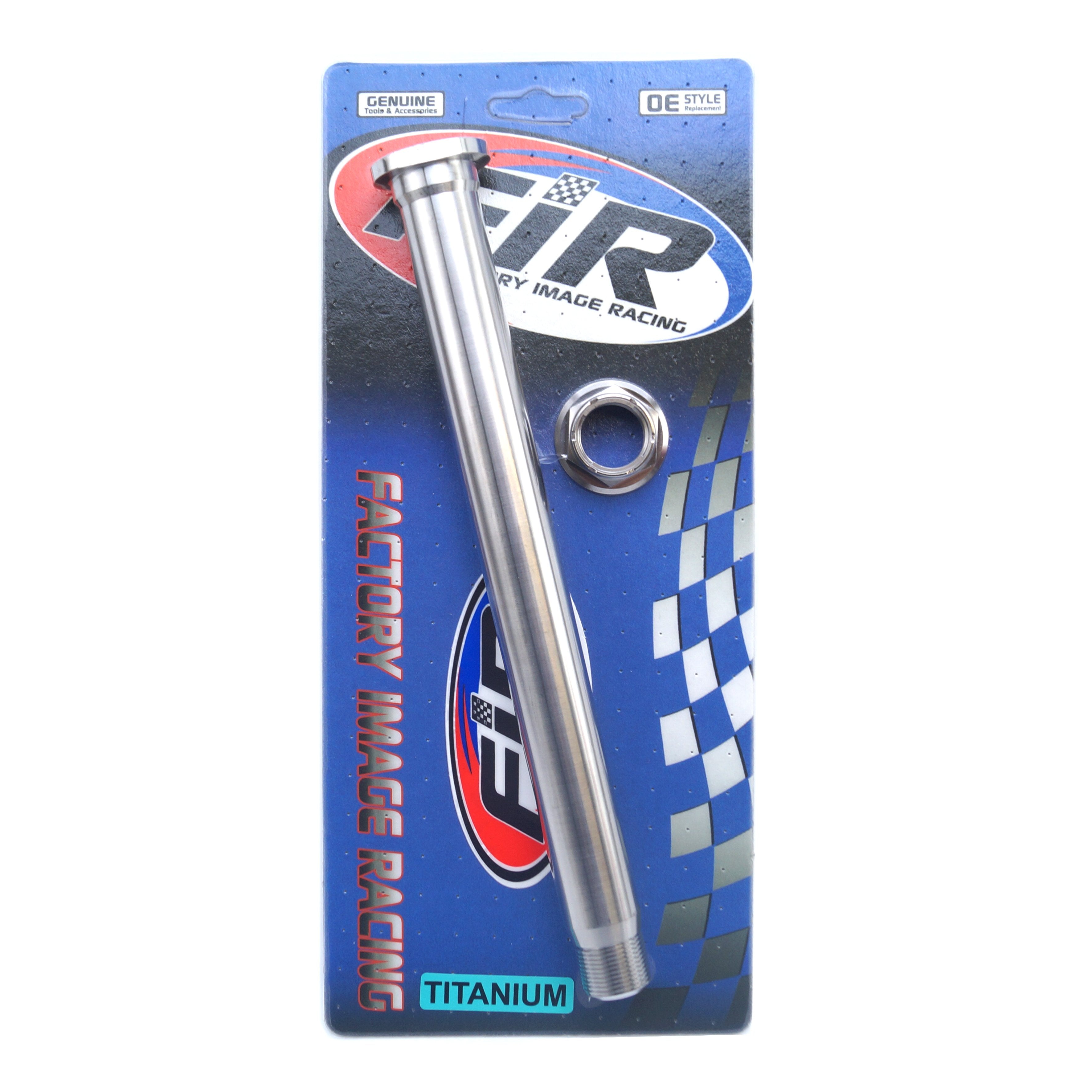

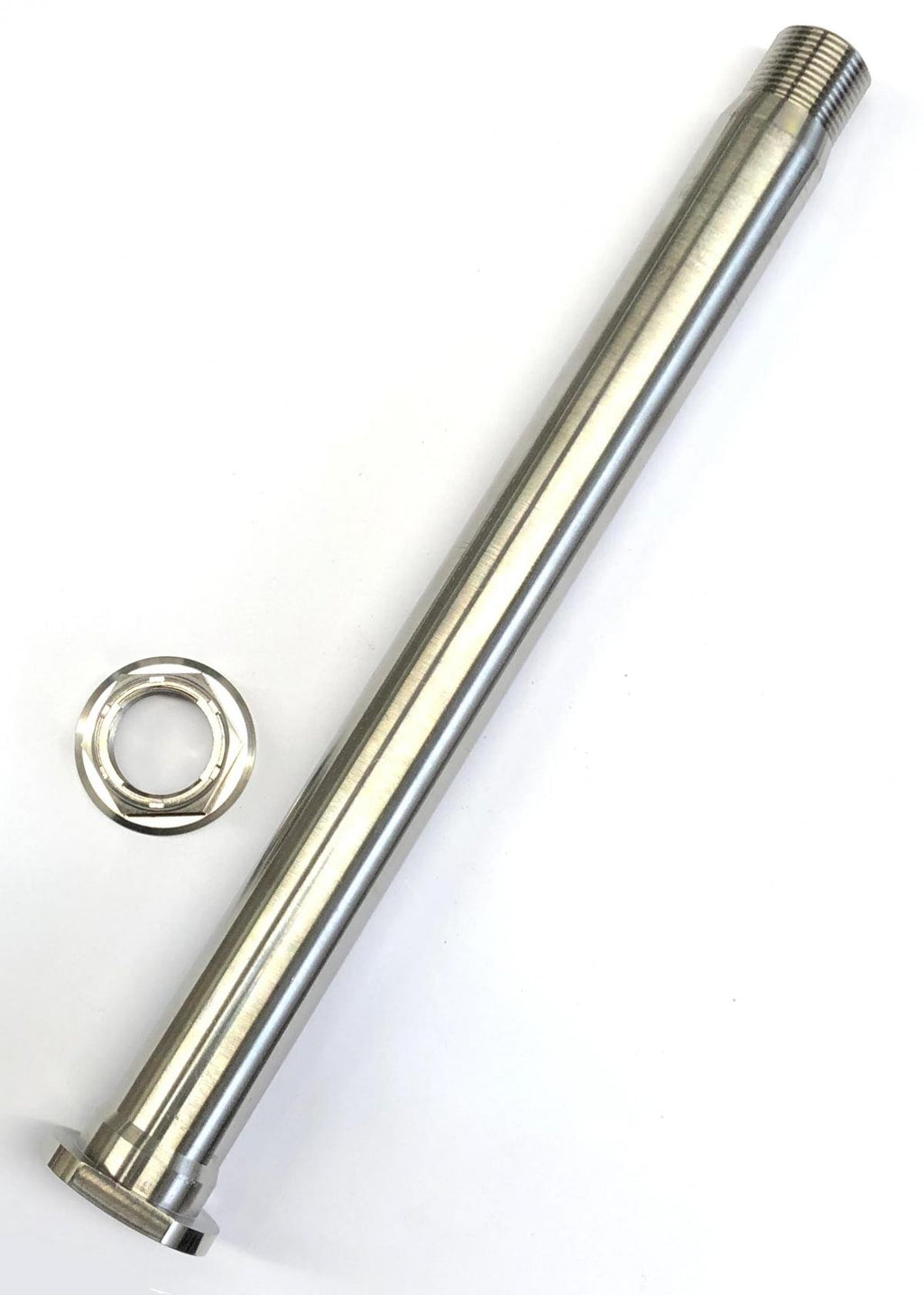

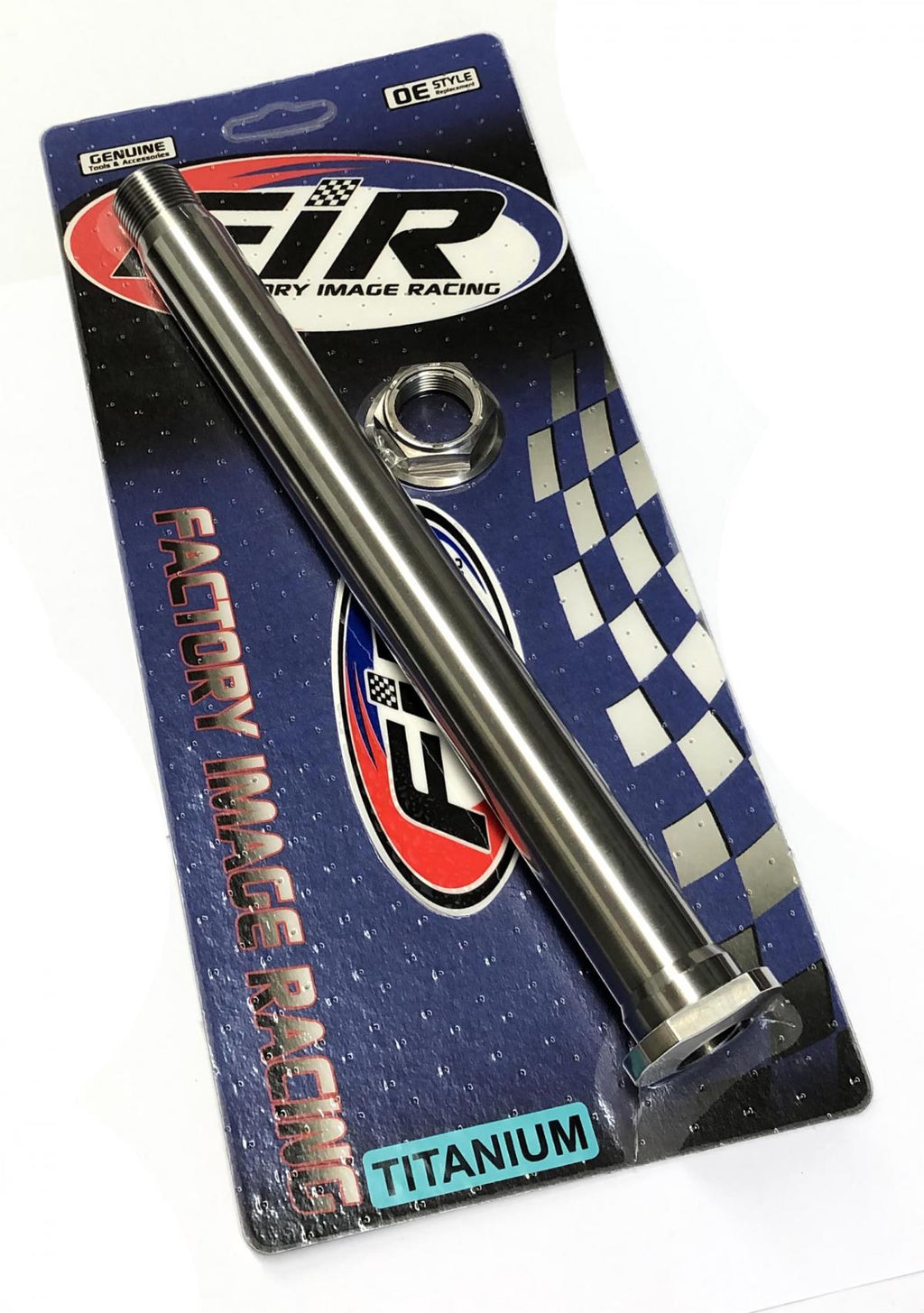

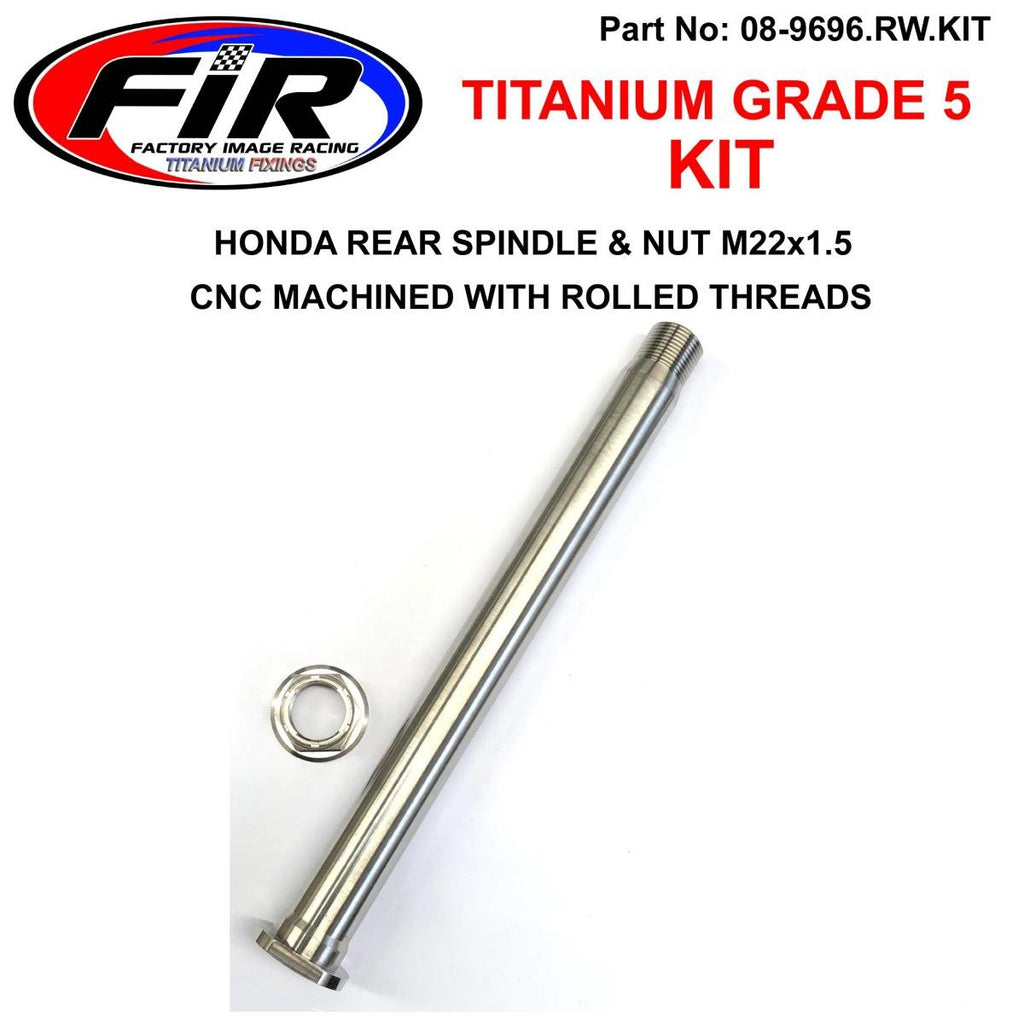

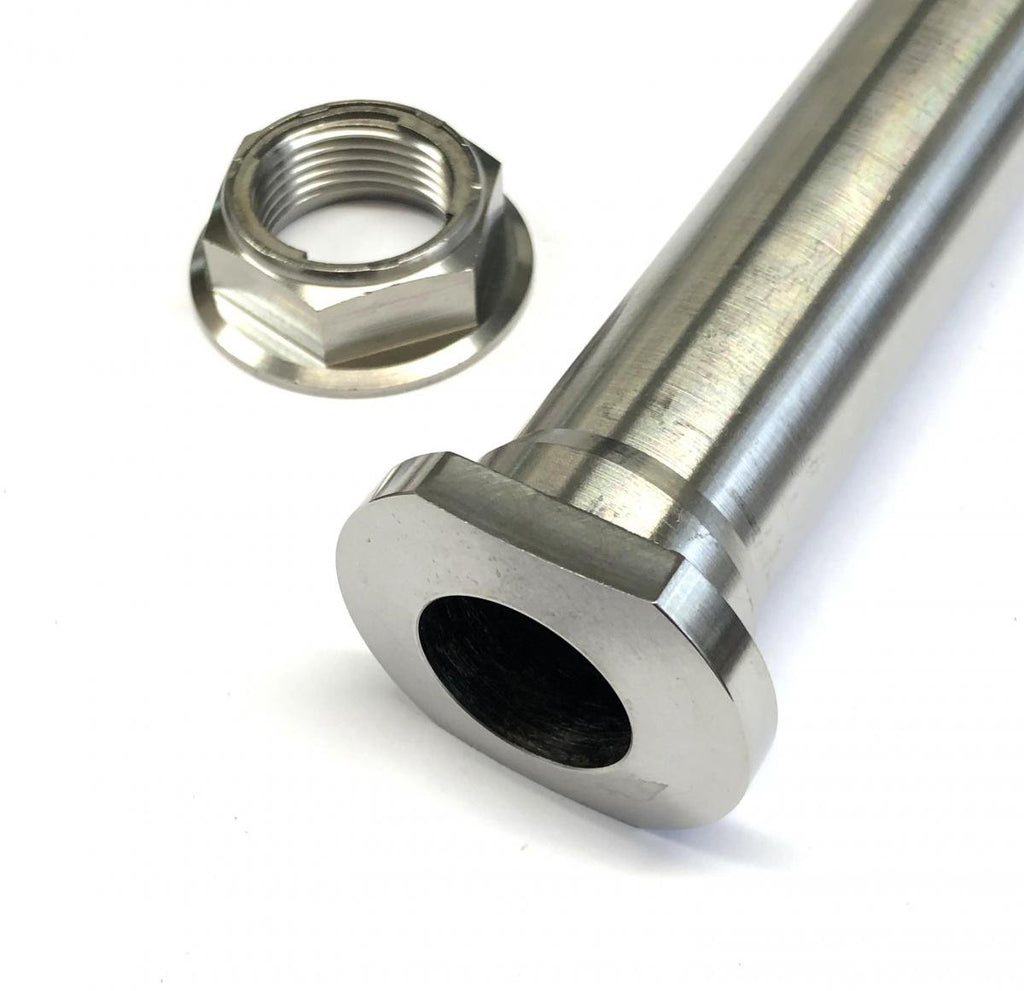

HONDA REAR SPINDLE & NUT M22x1.5, TITANIUM GRADE 5 / OEM REF: 42301-KRN-A30 & 90305-KZ4-J20

This Factory Image Racing Grade 5 titanium rear spindle and nut kit is designed for Honda rear wheel applications, replacing the standard rear spindle and nut on compatible models while retaining use with standard swinging arms and hubs. It is CNC-machined from aerospace-grade 6Al/4V titanium alloy to provide a high-strength, lightweight and corrosion-resistant alternative to standard steel hardware.

Features

• Replacement rear spindle and nut kit for compatible Honda motorcycles


• Designed for rear wheel, rear hub and swinging arm applications where specified


• Suitable for use with standard swinging arms and hubs


• CNC-machined construction


• Corrosion-resistant titanium construction helps prevent rusted hardware


• Designed as a lighter alternative to the standard steel OEM spindle


• Uses Grade 5 titanium alloy for high strength and light weight


• Brand: Factory Image Racing (08-9696.RW.KIT)

Specifications

• Material: Aerospace Grade 5 Titanium 6Al/4V


• Thread diameter: M22


• Thread pitch: 1.50 mm


• Overall length: 271.85 mm


• Nut hex size: 28 mm spanner fitment


• Kit contents: rear spindle and nut

Cross-Reference OEM Part Numbers

• Honda 42301-KRN-A30


• Honda 90305-KZ4-J20


• Honda 90305KZ4J20

Vehicle Fitments

Honda (Rear Wheel)

• CR125R (2000-2007)


• CR250R (2000-2007)


• CRF250R (2004-2018)


• CRF250X (2004-2009, 2012-2013, 2015-2017)


• CRF450R (2002-2018)


• CRF450RX (2017-2018)


• CRF450X (2005-2009, 2012-2017)


• CBR900RE (2001)


• CBR900RR (2000-2003)

Honda (Rear Wheel and Swingarm)

• RVT1000R (2000-2001)
