GR5 HONDA SWING ARM PIN & NUT, Ti-GR5 INSERT / M14x1.50mm / EACH, 52101-KZ4-J40 / 90305-KZ3-B01

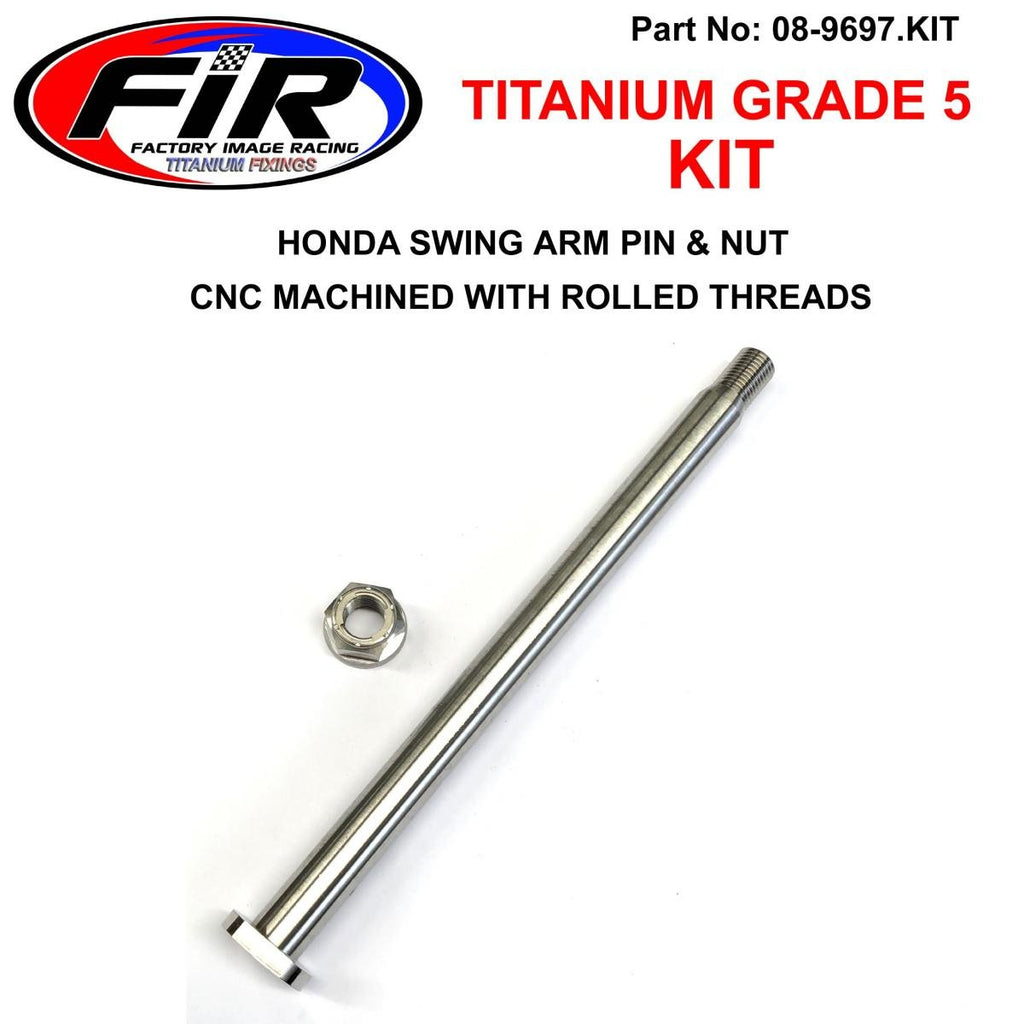

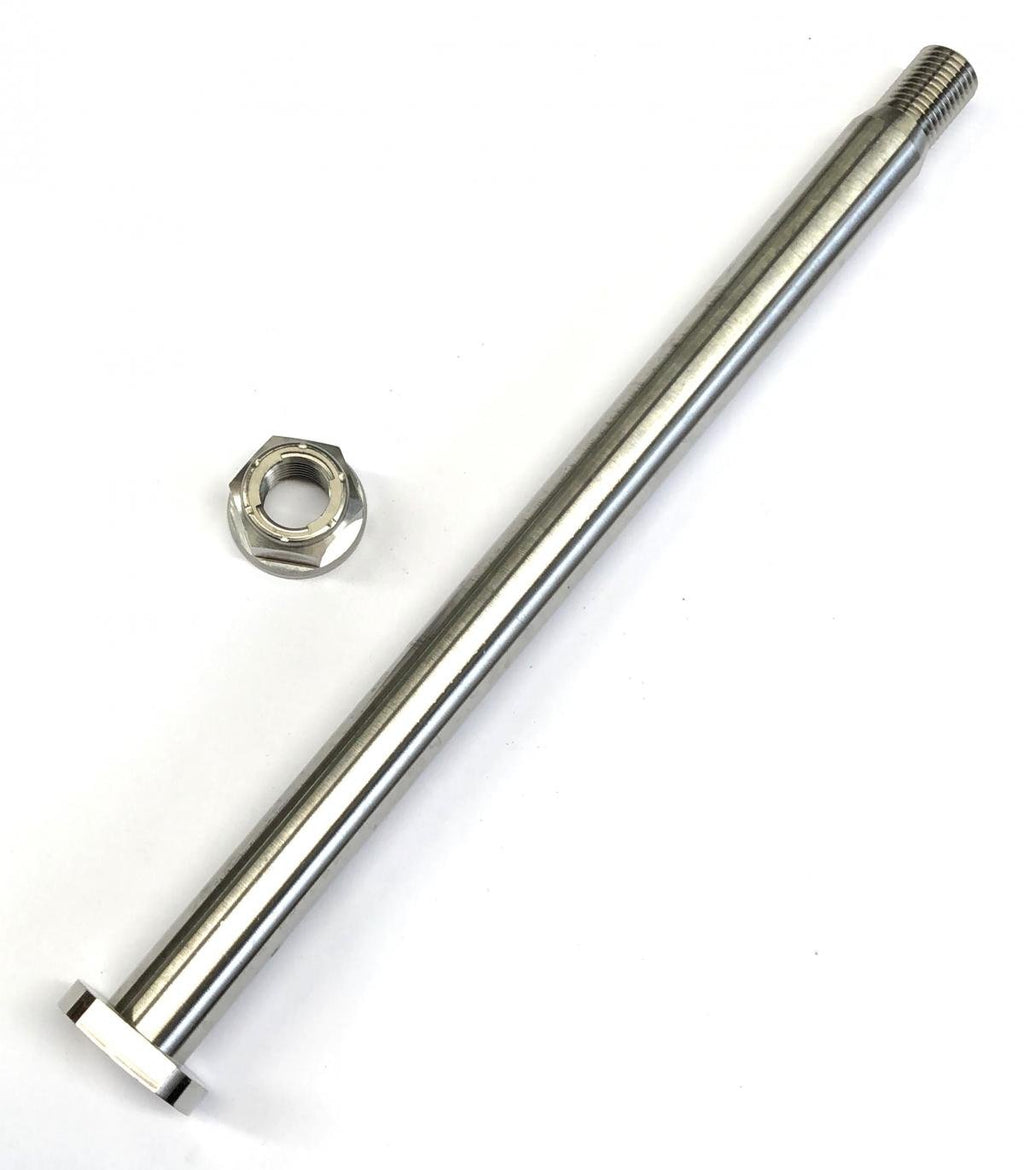

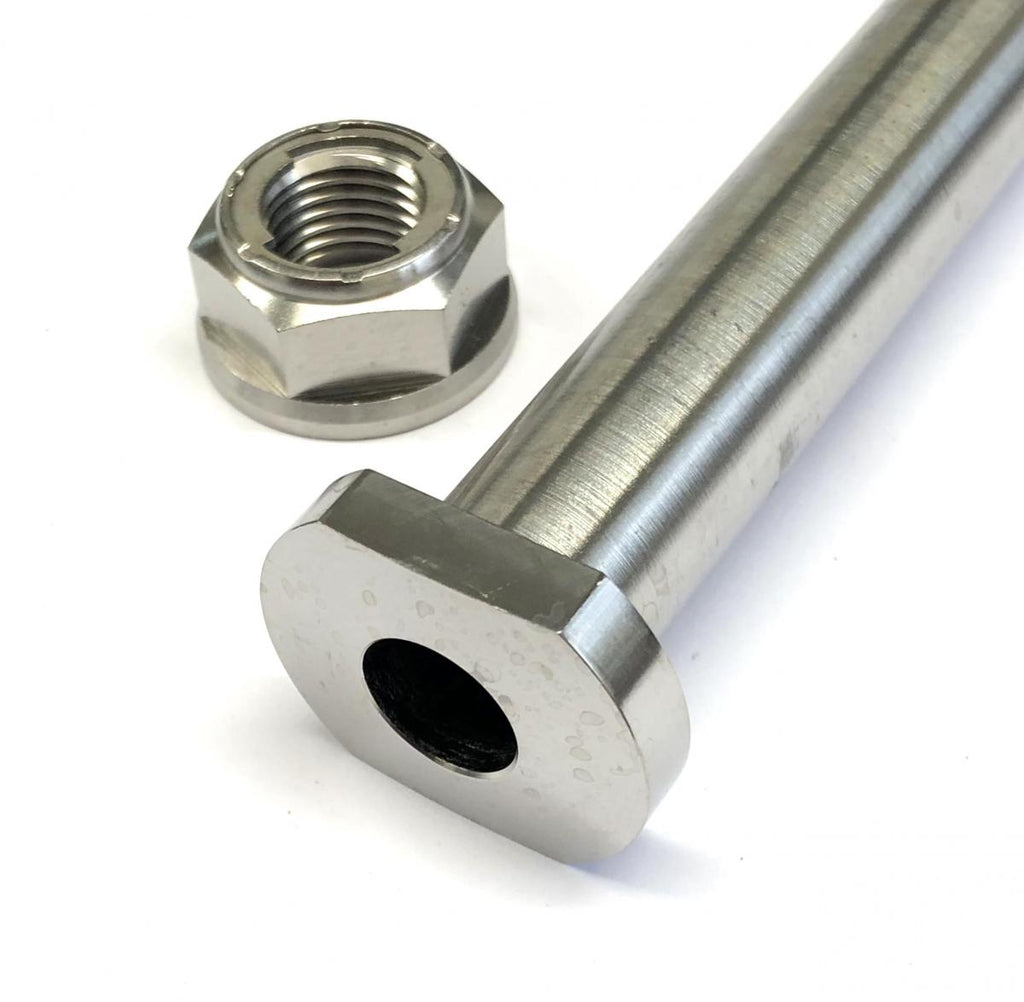

Factory Image Racing titanium Honda swing arm spindle and nut set for use as a replacement swing arm pivot fastening assembly on selected Honda CRF models. The set includes a Grade 5 titanium spindle and matching titanium locking flange nut, intended to replace the original steel swing arm spindle and nut while retaining the correct fitment and thread specification.

Features

• Replacement swing arm spindle and nut set for Honda CRF applications


• Provides a factory-style appearance


• Titanium spindle reduces weight compared with the original steel spindle


• Supplied as one spindle and one nut

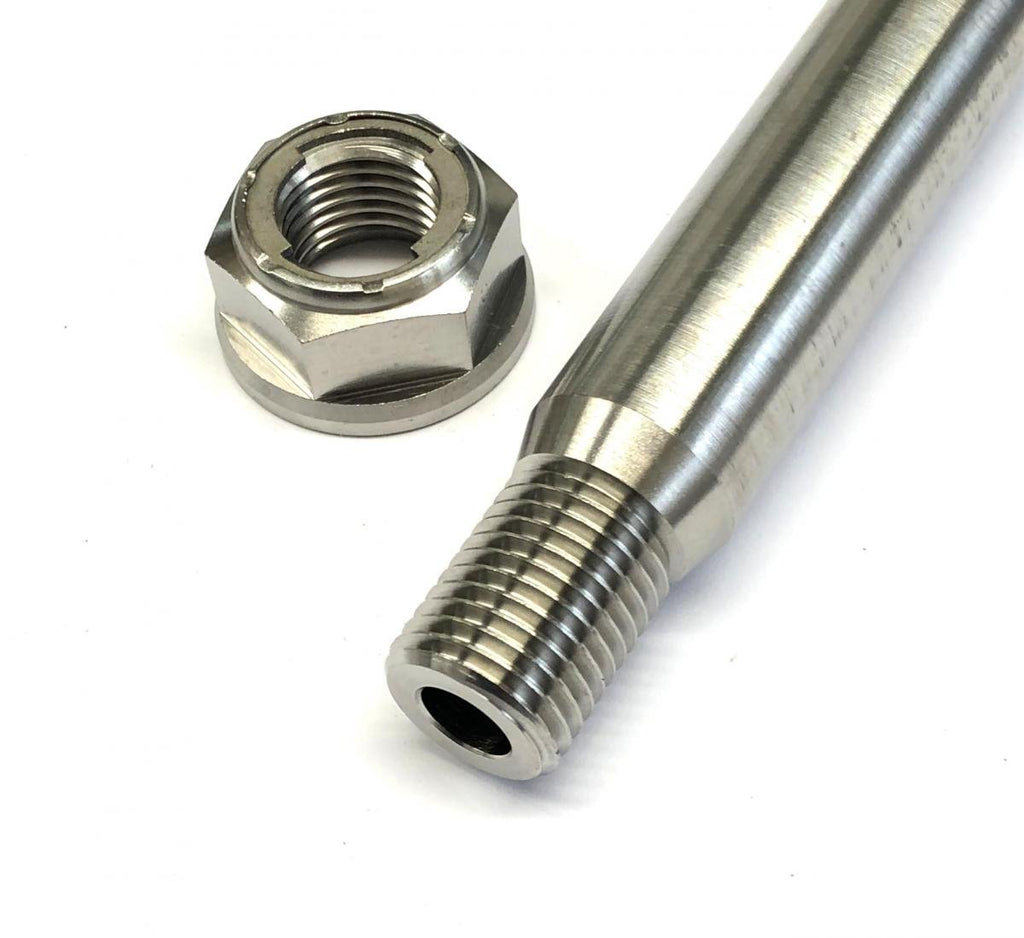

• Nut uses a titanium Grade 5 insert locking design


• Manufactured by Factory Image Racing


• Brand: Factory Image Racing (08-9697.KIT)

Specifications

• Spindle material: Grade 5 titanium (6Al/4V)


• Spindle thread pitch: M14 x 1.50


• Spindle outside diameter: 16.90 mm


• Spindle overall length: 246.80 mm


• Nut material: Grade 5 titanium (6Al/4V)


• Nut thread pitch: M14 x 1.50


• Nut height: 13.50 mm


• Nut flange outside diameter: 26.40 mm


• Nut hex size: 22 mm spanner

Cross-Reference OEM Part Numbers

• 52101-KZ4-J40


• 90305-KZ3-B01

Vehicle Fitments

Honda

• CRF250R (2020-2021)


• CRF250RX (2020-2021)


• CRF450L (2020)


• CRF450R (2020-2021)


• CRF450RL (2021)


• CRF450RWE (2020-2021)


• CRF450RX (2020-2021)


• CRF450X (2020-2021)
