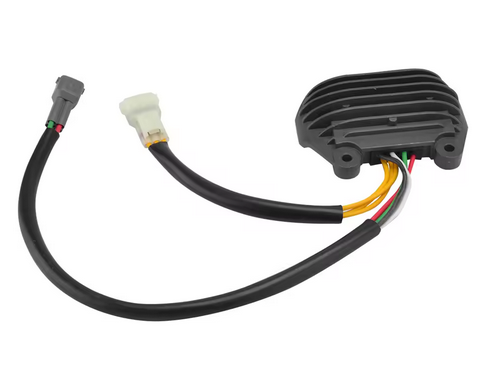

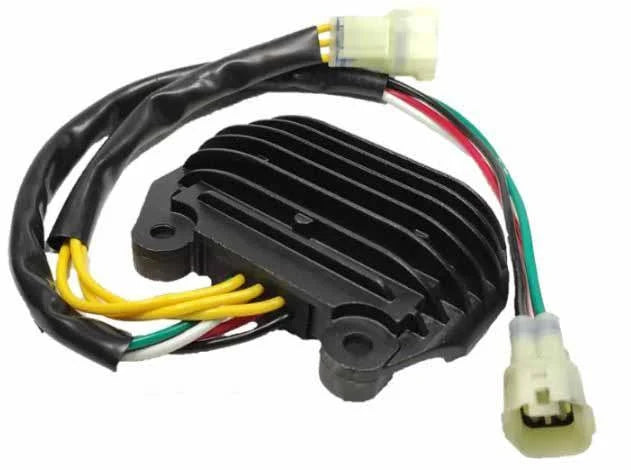

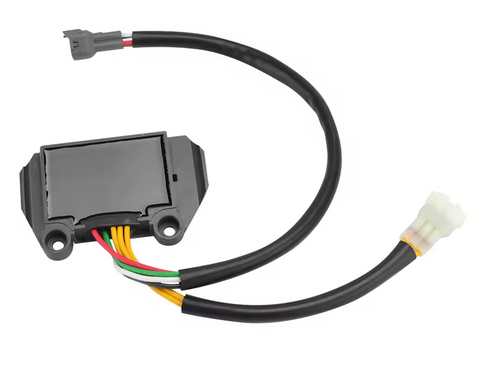

VOLTAGE REGULATOR KTM EXC 78111034000 SH830AA

A 12 V voltage regulator/rectifier intended as a direct OEM-style replacement. Built to OEM specifications with stock mounting geometry and designed to handle increased electrical loads, it supports stable charging performance on the listed models.

Features

• Meets or exceeds OEM quality


• Direct OEM replacement


• Uses stock mounting locations


• Designed to handle increased power loads


• All units are made to OEM specifications and match original appearance


• 100% factory tested prior to shipping


• Electrical components are non-returnable and carry no warranty


• Please check the image before ordering to avoid mistakes


• Note: No returns on electrical parts

Specifications

• Type: Voltage regulator/rectifier


• Operating voltage: 12 V


• Dimensions: 115 mm × 74 mm × 29 mm


• Mounting holes: 6.9 mm diameter, 67.5 mm centre-to-centre


• Recess: 12.5 mm underneath


• Colour: Black


• Harness leads: (3) yellow charging-coil wires, 11 inches long

Cross-Reference OEM Part Numbers

• 78111034000


• R2049.1


• SH830AA


• AKM6003


• SM-01118


• 20-5370


• 21066-1127


• 5BN-81960-00-00


• 4XY-81960-00-00


• 6D3-81960-00-00


• SH678A-12


• 5VX-8196-00-00


• 4JH-8196-01-00


• 68V-81960


• 6D3-81960


• 68V-81960-00


• 4XY-81960-00


• 21066-0030


• 5BN-81960-00


• SH678-11


• SH678B


• SH678KA

Vehicle Fitments

• KTM 250 EXC-F (2012–2015) 249 cc


• KTM 250 EXC-F Six Days (2012–2015) 249 cc


• KTM 250 XCF-W (2012–2015) 249 cc


• KTM 350 EXC-F (2012–2015) 350 cc


• KTM 350 EXC-F Six Days (2012–2015) 350 cc


• KTM 350 XC-FW (2012–2015) 350 cc


• KTM 450 EXC (2012–2015) 449 cc


• KTM 450 EXC Six Days (2012–2015) 449 cc


• KTM 450 Rally Replica (2014–2015) 449 cc


• KTM 450 XC-W (2012–2015) 449 cc


• KTM 500 EXC (2012–2015) 510 cc


• KTM 500 EXC Six Days (2012–2015) 510 cc


• KTM 500 XC-W (2012–2015) 510 cc


• KTM Freeride 350 (2012–2015) 350 cc


• 2012 250 XCF-W – Wiring Harness


• 2012 350 EXC-F – Wiring Harness


• 2012 350 XCF-W – Wiring Harness


• 2012 450 XC-W – Wiring Harness


• 2012 500 EXC – Wiring Harness


• 2012 500 XC-W – Wiring Harness


• 2013 250 XCF-W – Wiring Harness


• 2013 350 EXC-F – Wiring Harness


• 2013 350 XCF-W – Wiring Harness


• 2013 450 XC-W – Wiring Harness


• 2013 500 EXC – Wiring Harness


• 2013 500 XC-W – Wiring Harness


• 2013 FE 250 – Wiring Harness


• 2013 FE 350 – Wiring Harness


• 2013 FE 501 – Wiring Harness


• 2014 250 XCF-W – Wiring Harness


• 2014 350 EXC-F – Wiring Harness


• 2014 350 XCF-W – Wiring Harness


• 2014 350 XCF-W Six Days – Wiring Harness


• 2014 450 XC-W – Wiring Harness


• 2014 500 EXC – Wiring Harness


• 2014 500 XC-W – Wiring Harness


• 2015 250 XCF-W – Wiring Harness


• 2015 350 EXC-F – Wiring Harness


• 2015 350 XCF-W – Wiring Harness


• 2015 350 XCF-W Six Days – Wiring Harness


• 2015 450 XC-W – Wiring Harness


• 2015 500 EXC – Wiring Harness


• 2015 500 XC-W – Wiring Harness


• 2016 250 XCF-W – Wiring Harness


• 2016 350 EXC-F – Wiring Harness


• 2016 350 XCF-W – Wiring Harness


• 2016 350 XCF-W Six Days – Wiring Harness


• 2016 450 XC-W – Wiring Harness


• 2016 500 EXC – Wiring Harness


• 2016 500 EXC Six Days – Wiring Harness


• 2016 500 XC-W – Wiring Harness
