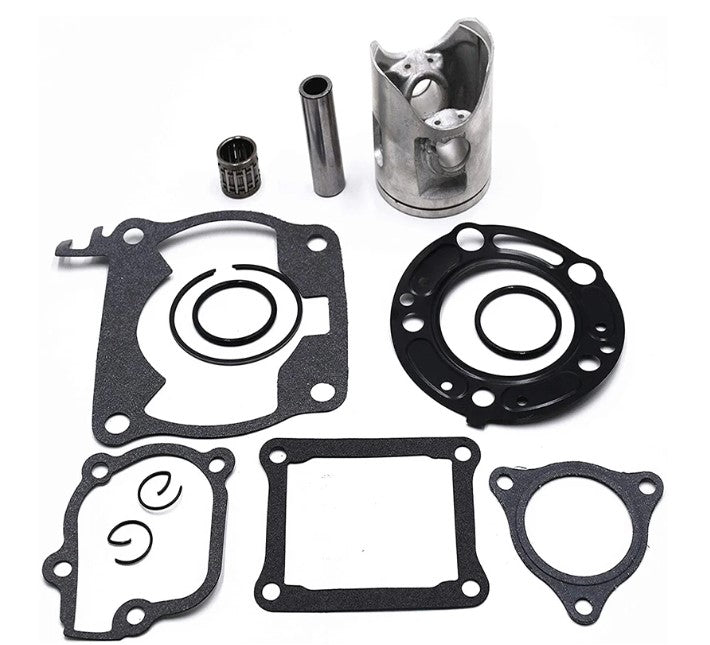

TOP END REBUILD KIT STD BORE 00-02 HONDA CR 125 PISTON GASKETS BEARING

This top end kit is designed for Honda CR125 models and provides the main components required for a standard bore top end rebuild. The kit includes a piston assembly, top end gasket set and piston pin bearing, allowing worn top end parts to be replaced as direct OEM-style replacements during engine servicing or rebuild work.

Features

• Includes standard bore piston kit with piston, rings, wrist pin and circlips


• Includes top end gasket kit with powervalve gaskets


• Includes piston pin bearing


• Manufactured to exacting standards for confident engine rebuilding


• Meets or exceeds OEM quality


• Designed for reliability and performance using high-tech materials


• Image should be checked before ordering to avoid selection errors


• Supplied as a value-focused replacement kit


• Suitable for straightforward installation


• Professional fitting is recommended if installation is uncertain

Specifications

• Piston size: 53.94 mm


• Bore size: 54.00 mm


• Piston clip size: 15 mm

Cross-Reference OEM Part Numbers

• Piston A: 13110-KZ4-A90, 13120-KZ4-A90


• Piston pin: 13111-KV3-000, 13111-KZ4-000, 13111-KV3-000


• Piston ring T 1.0: 13121-KZ4-A91


• Piston pin clip 15 mm: 94601-15000


• Cylinder head gasket: 12251-KZ4-A91


• Cylinder gasket: 12191-KZ4-L10


• Exhaust joint gasket: 18291-KZ4-700


• Right cylinder cover gasket: 12108-KZ4-A90


• Reed valve gasket: 14132-KZ4-620

Vehicle Fitments

• Honda CR125 2000


• Honda CR125 2001


• Honda CR125 2002
