TOP END PISTON KIT 83-83 HONDA CR 250 67.5mm 1.5mm OVER VINTCO KTH23-1.5
TOP END PISTON KIT 83-83 HONDA CR 250 67.5mm 1.5mm OVER VINTCO KTH23-1.5

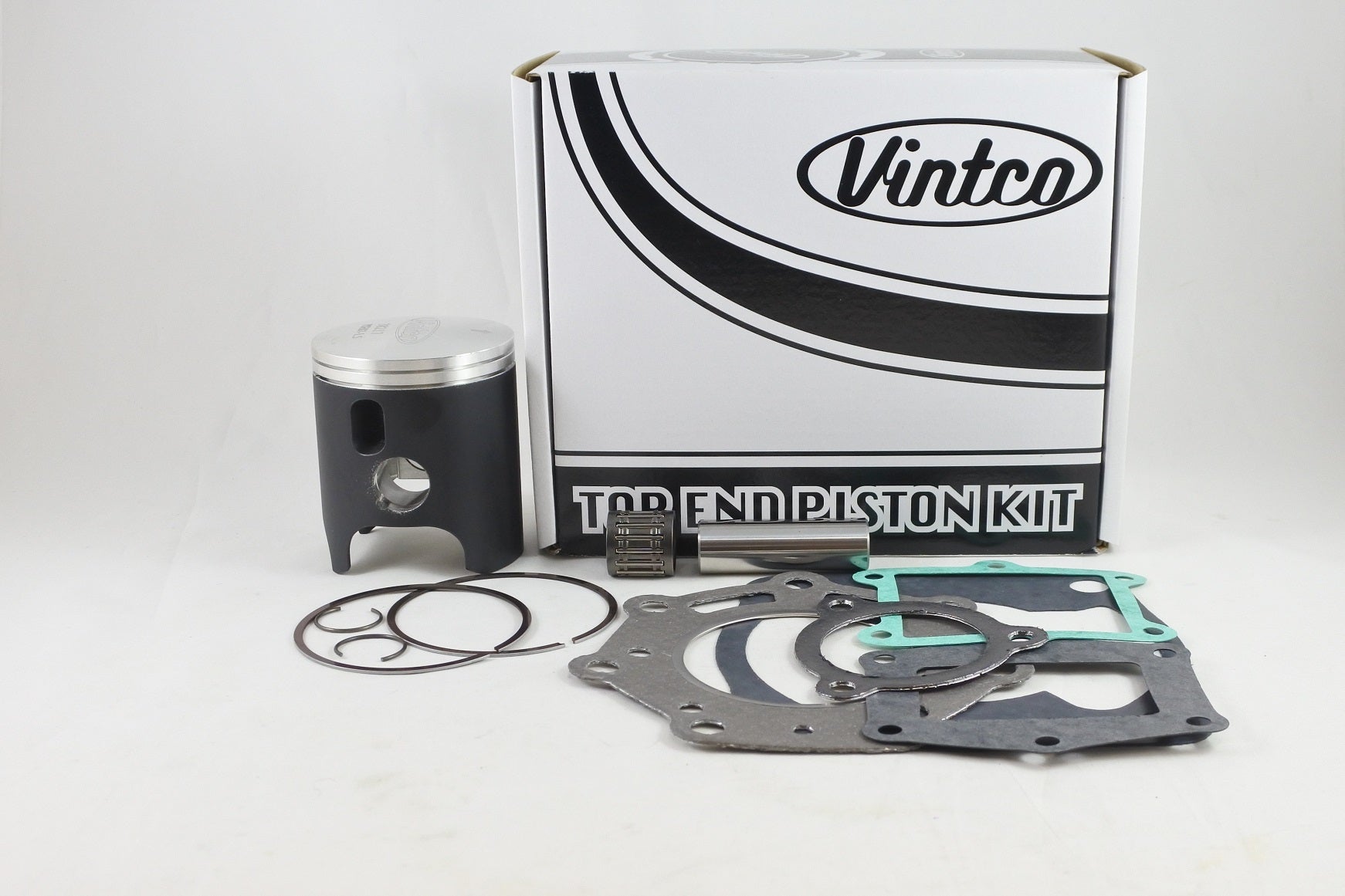

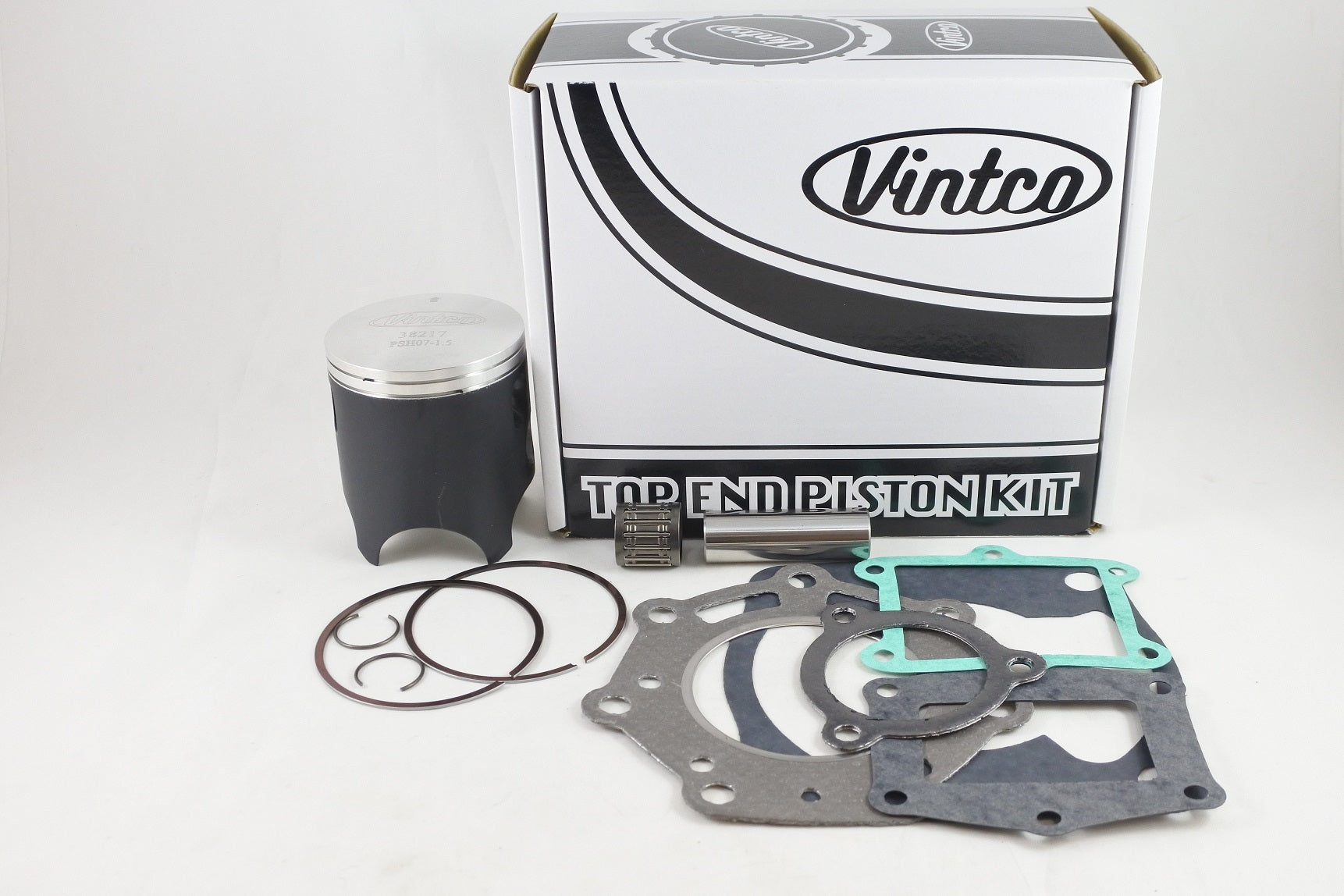

This top end piston kit is designed for the 1983 Honda CR250 and provides the components required for a complete top end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. It is intended to provide OEM-equivalent fitment and performance using modern manufacturing methods, with OEM part number cross-references supplied for fitment verification. Kit pricing offers a 10% saving compared with purchasing the components individually, and additional size options are available.
Features
- Complete top end rebuild kit
- Includes piston, rings, pin and clips
- Includes wrist pin bearing
- Includes full top-end gasket kit
- Supplied with head gasket
- Supplied with base gasket
- Supplied with intake gaskets
- Supplied with exhaust pipe gasket
- OEM part number cross-reference included for fitment verification
- Kit pricing includes a 10% saving over individual items
- Additional size options available
Specifications
- VintCo Part Number: KTH23-1.5
- Piston diameter: 67.44 mm
- Oversize: +1.5 mm
- Piston clearance: 0.06 mm
- Piston construction: Forged
- Piston coating: MOS2
- Country of manufacture: Germany
Cross-Reference OEM Part Numbers
- Head gasket: 12254-KA4-307
- Base gasket: 12191-KA4-306
- Intake gasket: 14132-KAE-000
- Intake gasket: 14133-430-306
- Exhaust pipe gasket: 18291-430-306
Vehicle Fitments
- 1983 Honda CR250
