TOP END PISTON KIT 77-77 SUZUKI RM 80 50.00mm 1.0mm OVER VINTCO KTS11-1.0

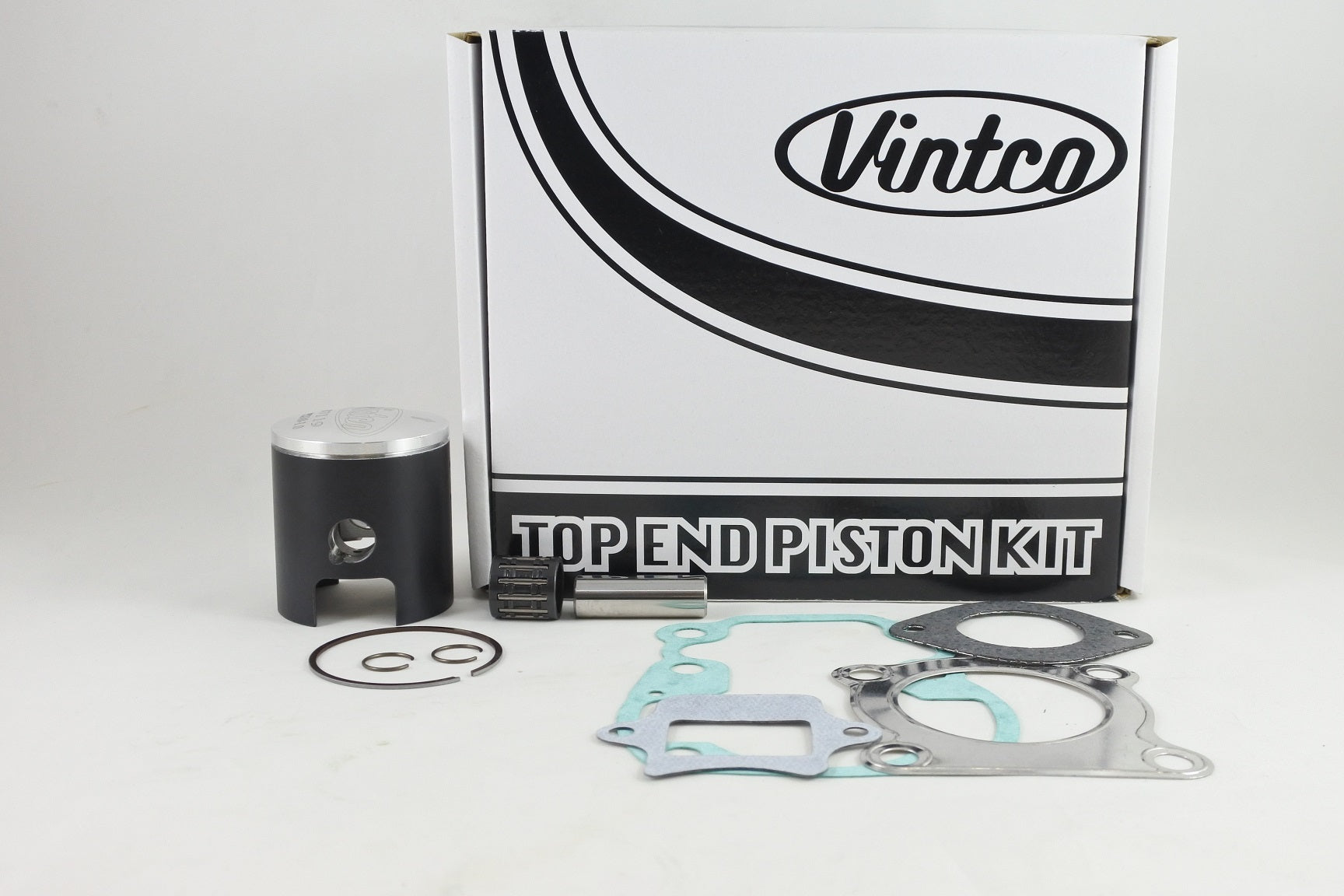

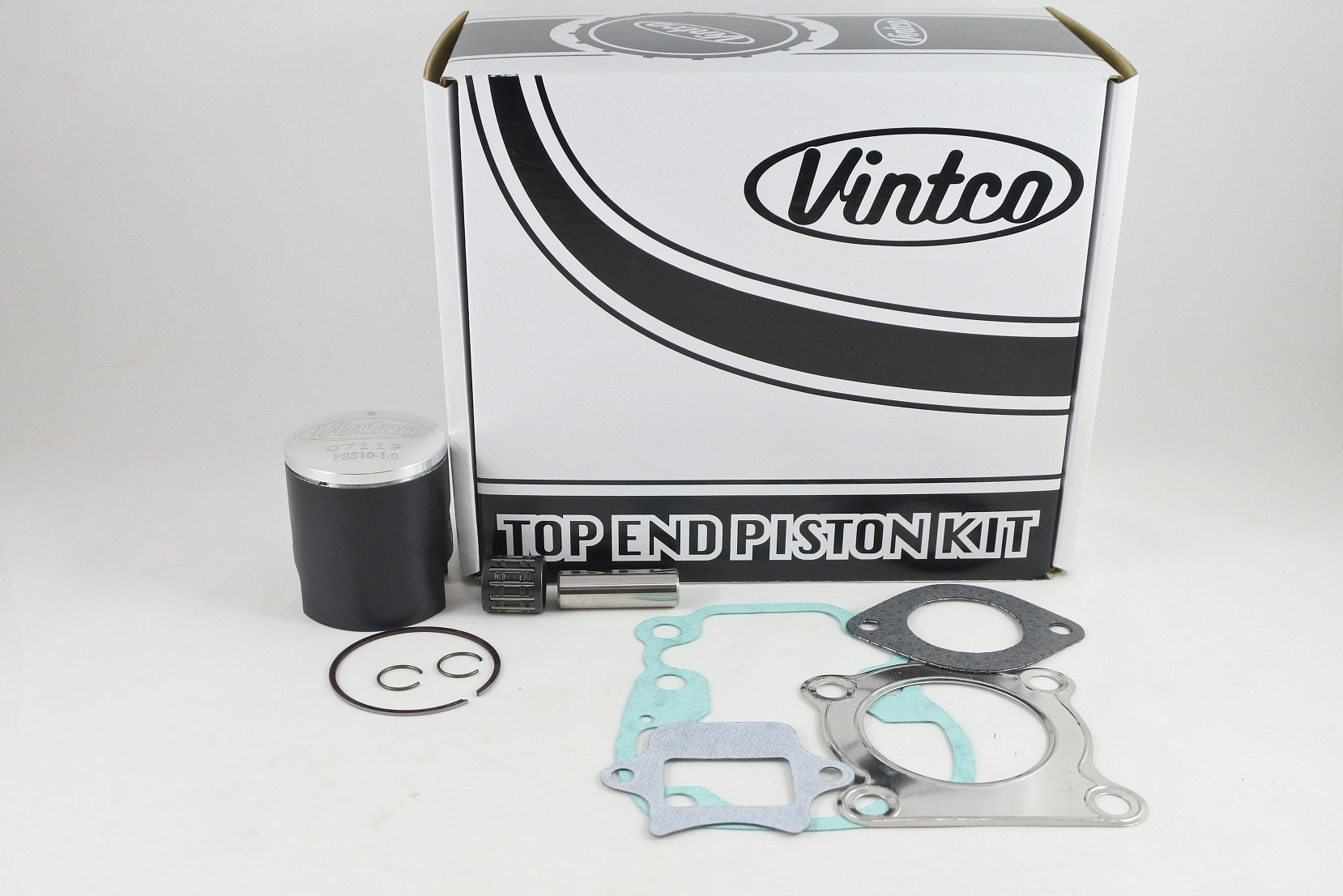

VintCo KTS11-1.0 is a complete top end piston kit for the 1977 Suzuki RM80, supplied for a 1.0 mm overbore rebuild. The kit includes a forged piston with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Manufactured with modern materials and production methods, it is intended to provide OEM-equivalent or better fit and performance while simplifying a top end rebuild.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gasket
• Supplied with exhaust pipe gasket
• Forged piston with German MoS2 coating for break-in
• Designed for OEM-equivalent or better fit and performance
• Kit price reflects a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS11-1.0
• Product category: Top End Piston Kits
• Nominal size: 50.00 mm
• Piston size: 49.95 mm
• Oversize: +1.0 mm
• Clearance: 0.05 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-46082
• Base gasket: 11241-46010
• Intake gasket: 13156-46001-H17
• Exhaust pipe gasket: 14181-46001-H17

Vehicle Fitments

• 1977 Suzuki RM80
