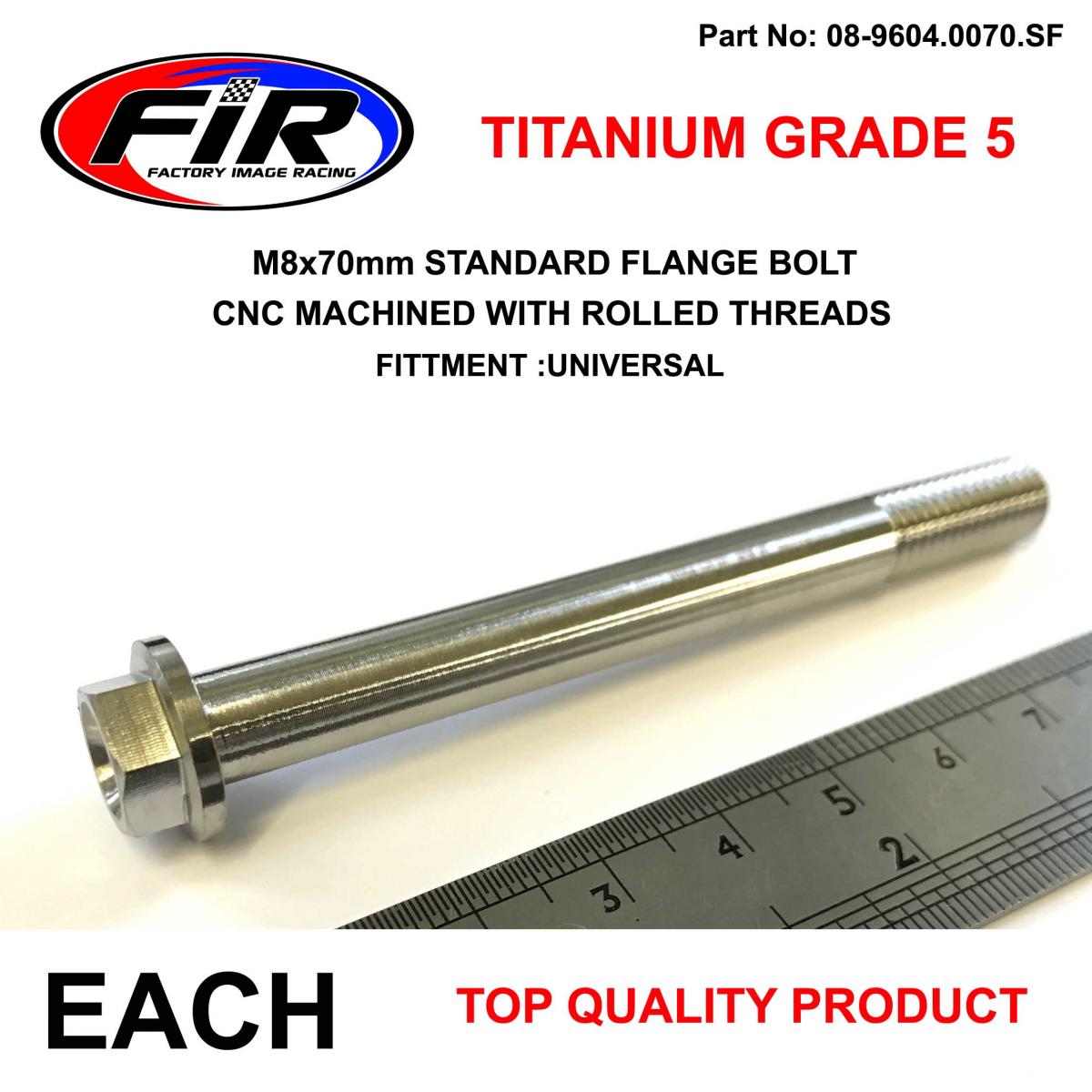

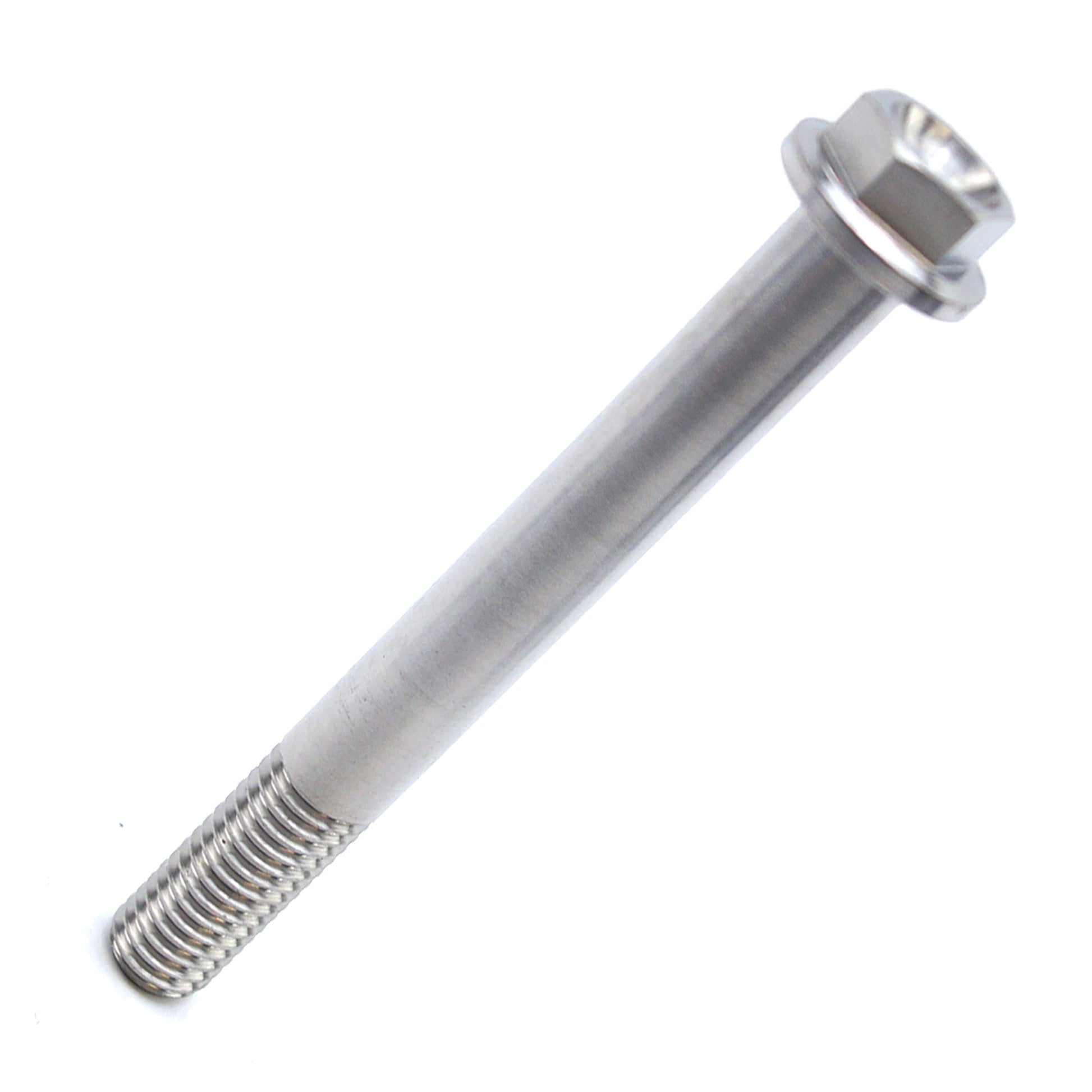

TITANIUM GR5 BOLT M8 x 70mm EACH, FLANGE OD: 14mm / HEX SIZE: 10mm, /

TITANIUM GRADE 5 (SF) STANDARD FLANGE BOLT

• M8X70mm
• Material: Grade 5 (6Al/4V)
• Thread D :   M8

• Pitch P :   1.25mm
• Overall length L   70mm
• Thread length : 20mm

• Head HEX: 10mm spanner
• Flange OD:14mm Standard

Cnc machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

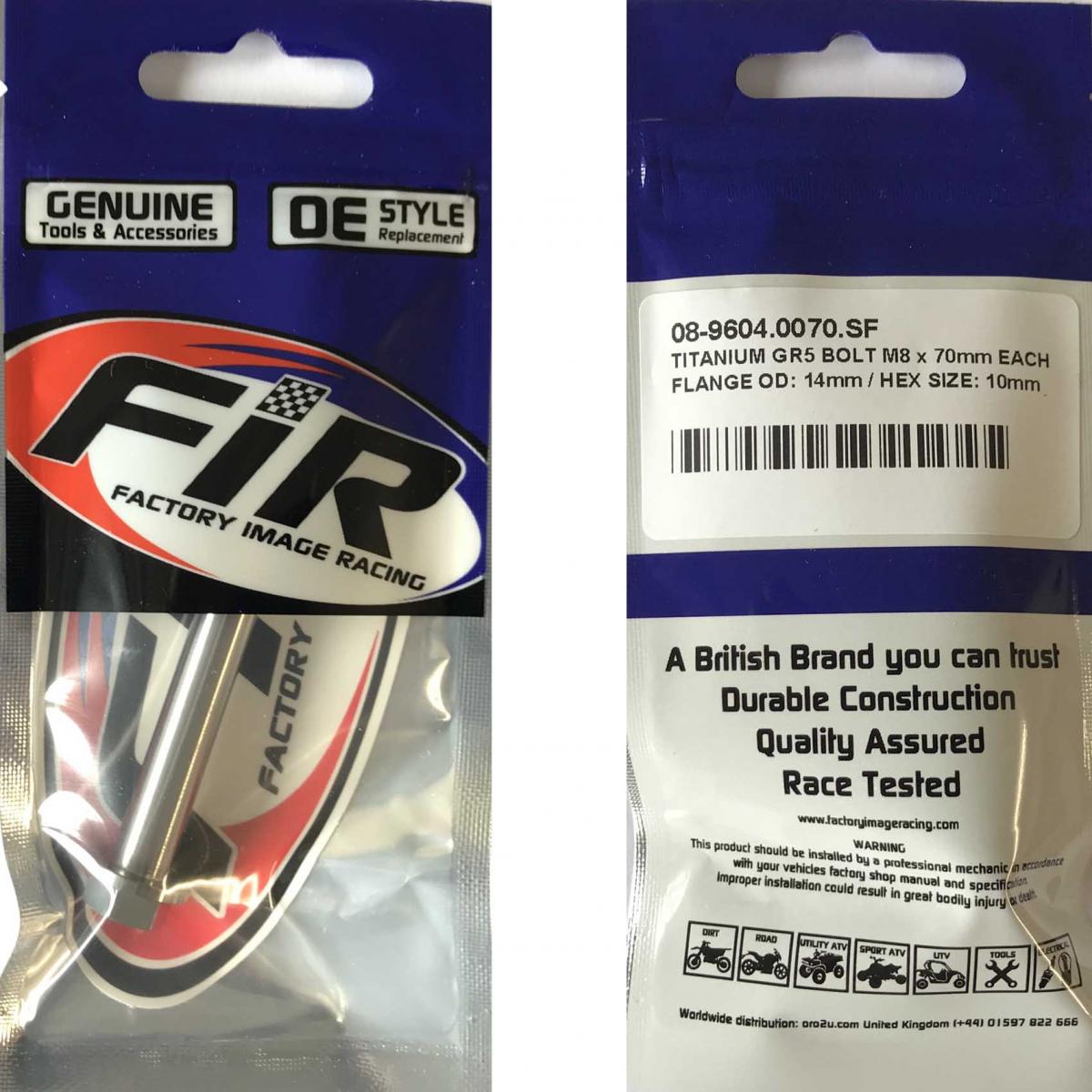

Part No. 08-9604.0070.SF (oro2u.com)

Cross reference numbers >
