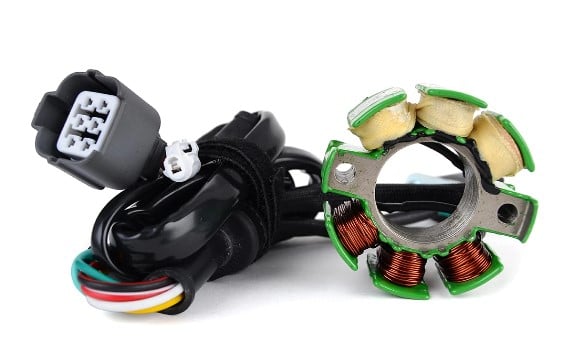

STATOR COIL 2004-2010 KAWASAKI KX250F 2005-2006 SUZUKI RM-Z 250 21003-0015 K2100-30027

Stator coil replacement component designed to deliver efficient electrical performance and reliability. Manufactured to exacting standards, it uses stock mounting points for straightforward fitting and is built to handle increased power loads while matching OEM specifications for seamless integration.

Features

• Direct OEM replacement for seamless installation


• Manufactured to exacting standards for reliability and durability


• Designed to handle increased power loads


• Stock mounting locations for easy fitting

Specifications

• Interior diameter: 28 mm


• Exterior diameter: 58 mm


• Thickness: 16 mm


• Stator to grommet wire length: 100 mm


• Grommet to plug wire length: 375 mm


• Pickup coil to grommet wire length: 80 mm


• Number of wires: 7


• Number of plugs: 3


• Number of pins: 7


• Wire-to-wire resistance (alternator): White to Yellow = 3.0 Ω ±20%


• Wire-to-wire resistance (pickup): Green to Blue/White = 120 Ω ±20%


• Wire-to-wire resistance (source): White/Red to Black/Red = 38 Ω ±20%

Cross-Reference OEM Part Numbers

• 21003-0015


• 21003-0027


• 21003-0048


• 21003-0091


• K2100-30015


• K2100-30027


• K2100-30048

Vehicle Fitments

• Kawasaki KX250F (2004–2010)


• Suzuki RM-Z250 (2005–2006)
