STATOR COIL 88-00 HONDA TRX FOURTRAX 2X4 4X4 300 18 POLES 31120-HC4-003 31120-HC4-750

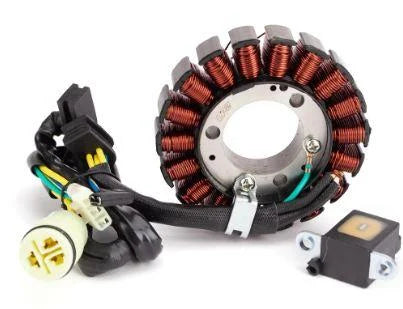

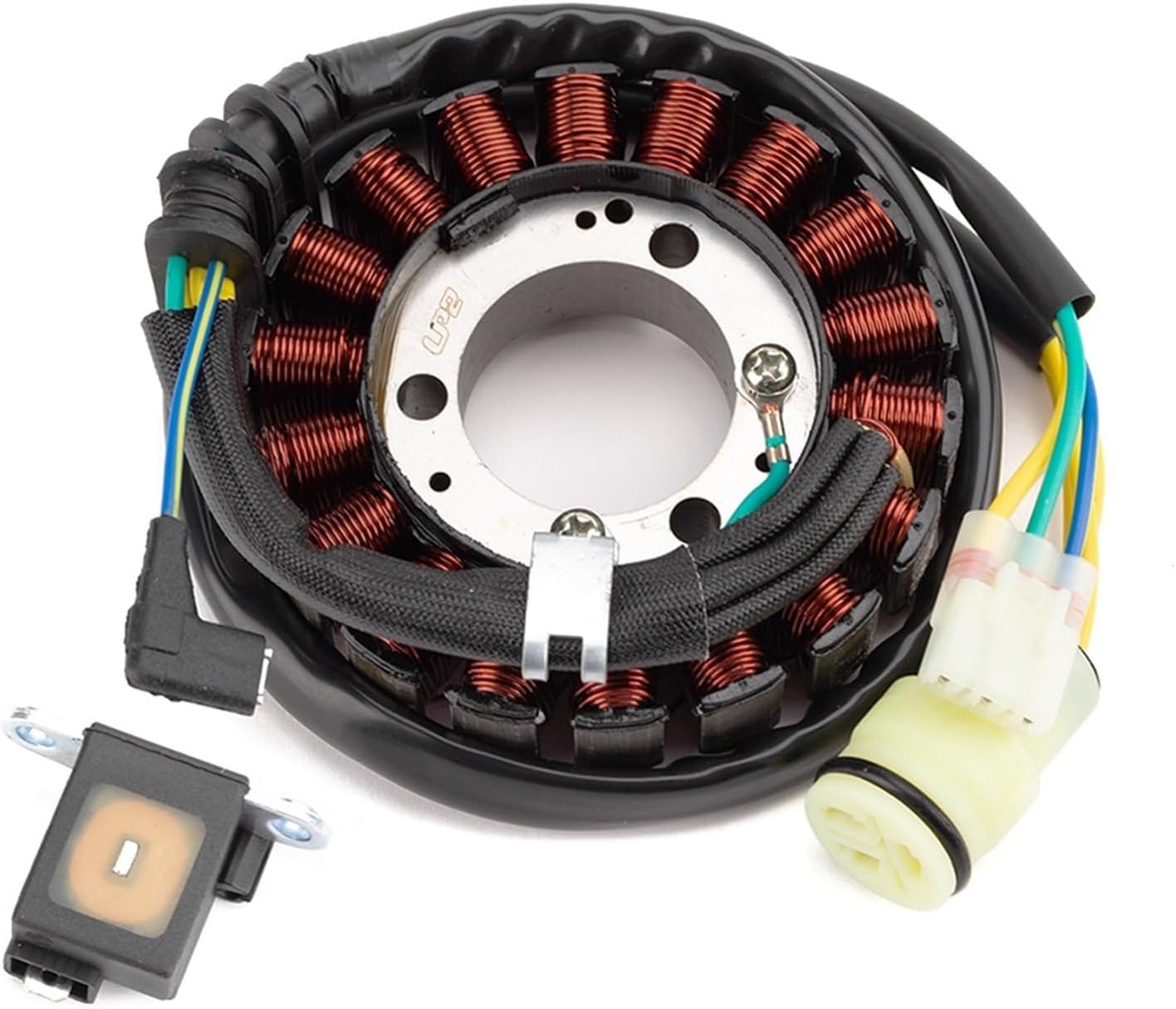

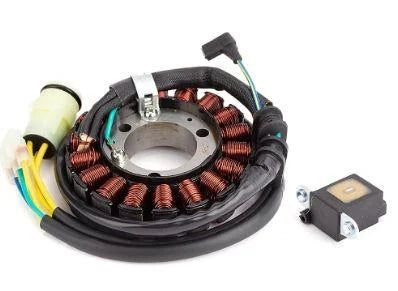

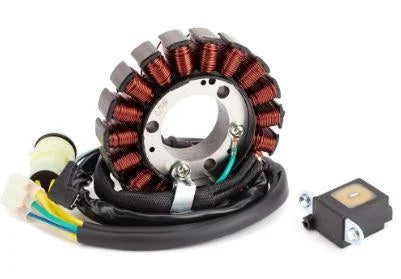

This 18-pole 12 V Mitsuba-type stator coil is a direct OEM-style replacement for Honda TRX300 FourTrax models, designed to replace the original stator while fitting the factory mounting points and matching the original appearance. It is intended for the 18-pole stator version only and should be checked against the removed unit before ordering.

Features

• Direct OEM replacement


• Meets or exceeds OEM quality


• Designed to fit stock mounting locations


• Engineered to handle increased electrical loads


• Manufactured to OEM specifications


• Matches the original appearance


• All electrical parts are factory tested before dispatch


• Easy to install; professional assistance is recommended if unsure


• Intended as a cost-effective replacement

Specifications

• Stator coil voltage: 12 V


• Version: Mitsuba type


• Poles: 18


• Outer diameter: 92 mm


• Inner diameter: 35 mm


• Core thickness: 16 mm

Cross-Reference OEM Part Numbers

• 31120-HC4-003


• 31120-HC4-750

Vehicle Fitments

• Honda TRX300 FourTrax 2×4, 1988–2000


• Honda TRX300FW FourTrax 4×4, 1988–2000

Notes

• This replacement is designed only for the 18-pole type and will not fit the 12-pole version


• The stator should be removed and the pole count verified before ordering


• The product image should be checked before ordering to avoid mistakes


•


  No returns on electrical parts
