SPOKE SET 21x36 CR/MTX, CROSS CENTER 50-0834

HONDA

• CR 80 R 85-86 (High Wheel)


• MTX 50 82-85


• MTX 80 82-84


• MTX 125 1983


• MTX 200 1983


• TLR 200 86-87


• TLR 200 Reflex 86-87


• XL 125 R 1982


• XL 200 R 83-84


• XR 200 R 1983

For 21-inch front wheel with hub 44601-KB9-000 replaced by 44601-KB9-010 replaced by 44601-GM7-640 and 44601-GJ1-000.

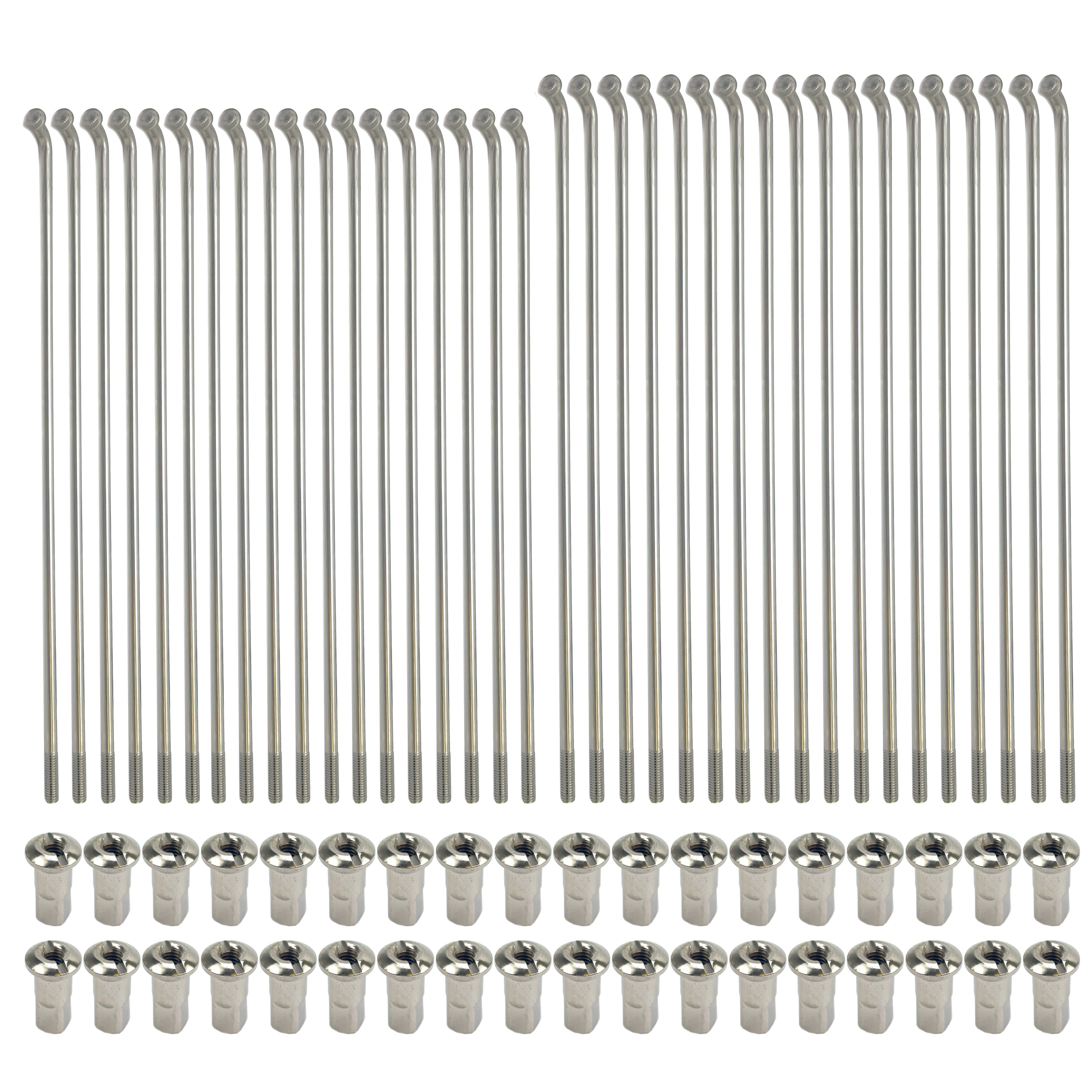

This spoke set has 36 spokes with spoke nipples.

Spoke size: 9 spokes of 3.6x201,5 mm. Left outer spoke.

OEM Ref. 446C0-KB9-000, 446C0-KG1-000 446C0-KA2-770.

Spoke size: 9 spokes of 3.6x203,5 mm. Left inner spoke.

OEM Ref. 446B0-KB9-000, 446B0-KG1-000 and 446B0-KA2-770.

Spoke size: 18 spokes of 3.6x240 mm. Right spoke.

OEM Ref. 446A0-KB9-000, 446A0-KG1-000 and 446A0-KA2-770.

Nipple size: 6,5x20 mm. (9G/250)

If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
