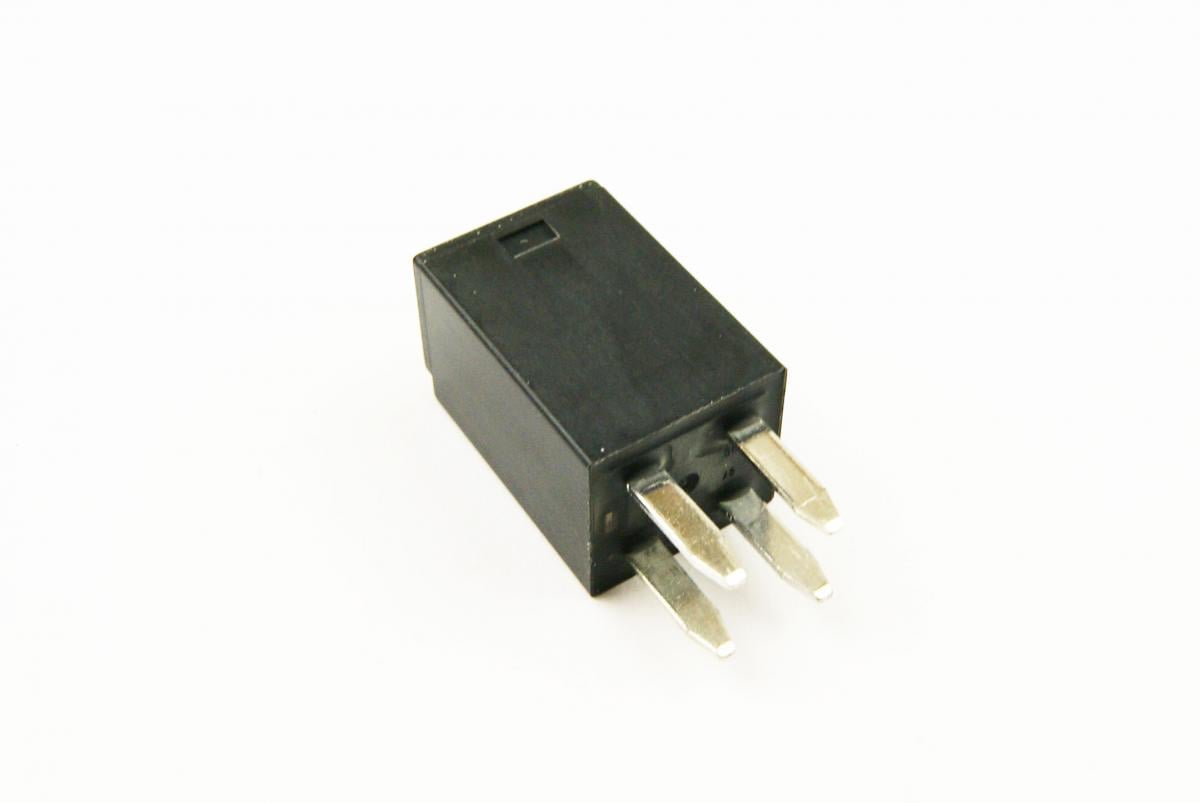

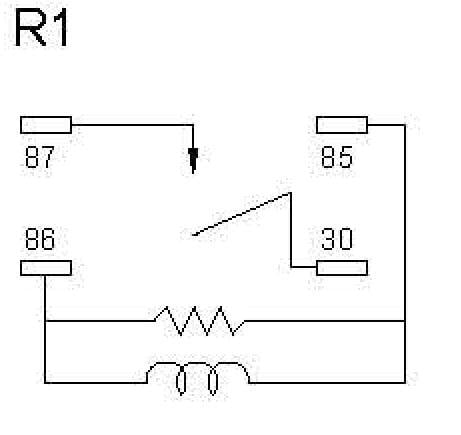

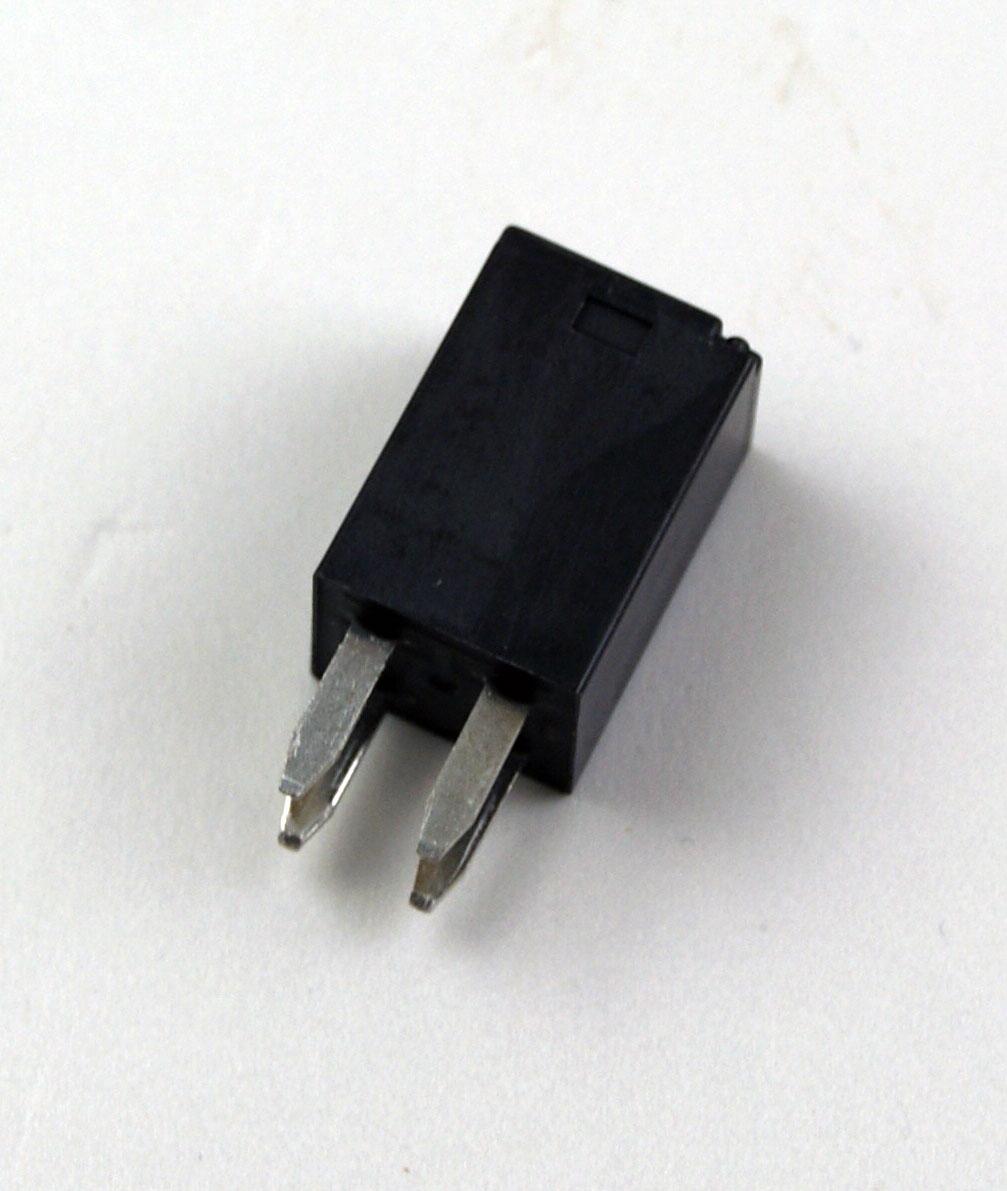

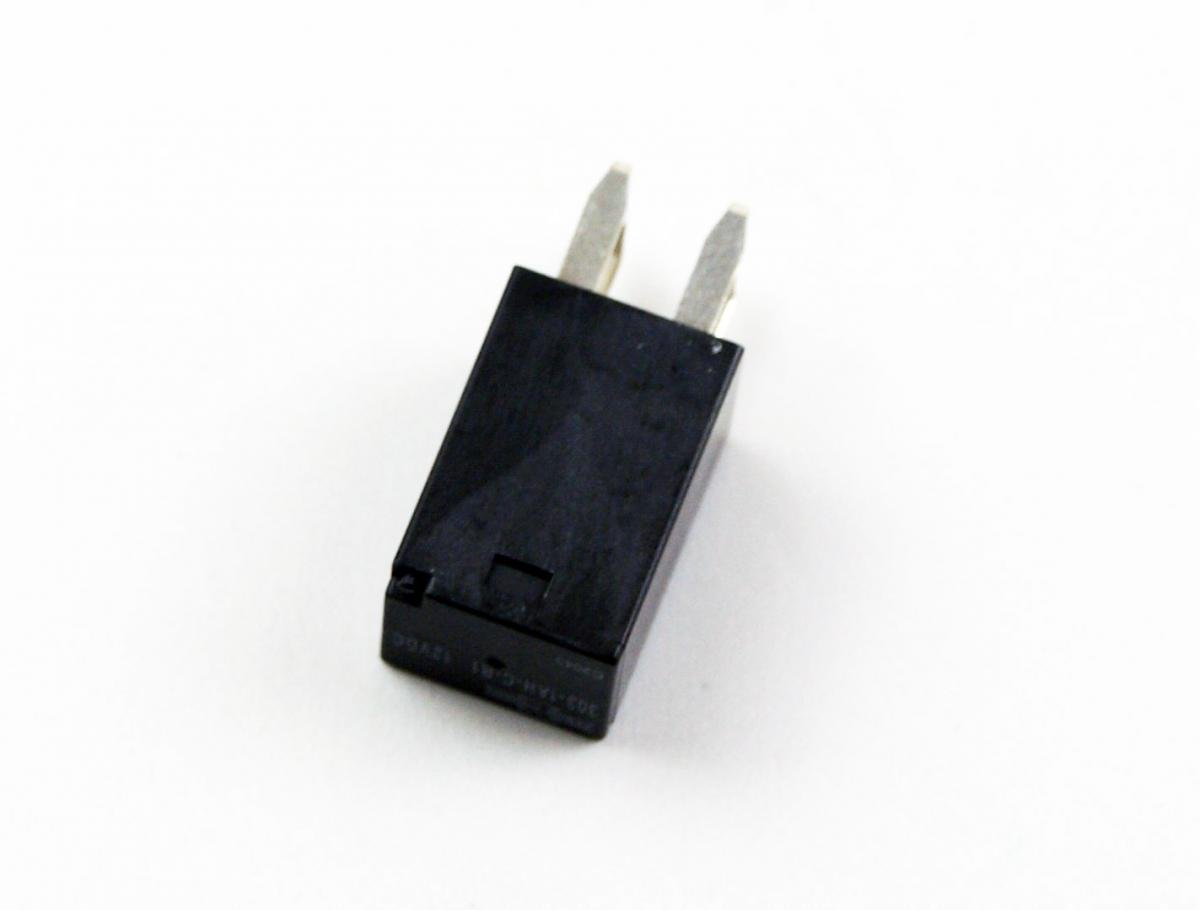

4 terminal single pole single throw relay with resistor. Very nice quality with a much higher working temperature than most. 257 degrees F. Rated for 20 amps normally open. 2.8mm wide terminals.12 volt coil. Used by many OEM's around the world.
Technical information
Voltage (voltage)
12. [V]
Type
ELEC.RELAY
# terminals (# terminals)
4
Clamp
NO
Load
SIZE

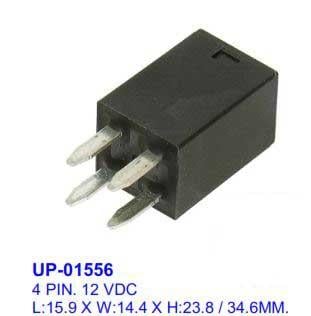

L:15.9 X W:14.4 X H:23.8 / 34.6MM.
Apply to
Brand
Model
Version
Displacement
Year
OEM code
HONDA
See Below
YAMAHA
See Below
KAWASAKI
See Below
SUZUKI
See Below
APRILLIA
See Below
- Meets or exceeds OEM quality. - Direct oem replacement. - All products are factory tested for 100% reliability at point of sale - Designed to handle increased power loads. - FIR Racing products are a high quality replacement part and carries our guarantee of your satisfaction. - Note. No Returns on Electrical Parts. - Please see image before ordering to avoid mistakes.
