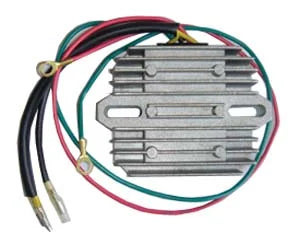

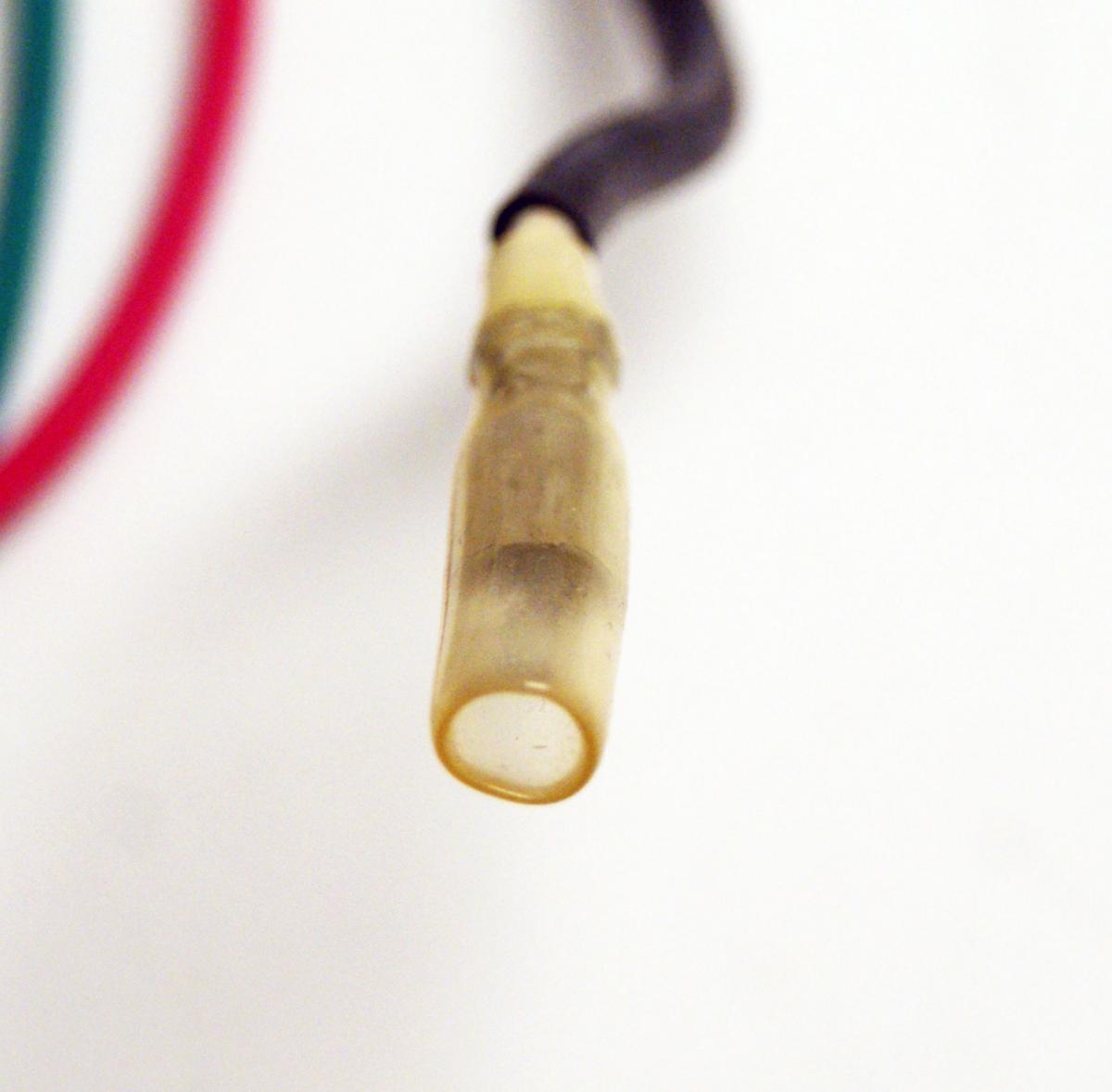

REGULATOR VOLTAGE 12v / 35A, DZE 02309-04 DUCATI, LAVERDA, MOTO GUZZI

This motorcycle voltage regulator is a replacement charging-system component for the listed Ducati models. It regulates and rectifies single-phase alternator output to provide DC power for the battery and electrical system. Its electrical rating and mounting dimensions should be checked against the original unit before fitting.

Features

• Direct replacement for compatible original regulators.

Specifications

• Rated voltage: 12 V


• Rated current: 35 A


• Input: single-phase AC


• Output: DC


• Technology: SCR


• Dimensions: 28 mm high × 80 mm wide × 107 mm long


• Mounting hole centre spacing: 74 mm


• Sensor: none

Cross-Reference OEM Part Numbers

• DZE: 02309-04

Vehicle Fitments

• Ducati 748: 1997


• Ducati 750 Paso, Sport, F1 and SS: 1987–2001


• Ducati 851 and 888: 1990–1993


• Ducati 900 ST2: 1988–1998


• Ducati 900 SSR, Superlight and SS: 1989–1993


• Ducati 900 Monster: 1993–1997


• Ducati 900 Darmah: year not specified


• Ducati 906 Paso 907 I.E.: 1989–1993


• Ducati 916: 1994–1998


• Ducati Pantah GT: year not specified
