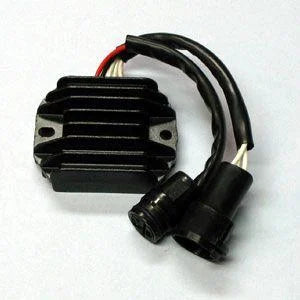

REGULATOR HON.ATC250ES/SX, 31600-HA8-770, 31600-HA0-000, 10-146
REGULATOR HON.ATC250ES/SX, 31600-HA8-770, 31600-HA0-000, 10-146
HONDA
ATC250ES / SC 1985 - 1987,
TRX250 4 TRAX UTILITY 1985 - 1987,
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 25 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 70 [mm] |
| Largo (length) | 80 [mm] |
| Con sensor (with sensor) | SI |
| dze that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Honda | ATC | ES / SX | 250 | from 1985 to 1987 | 31600-HA0-000 |
| Honda | TRX | 250 | from 1985 to 1987 | 31600-HA8-770 | |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-606 (oro2u.com)
Cross reference numbers ONLY.
RICKS 10-146, 31600-HA8-770, 31600-HA0-000, DZE REG 2456, ESP2456, 2456
1985 ATC250ES A WIRE HARNESS
1985 ATC250SX A WIRE HARNESS + BATTERY
1985 TRX250 A WIRE HARNESS
1986 ATC250ES A WIRE HARNESS
1986 ATC250SX A WIRE HARNESS + BATTERY
1986 TRX250 A WIRE HARNESS
1987 ATC250ES A WIRE HARNESS
1987 ATC250SX A WIRE HARNESS + BATTERY
