RADIATOR SET OS 2013-2017 SUZUKI RMZ250 XD-10097 RH 17710-49H10 LH 17720-49H10

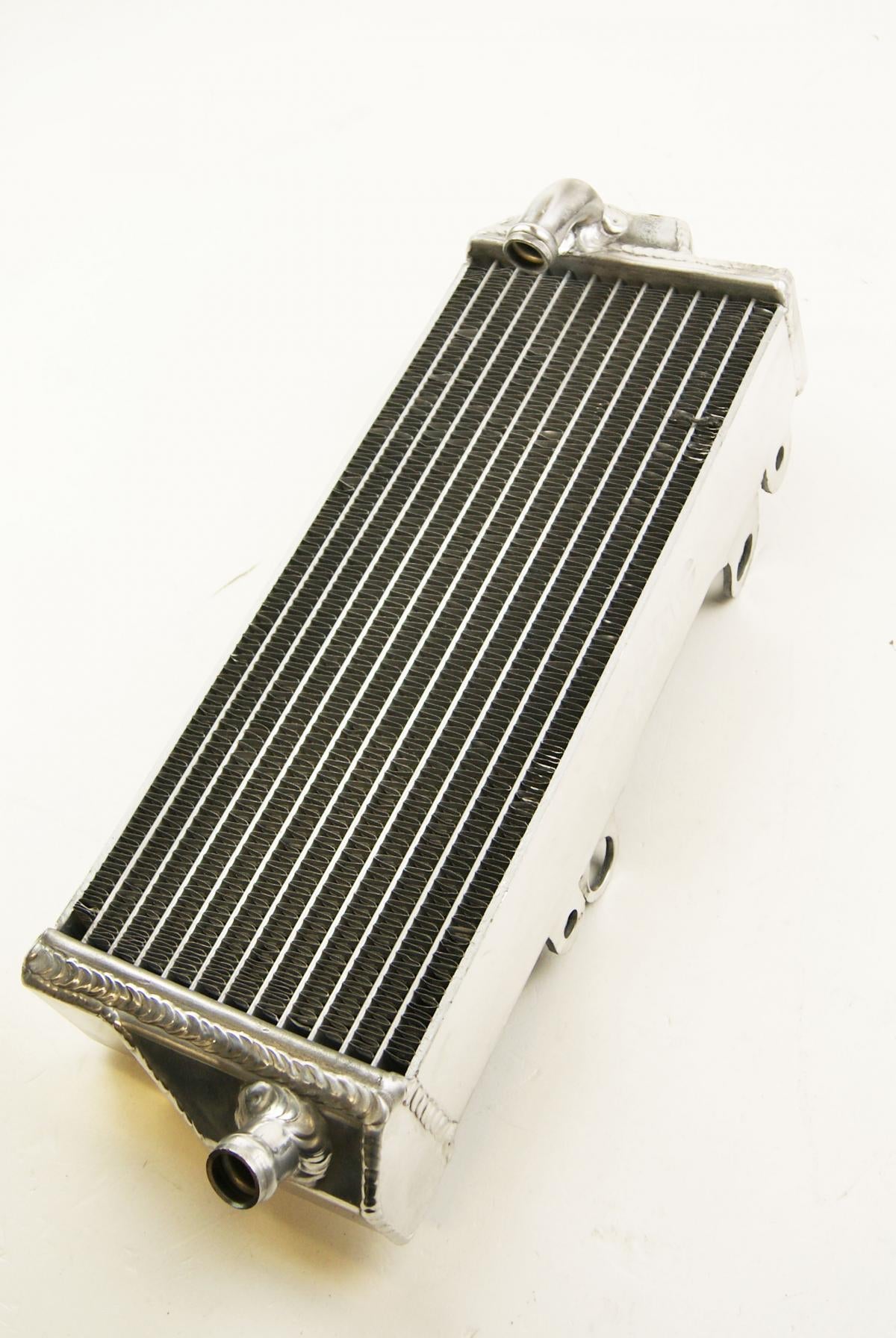

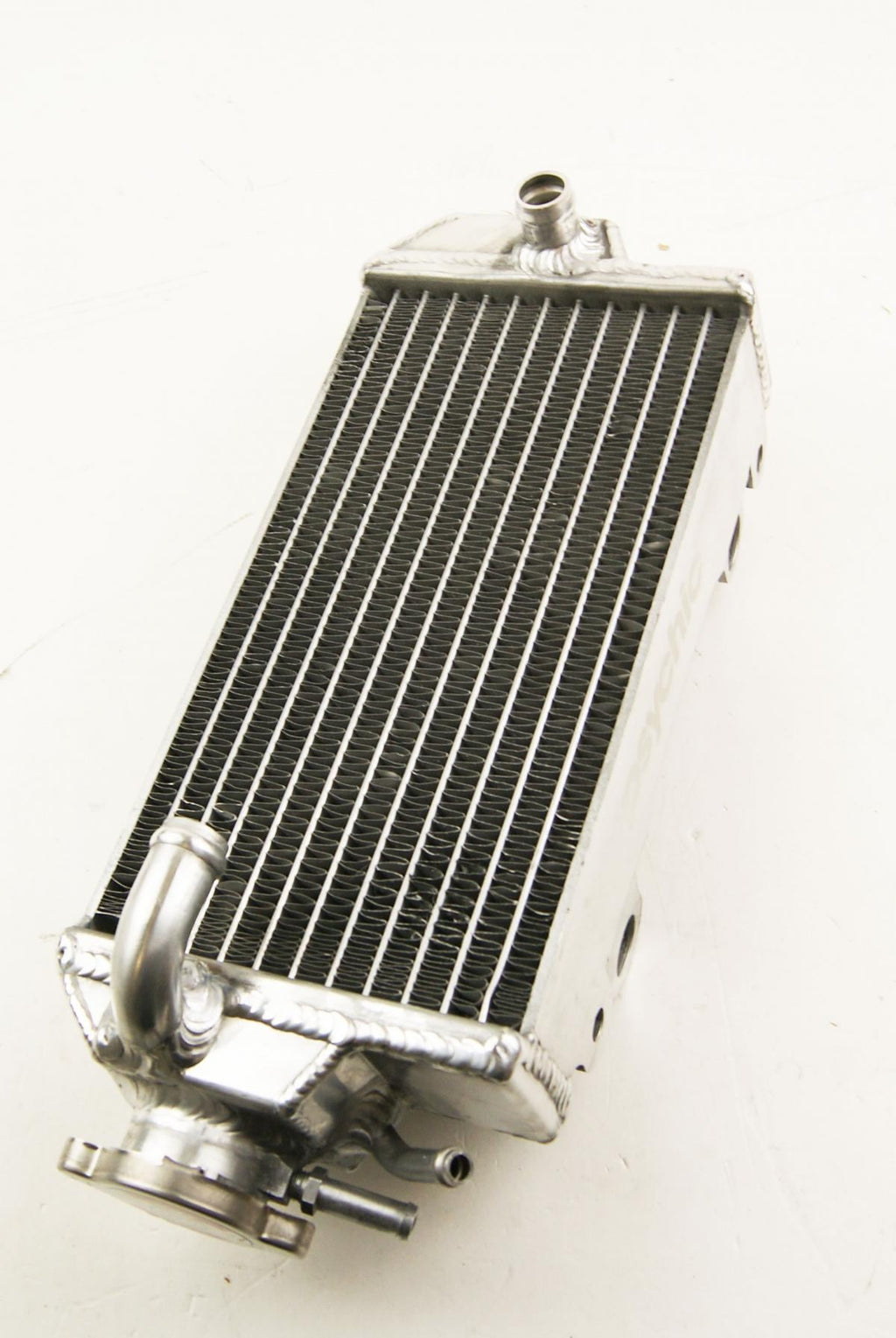

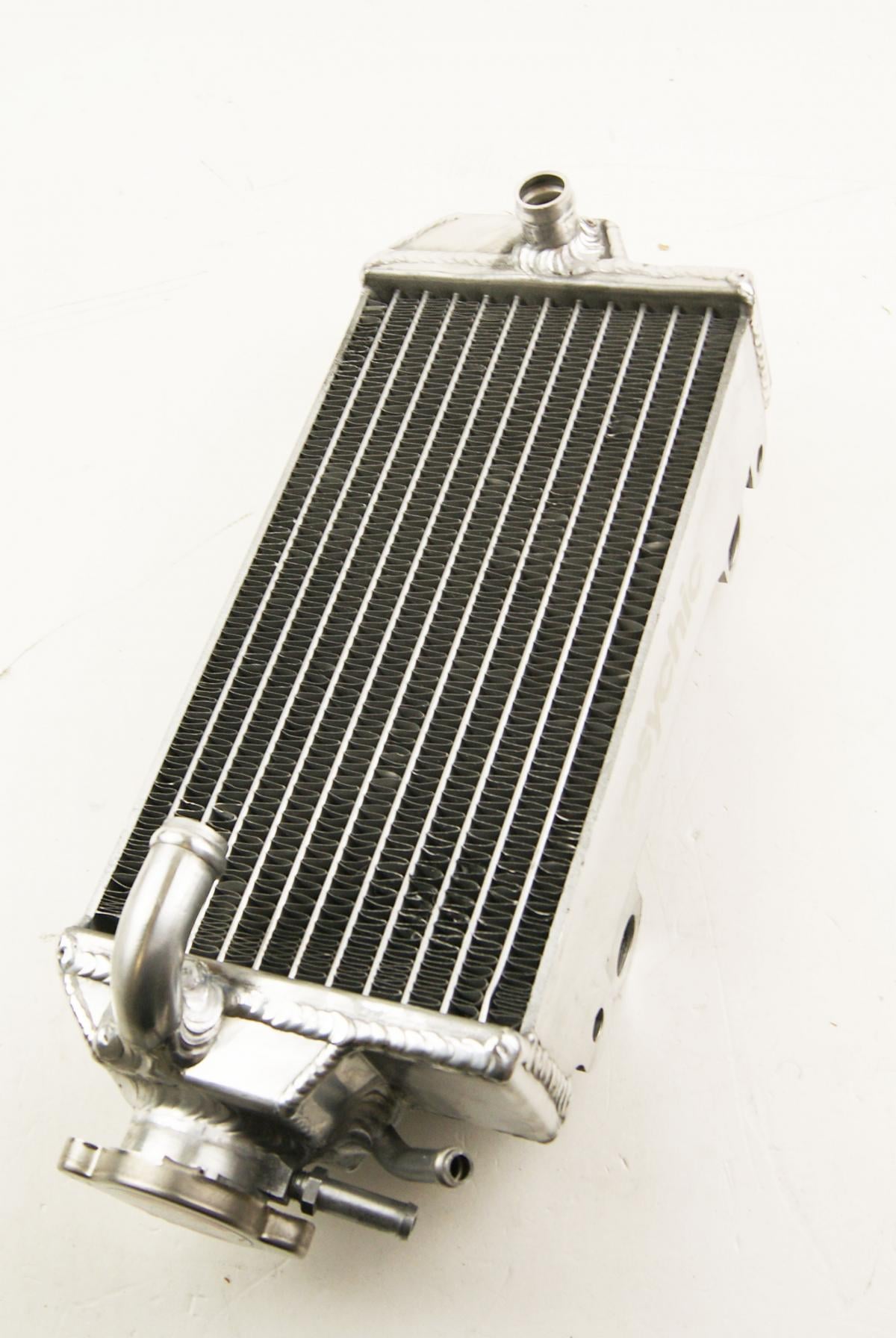

Aluminium left and right radiator set with oversize cores, engineered for efficient cooling performance and straightforward installation. Constructed with 6063 aluminium and TIG-welded tanks, connections, seams and brackets, the design uses a 100% brazed aluminium core and includes a standard radiator cap.

Features

• Oversize design for increased heat rejection


• 100% brazed aluminium core


• TIG-welded tanks, connections, seams and brackets


• No installation modifications necessary


• Meets or exceeds OEM quality


• Standard radiator cap included


• Provides up to 15–20% more cooling

Specifications

• Material: 6063 aluminium


• Configuration: Left and right radiator set


• Core construction: 100% brazed aluminium

Cross-Reference OEM Part Numbers

• 23-188.DR.SET.OS


• Psychic XD-10097 Oversize


• RH 17710-49H10


• LH 17720-49H10

Vehicle Fitments

•


  Suzuki RM-Z250 2013–2017
