PISTON KIT SHERCO SE 250 66.40 C, WOSSNER 8305DC, SE/SE-R 250 2017-2018
PISTON KIT SHERCO SE 250 66.40 C, WOSSNER 8305DC, SE/SE-R 250 2017-2018

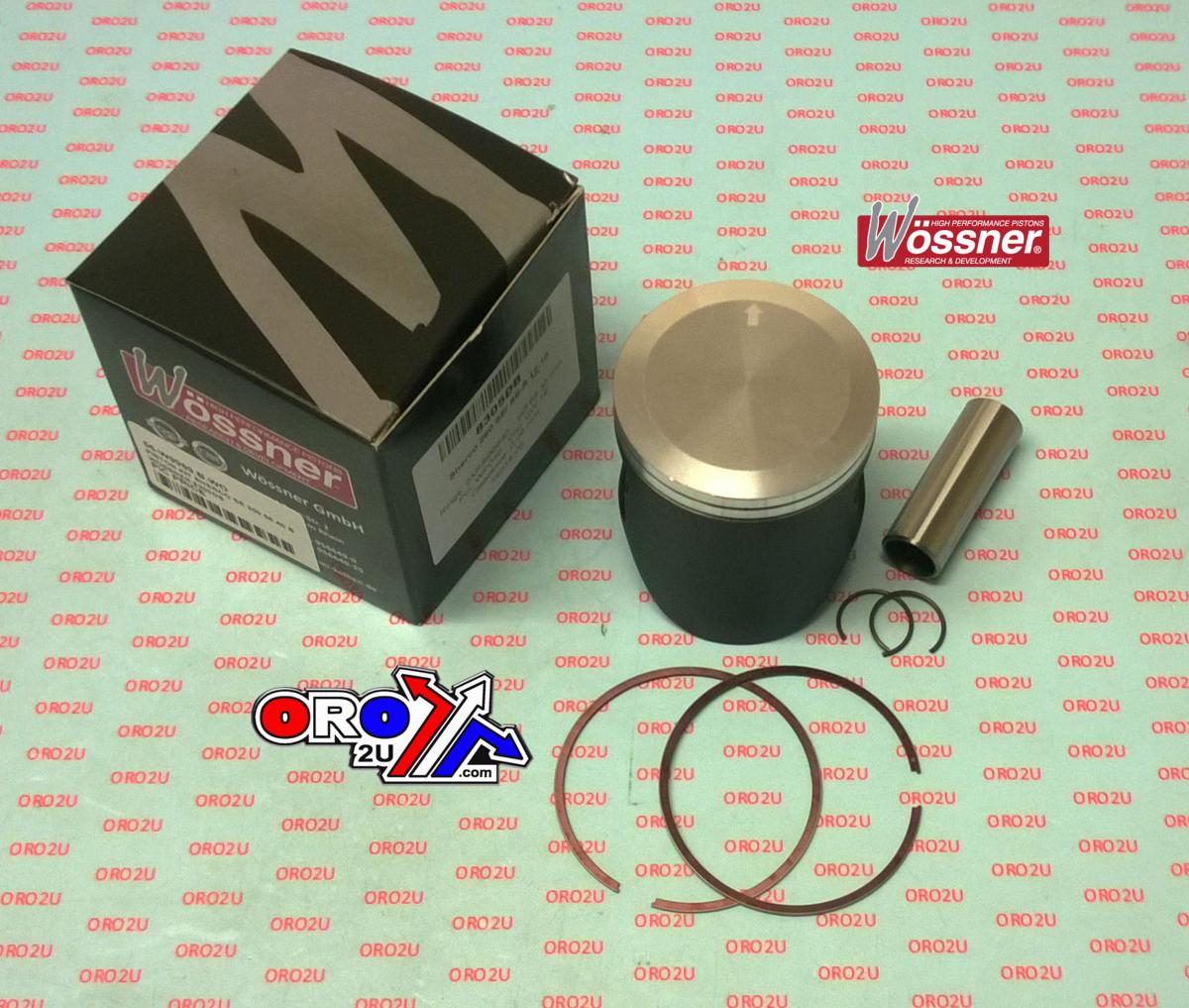

This Wossner piston kit is intended for Sherco SE and SE-R 250 models from 2017 to 2018. Featuring a 66.42mm bore with a +0.02mm oversize, the forged piston offers exceptional strength, thermal stability, and precise performance. Manufactured in Germany, the kit includes all required components for installation.
Features
-
Forged high-performance piston with skirt coating
-
Designed for optimal combustion heat transfer to cylinder walls
-
Elliptical design provides a uniform bearing surface under thermal expansion
-
Evenly distributes thrust loads and reduces localised pressure
-
Prevents piston collapse under high-stress operation
-
Includes piston, rings, pin, and circlips
Specifications
-
Bore size: 66.42mm
-
Oversize: +0.02mm
-
Ring set: RIK77.00D
-
Pin: WP070
-
Clips: CW16
-
Country of manufacture: Germany
Cross-Reference OEM Part Numbers
-
Wossner 8305DC
-
56-W9989.A.WO
Vehicle Fitments
-
Sherco SE 250 2017–2018
-
Sherco SE-R 250 2017–2018
