PISTON KIT SHERCO 250 SE-F 14-18, WOSSNER 8959DC, 75.98mm, Sherco 250SE-F '14-18 (75.98mm) 4-STROKE
PISTON KIT SHERCO 250 SE-F 14-18, WOSSNER 8959DC, 75.98mm, Sherco 250SE-F '14-18 (75.98mm) 4-STROKE

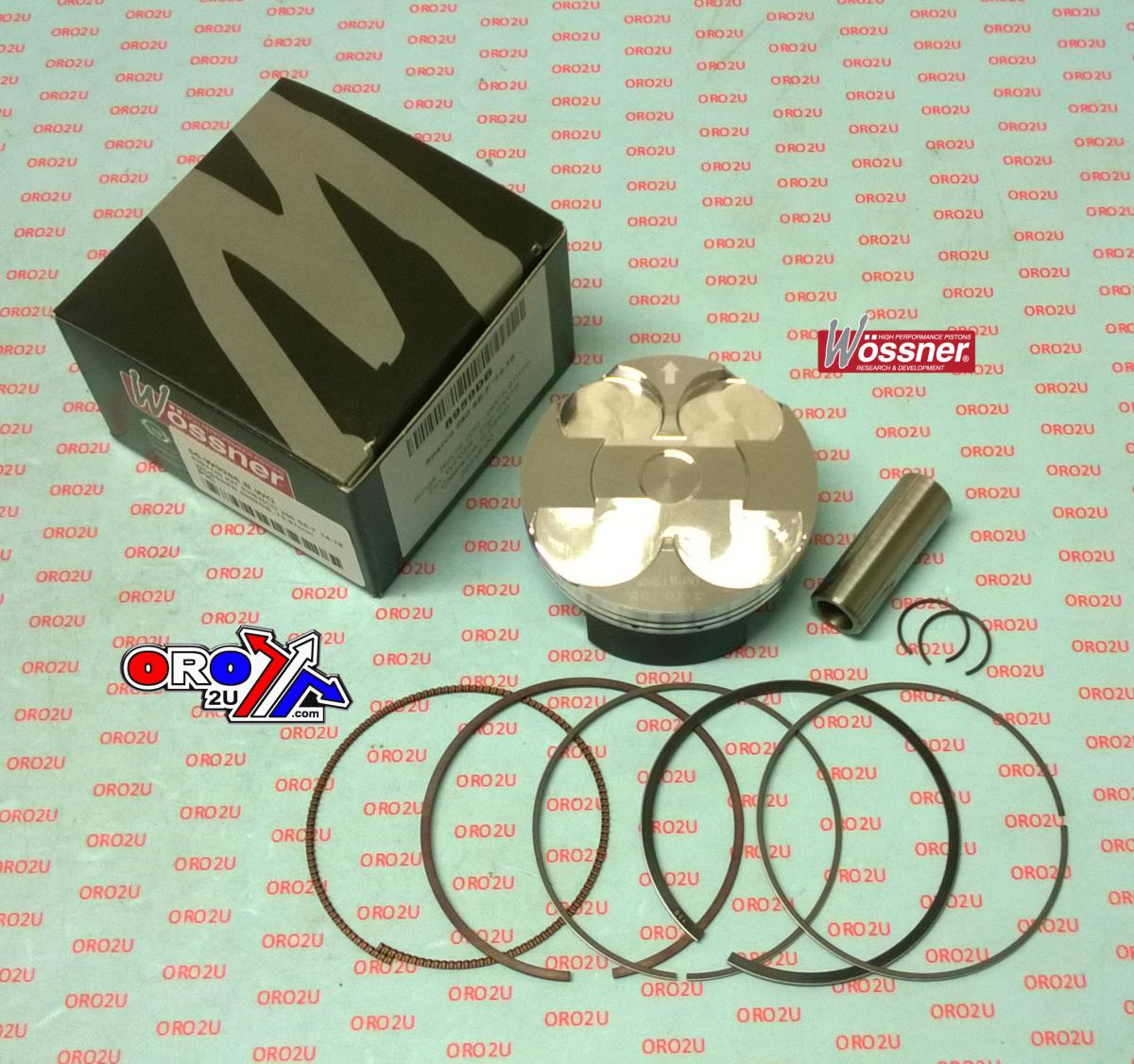

This Wossner piston kit is developed for Sherco 250 SE F and SE F-R models from 2014 to 2018. With a 75.98mm bore and a +0.02mm oversize, it delivers a precise fit along with a high compression ratio of 13.4:1. Manufactured in Germany, this forged piston ensures enhanced durability, efficient heat transfer, and consistent engine performance under demanding conditions.
Features
-
Forged high-performance pistons with skirt coating
-
Designed for effective combustion chamber heat dissipation to cylinder walls
-
Elliptical design maintains a uniform bearing surface during thermal expansion
-
Even distribution of thrust loads minimises localised pressure
-
Prevents piston collapse under high thermal and mechanical stress
Specifications
-
Bore size: 75.98mm (nominal 76mm)
-
Oversize: +0.02mm
-
Compression ratio: 13.4:1
-
Country of manufacture: Germany
Cross-Reference OEM Part Numbers
-
Wossner 8959DC
-
56-W9986.C.WO
-
W40235M07600
-
Wiseco 40235M07600
-
8959DA
Vehicle Fitments
-
Sherco 250 SE F-R 2014–2018
-
Sherco 250 SE F 2014–2018
