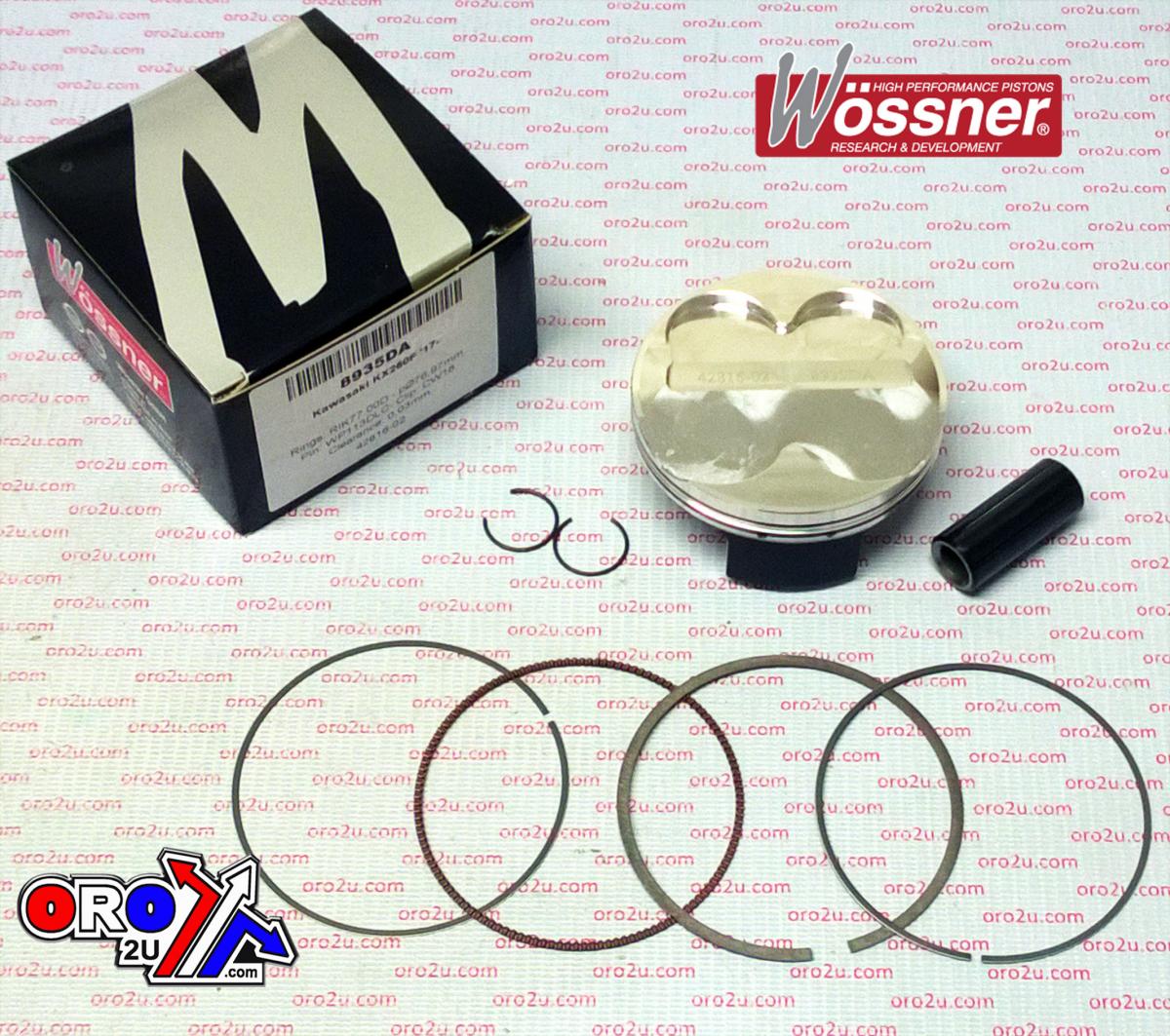

PISTON KIT KXF250 2017 77mm A, WOSSNER 8935DA HC 14.5:1 13001-0793

The Wossner 8935DA piston kit is a high-compression forged piston designed for Kawasaki KXF250 models, offering a standard 77.00mm bore and a measured diameter of 76.97mm. With a compression ratio of 14.5:1, this German-engineered piston delivers increased performance while maintaining strength and durability under high thermal loads.

Features

•


  Forged construction for high strength and longevity





•


  High compression design for enhanced engine performance (14.5:1)





•


  Engineered for effective heat dissipation to cylinder walls





•


  Elliptical profile ensures even load distribution during thermal expansion





•


  Includes piston, ring set (RIK77.00D), pin (WP070), and circlips (CW16)




Specifications

•


  Bore: 77.00mm (STD)





•


  Diameter: 76.97mm





•


  Compression Ratio: 14.5:1





•


  Wossner Part Number: 8935DA





•


  Kit Part Number: 56-W9952.A.WO.H





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  PISTON-ENGINEV: 13001-0785





•


  PIN-PISTON: 13002-0048





•


  RING-SET-PISTON: 13008-0028





•


  RING-SNAP, PISTON PIN: 92033-1161





•


  13001-0793





•


  40178M07700





•


  RIK77.00D





•


  WP070





•


  CW16




Vehicle Fitments

•


  Kawasaki KXF250 2017 - 2018





•


  Kawasaki KX250F 2017
