PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB

£127.34
£127.34
Passer aux informations sur le produit
PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
  • PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB
PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB

PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DB

£127.34
£127.34

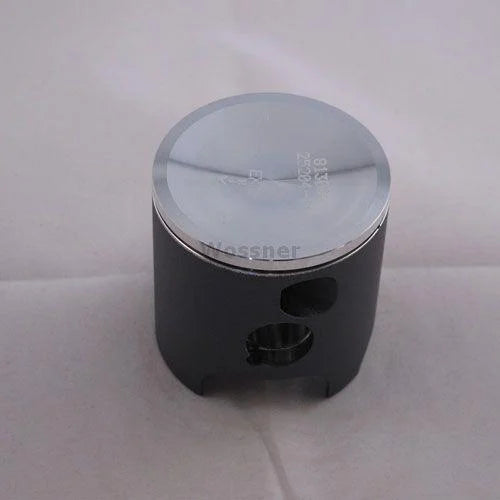

Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.



Features




  • Forged piston for enhanced strength and durability

  • Optimized heat transfer for efficient combustion

  • Elliptical design to prevent piston collapse

  • Manufactured in Germany



Specifications




  • Bore Size: 56.01mm

  • Actual Bore Diameter: 55.95mm

  • Displacement: 125 cm³

  • Stroke: 50.60mm

  • Clearance: 0.06mm

  • Wossner Compression Ratio: 2-Stroke

  • OEM Compression Ratio: 2-Stroke

  • Compression Height: 29.50mm

  • Theoretical Weight: Not specified

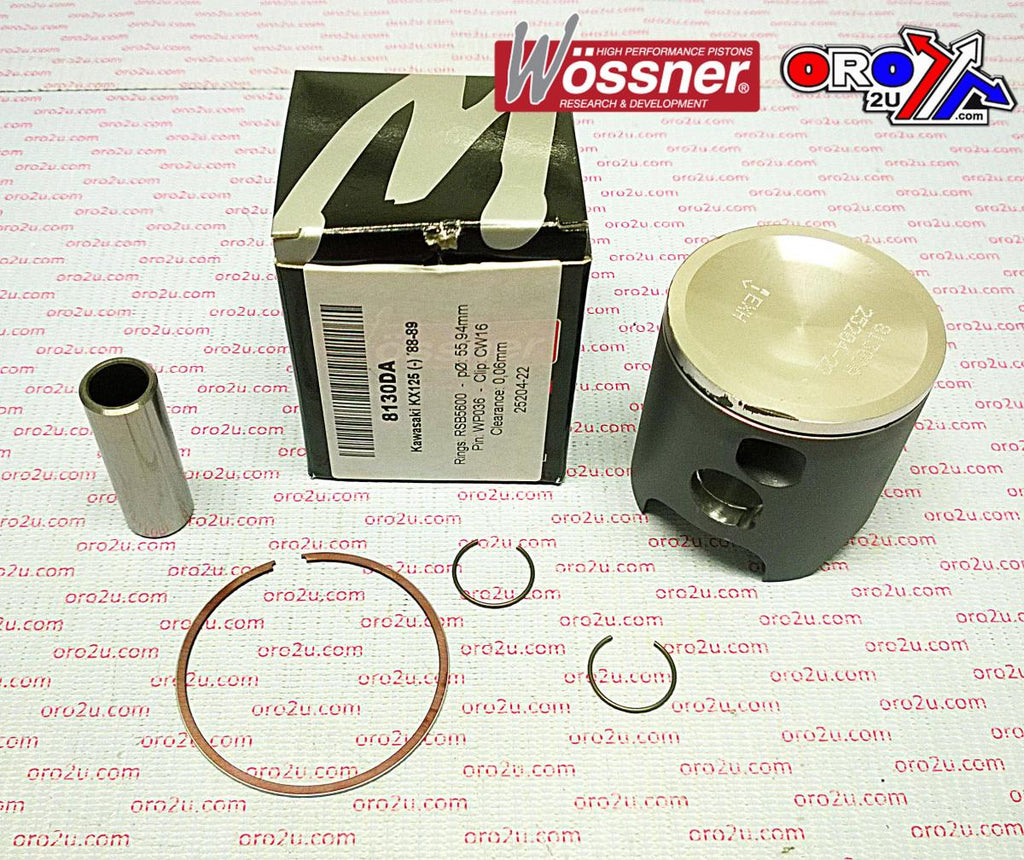

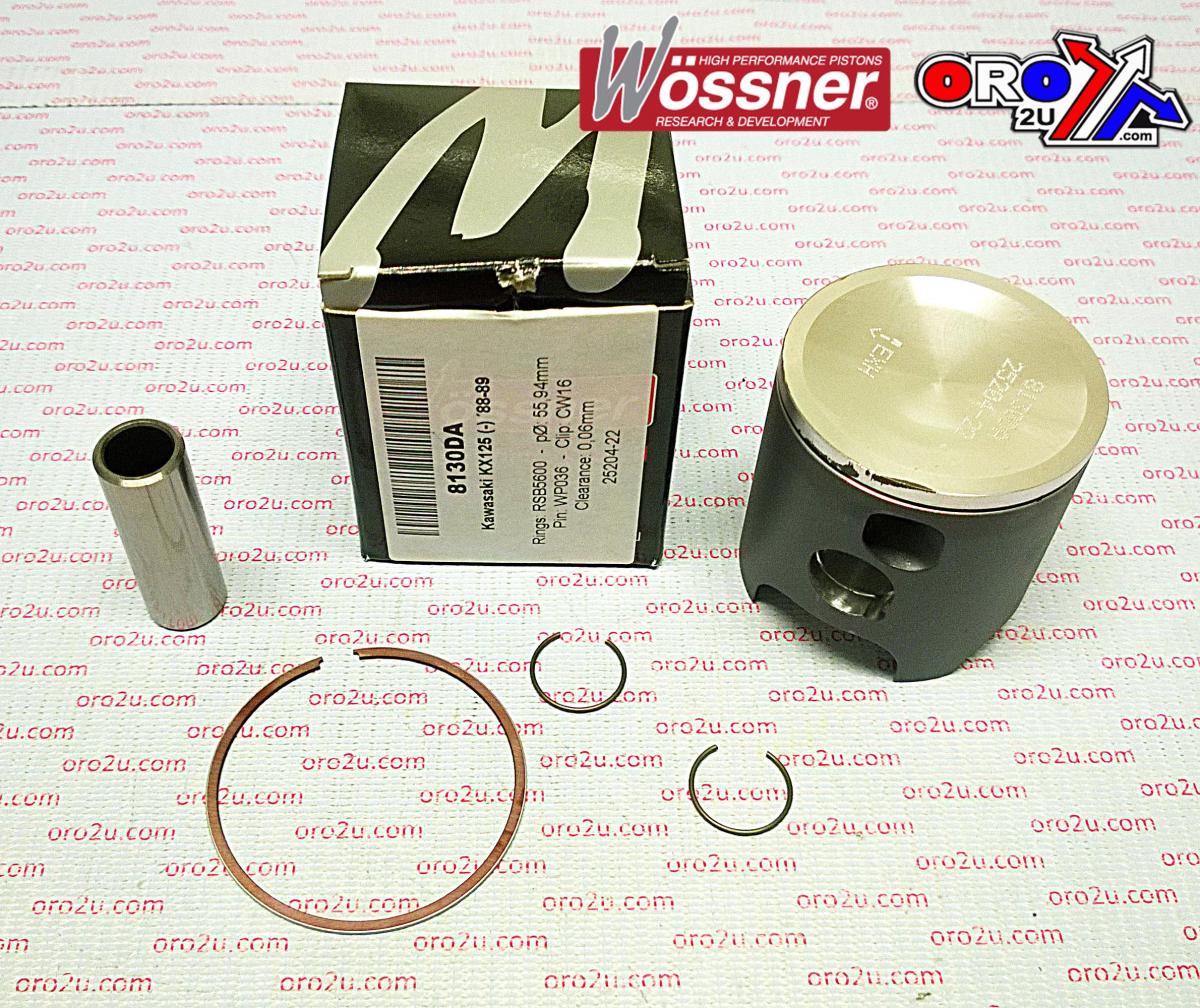

Included Components




  • Lock Part Number: CW16

  • Pin Part Number: WP036

  • Ring Set Part Number: RSB5600

  • Rod Part Number: P2033



Vehicle Fitments




  • Kawasaki KX125 (1988-1989)
