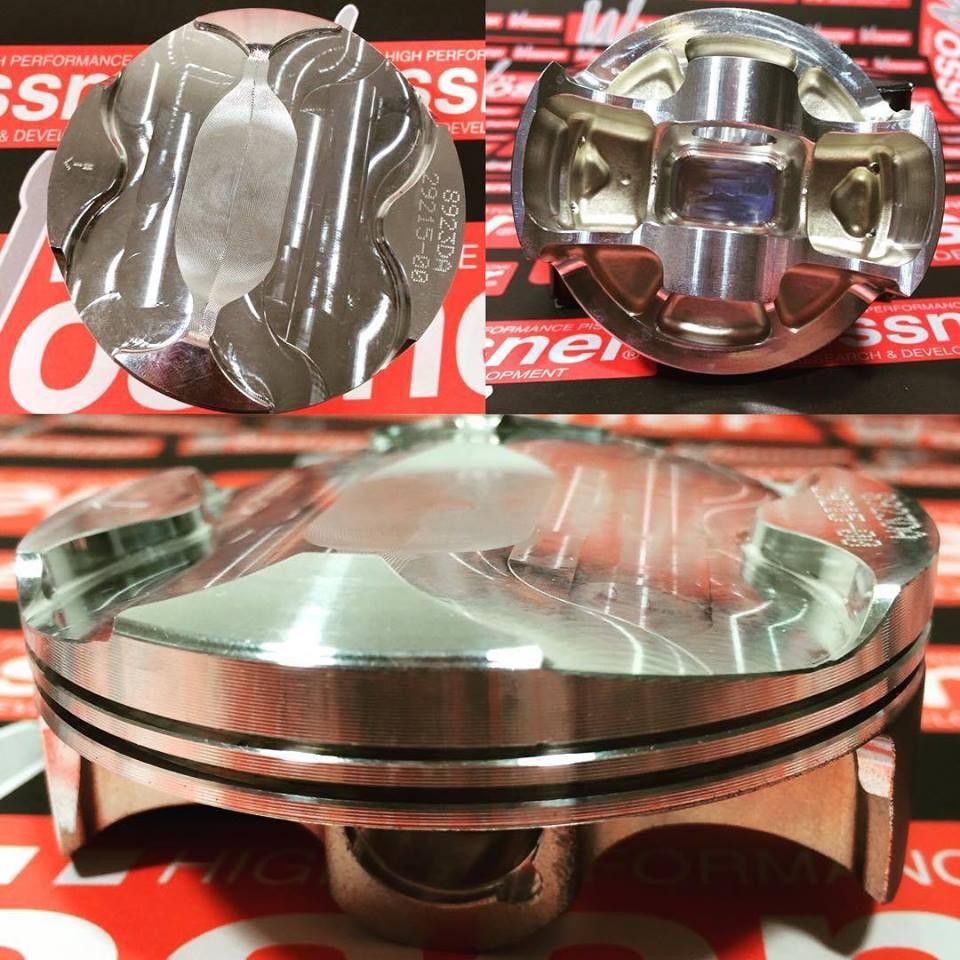

PISTON KIT 16-22 SXF250 78mm C, WOSSNER 8923DC KTM

Piston kit 78.02mm Bore 77.98 Wossner 8923DC (+0.02mm)

KTM

SX-F250 2016 -,2022

• Wossner forged pistons are superior in strength and design.


• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.


• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.


• Made in Germany

Part No. 56-W265.C.WO (oro2u.com)

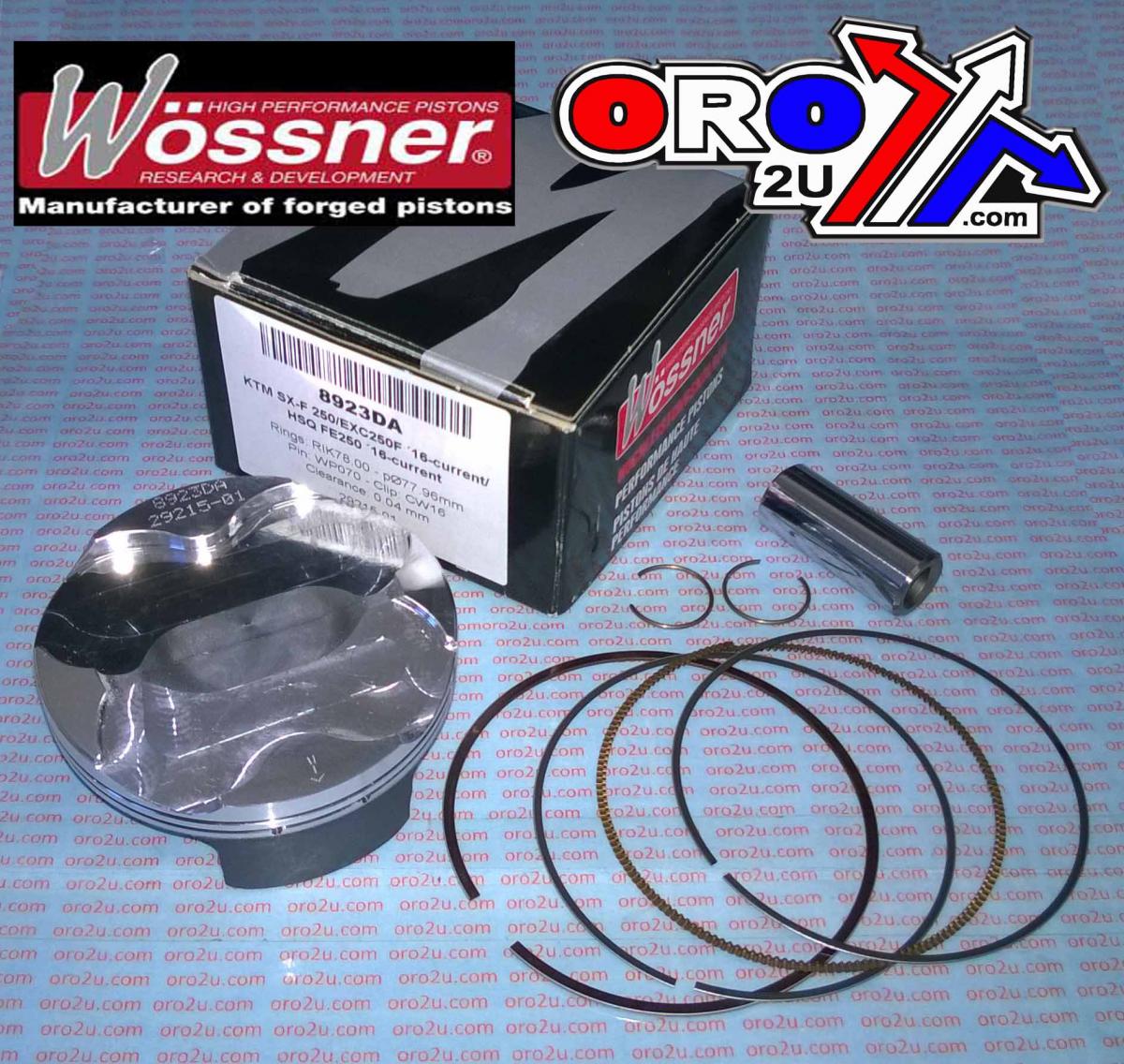

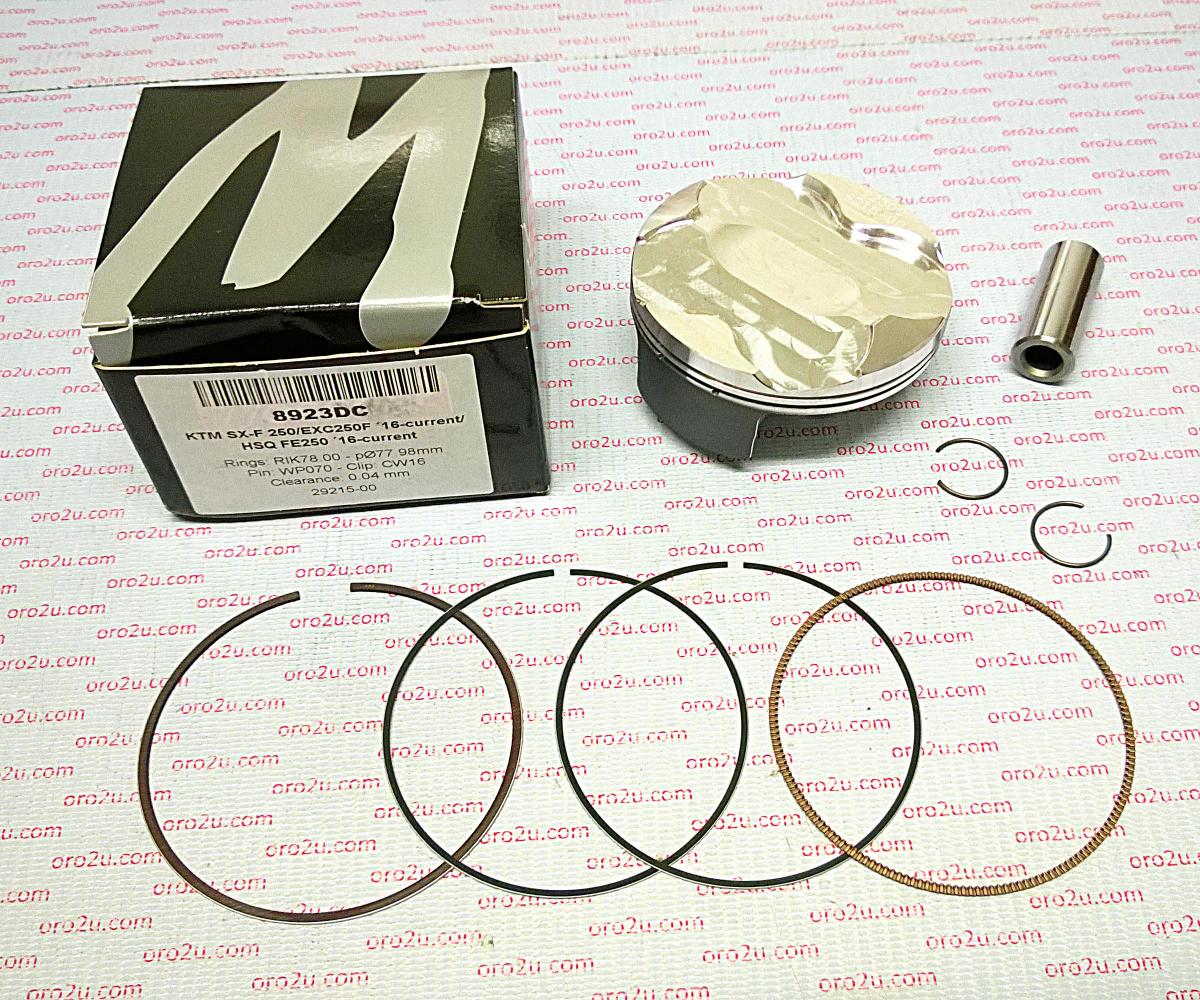

WOSSNER PISTON KIT

Lock P/N CW16

Pin P/N WP070

Ring Set P/N RIK78.00

Display (cm3) 249

Hub stroke (mm) 52.30

Clearance (mm) 0.04

Wossner compression Ratio: OEM

OEM Compression ratio: 13.90:1

Dome volume (cm3) -1.80

Compression height (mm) 19.50

Theorectical weight (G) 135.00
