PISTON KIT 02-04 YZ125 54.00 A, WOSSNER 8072DA YAMAHA MX 5NY-11631-01-D0

This Wossner piston kit features a 54.00mm bore and 53.94mm actual piston diameter, designed for Yamaha YZ125 models from 2002 to 2004. Built with forged construction, it delivers strength, optimal heat transfer, and consistent performance for 2-stroke engines under demanding conditions.

Features

•


  Forged piston construction enhances durability and structural integrity





•


  Promotes efficient heat transfer from the combustion chamber to the cylinder walls





•


  Elliptical design ensures uniform bearing surface under thermal expansion





•


  Distributes thrust loads evenly to reduce localised pressure and prevent piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore: 54.00mm





•


  Piston Diameter: 53.94mm





•


  Display (cm³): 125





•


  Stroke (mm): 54.50





•


  Clearance (mm): 0.06





•


  Compression Height (mm): 28.00





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke




Cross-Reference OEM Part Numbers

•


  5NY-11631-01-D0





•


  5NY-11631-01-C0





•


  5NY-11631-01-B0





•


  5NY-11631-01-A0





•


  797M05400





•


  09104787





•


  Ring: 5NY-11611-00-00





•


  Pin: 5UN-11633-00-00





•


  Circlip: 93450-16068-00




Vehicle Fitments

•


  Yamaha YZ125 2002–2004

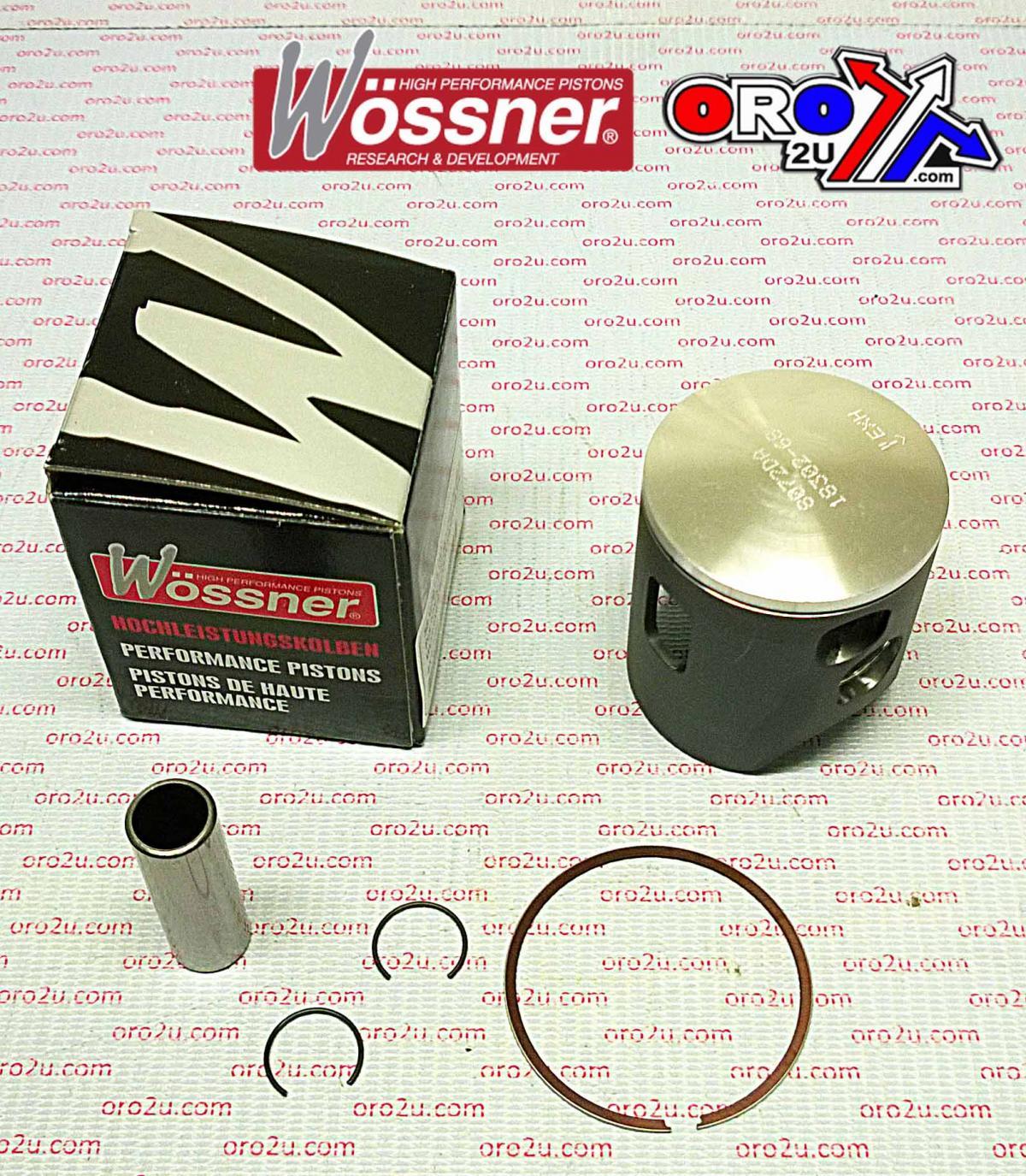

Included Components

•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5400





•


  Rod: P2017





•


  Part Number: 56-W797.A.WO (Piston PN# 8072DA)
