DIGITAL MULTIMETER LCD AC/DC VOLT AMP OHM TEMP TRANSISTOR TEST DT-830B

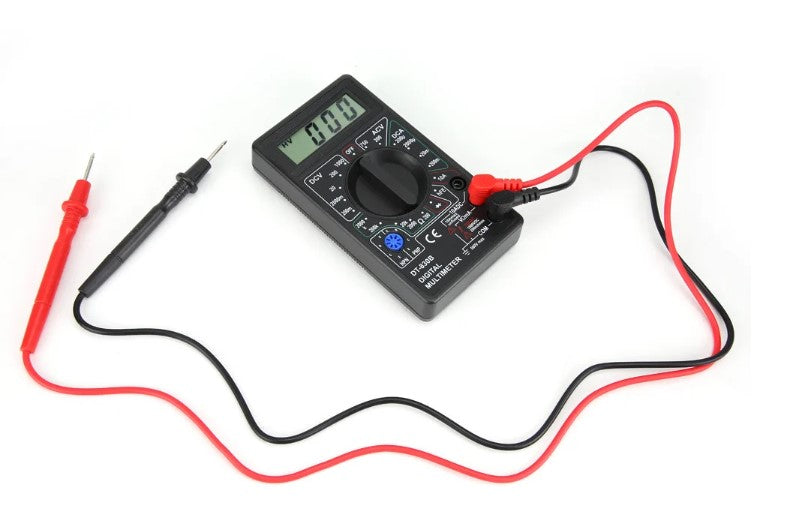

This portable digital multimeter is a handheld electrical test meter for checking voltage, current, resistance and transistor function across a range of diagnostic tasks. It is intended for general testing and fault-finding in automotive, household, workshop and hobby applications, with an LCD display for reading measurement results clearly during use.

Features

• Handheld multifunction meter for general electrical testing


• Suitable for checking AC and DC voltage


• Suitable for checking DC current


• Suitable for resistance testing


• Supports transistor testing for NPN and PNP types


• LCD screen for clear readout


• Overload protection circuit design


• Test leads fitted with insulated soft rubber protective covers


• Suitable for workshop, laboratory, household and radio hobby use


• Can be used for automotive and appliance fault-finding

Specifications

• Item type: Digital multimeter


• Material: Plastic and rubber


• Colour: Black


• Maximum display count: 1999


• DC voltage ranges: 200 mV / 2000 mV / 20 V / 200 V / 1000 V


• AC voltage ranges: 200 V / 750 V


• DC current ranges: 200 µA / 2000 µA / 20 mA / 200 mA / 10 A


• Resistance ranges: 200 O / 2 kO / 20 kO / 200 kO / 2000 kO


• Resistance measurement range: 200 O to 2000 kO


• Transistor test: NPN, PNP


• Temperature test range: -40 °C to 1000 °C


• Power supply: 9 V battery


• Battery included: No

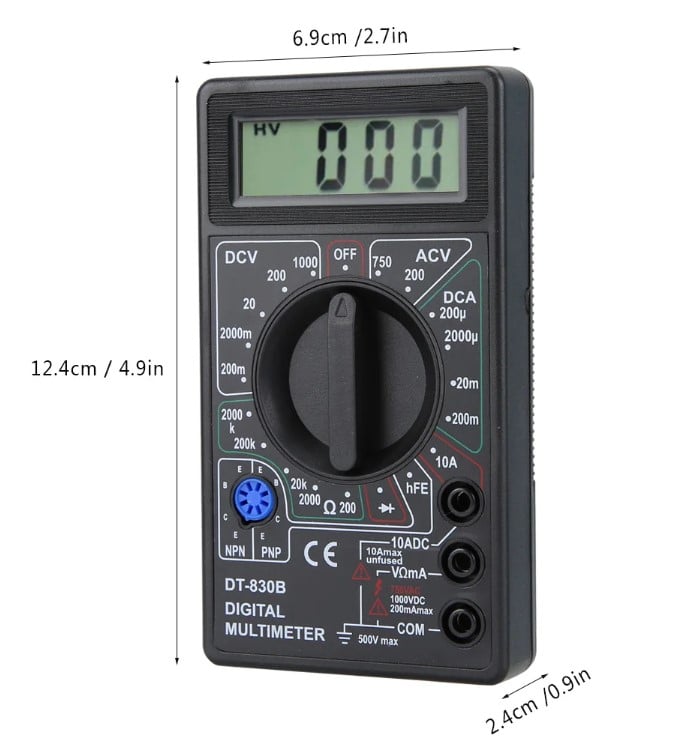

• Dimensions: approx. 12.4 x 6.9 x 2.4 cm


• Weight: approx. 126 g

Cross-Reference OEM Part Numbers

• DT-830B
