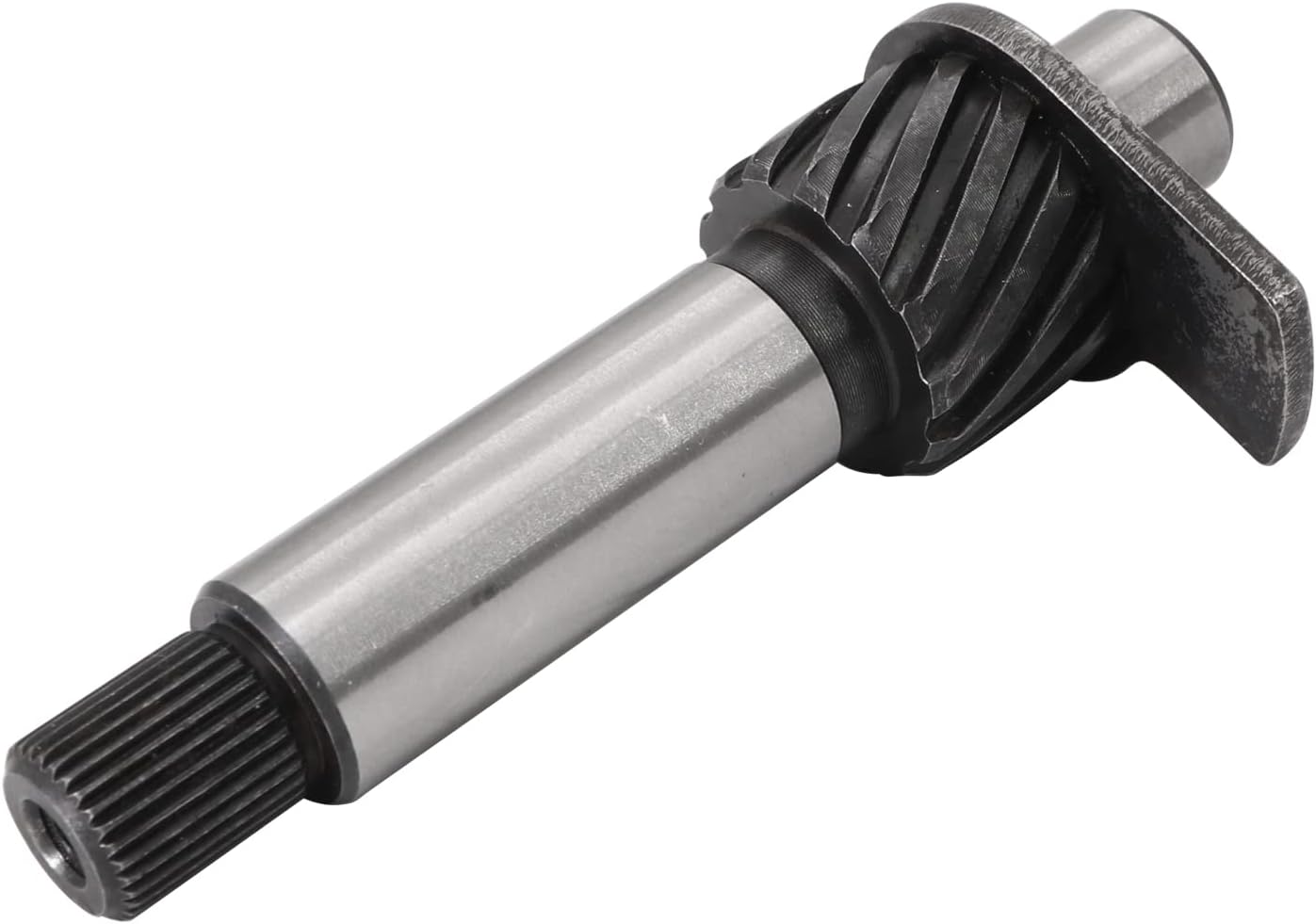

KICKSTART SHAFT 1986 - 2004 YAMAHA YZ125 1LX-15660-03-00

Kickstart axle shaft for Yamaha YZ125, OEM part number 1LX-15660-03-00. This direct replacement component forms part of the kick-starter mechanism (“Starter” assembly) and is engineered for precise fit and dependable operation across the listed YZ125 model years.

Features

• Manufactured to exacting standards for dependable service


• Meets or exceeds OEM quality


• Direct OEM replacement


• Check images and part number before ordering to avoid mistakes


• Strong value replacement part


• Straightforward installation; seek professional assistance if unsure

Specifications

• Component: Kickstart axle shaft


• OEM part number: 1LX-15660-03-00


• Application: YZ125 kick-starter (“Starter”) assembly

Dimensions (+-0.5mm)

Multiple versions of this product are available as replacements for OEM 1LX-15660-03-00. Before ordering, please confirm the dimensions below to ensure it will fit your application.

• Total Length - 95mm


• Kick Starter Spline



  • OD - 13mm


  • ID (Threaded) - 5.3mm


  • Length - 17mm






• Main Body



  • Length - 42.5mm


  • Diameter - 16.9mm






• Gear



  • Width - 19mm


  • Diameter - 26mm


  • 13 Gears






• Locating plate



  • Thickness - 5mm


  • Diameter - 29mm






• End Pin



  • Length - 11mm


  • OD - 14.85mm


  • ID - 10.25mm





Cross-Reference OEM Part Numbers

• 1LX-15660-03-00


• 1LX-15660-00-00

Vehicle Fitments

• 1986 YZ125S – Starter


• 1987 YZ125T – Starter


• 1988 YZ125U – Starter


• 1989 YZ125W – Starter


• 1990 YZ125A – Starter


• 1991 YZ125B – Starter


• 1992 YZ125D1 – Starter


• 1997 YZ125 (YZ125J1) – Starter


• 1998 YZ125 (YZ125K1) – Starter


• 1999 YZ125 (YZ125L1) – Starter


• 2000 YZ125 (YZ125M1) – Starter


• 2001 YZ125 (YZ125N1) – Starter


• 2002 YZ125 (YZ125P) – Starter


• 2003 YZ125 (YZ125R) – Starter


• 2004 YZ125 (YZ125S1) – Starter
