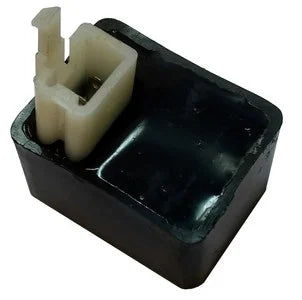

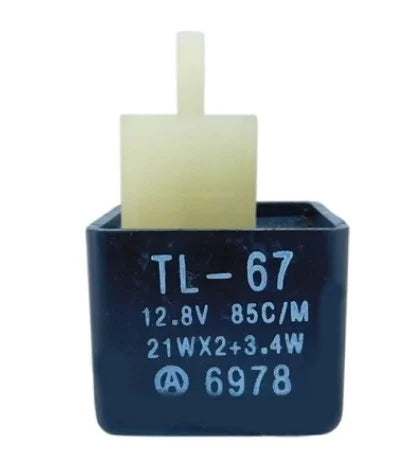

FLASHER RELAY UNIT 87-17 SUZUKI GSF GS GSX GSX-R RF DR LS VS VX VZ TL 38610-45D00

The TL-67 is a 12 V electronic motorcycle flasher relay designed to control turn signal operation on compatible Suzuki motorcycles. It provides a direct replacement for the original indicator relay where the specified OEM references are fitted, using a two-terminal transistor design that does not require a separate ground connection.

Features

• Direct OEM replacement


• Controls motorcycle turn signal flashing


• Factory tested for reliability


• Designed for increased power loads


• Clamp mounting included

Specifications

• Voltage: 12 V


• Type: Electronic transistor relay


• Terminals: 2


• Load: 2 x 21 W + 3.4 W


• Ground connection: Not required

Cross-Reference OEM Part Numbers

• DZE DES 9353


• 09353-04


• 38610-45D00


• 38610-45D01


• 38610-26E00


• TL110


• TL-67

Vehicle Fitments

• Suzuki GSF Bandit 400 (1991-1993)


• Suzuki GS E 500 (1989-2002)


• Suzuki GSF Bandit 600 (1996-1999)


• Suzuki GSX Katana 600 (1988-1997)


• Suzuki GSX-R 600 (1992-1993, 1997-2000)


• Suzuki RF R 600 (1994-1996)


• Suzuki DR SE 650 (1992-2017)


• Suzuki LS 650 (2013-2017)


• Suzuki LS Boulevard S40 650 (2005-2012)


• Suzuki LS Savage 650 (1996-2004)


• Suzuki GSX Katana 750 (1989-1997)


• Suzuki GSX-R 750 (1993-1999)


• Suzuki DR 800 (1991-1994)


• Suzuki VS Boulevard S50 800 (2005-2009)


• Suzuki VS Intruder GL 800 (1992-2004)


• Suzuki VX 800 (1990-1993)


• Suzuki VZ Marauder 800 (1997-2003)


• Suzuki RF R 900 (1994-1997)


• Suzuki GSX-R 1100 (1993-1998)


• Suzuki TL S 1100 (1997-2001)


• Suzuki GSF Bandit 1200 (1997-2000)


• Suzuki VS Boulevard S83 1400 (2005-2009)


• Suzuki VS Intruder GLP 1400 (1987-2004)
