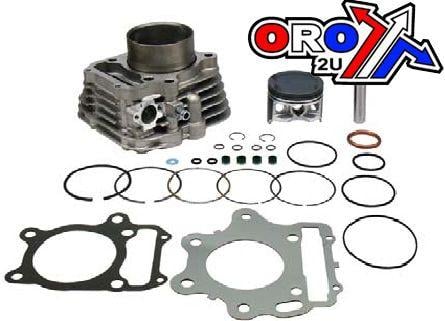

CYLINDER KIT 80 1993-2011 HONDA TRX300EX AT-09451-1K CA-10000-BB6K

Cylinder rebuild kit in 80.00 mm big-bore size for a 330 cc conversion, supplied as a complete package with new cylinder, matching piston assembly and top-end gaskets. The cylinder uses an aluminium casting with a cast iron sleeve and is intended as a direct service replacement for routine overhauls.

Features

• Big-bore conversion to approximately 330 cc


• Supplied with new cylinder, big-bore gasket set, piston, rings, wrist pin and two circlips


• Aluminium cylinder with cast iron sleeve for durability


• Direct-fit service replacement

Specifications

• Bore size: 80.00 mm (+6.00 mm over standard)


• Displacement: 330 cc (approximate)


• Cylinder material: Aluminium AC4B-T6


• Sleeve material: Cast iron FC30


• Kit contents: Cylinder; big-bore piston; ring set; wrist pin; two circlips; big-bore gasket set

Cross-Reference OEM Part Numbers

• AT-0945-1K


• 12100-HM3-L00


• 12191-HM3-670


• 12000-HM3-671


• 13011-HM3-671


• 13101-HM3-670


• 13111-HC0-000


• 94601-17000

Vehicle Fitments

•


  Honda TRX300EX 1993–2011
