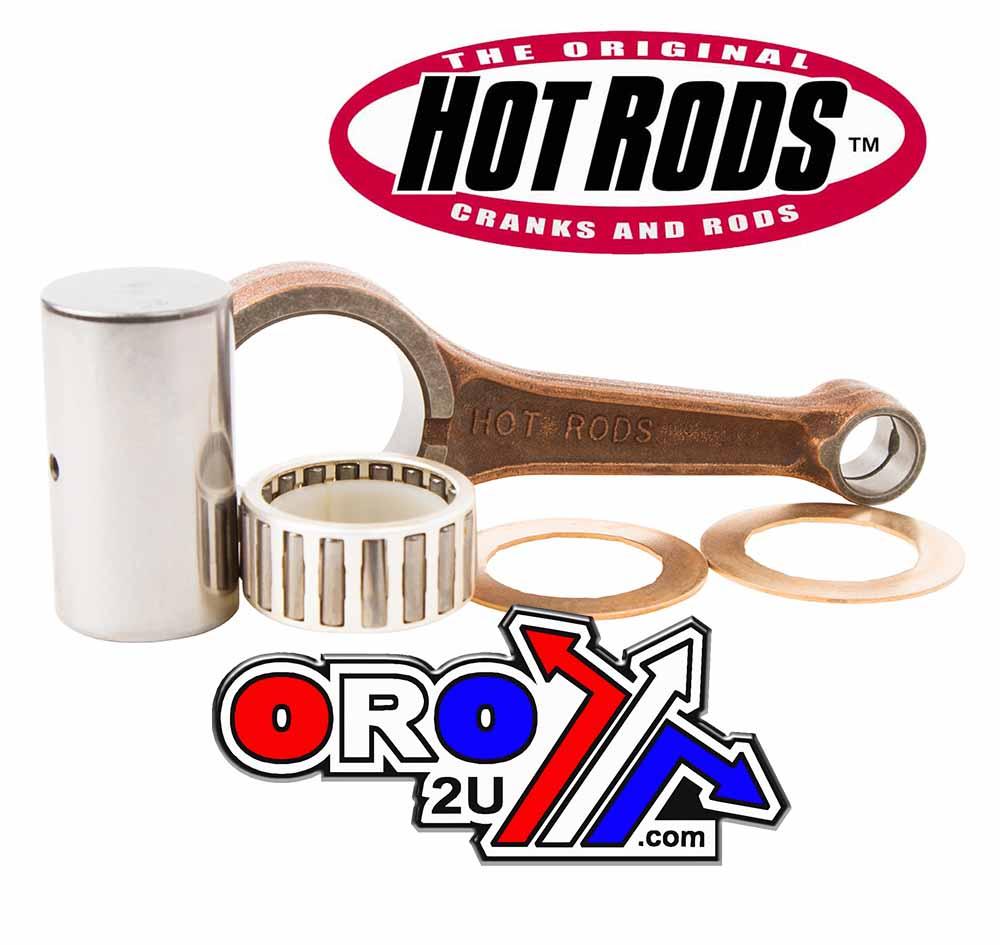

CONNECTING ROD KIT TRX250, HOT RODS 8691 HONDA ATV

The Hot Rods Connecting Rod Kit 8691 is a high-performance replacement kit for Honda TRX 250 series ATVs, designed to provide superior strength and reliability in demanding conditions. Manufactured from hot-rolled ASTM 4115 steel and case-hardened for durability, this kit includes all components needed for a complete connecting rod replacement.

Features:

• Constructed from hot-rolled ASTM 4115 steel, case-hardened to 58-62 RC.


• Advanced caged needle roller bearing design for high-RPM performance.


• Big end features side scalloping and vent slots to reduce bearing race distortion at high RPM.


• Shot-peened for durability and to eliminate surface stress risers.


• Double-honed bearing surfaces ensure ultra-round reliability.


• Double-drilled small ends for improved lubrication and cooling of wrist pin bearings.


• Includes silver-coated bronze phosphor thrust washers for added lubricity.

Included Items:

• (1) Connecting rod.


• (1) Crank pin.


• (1) Roller bearing.


• (2) Thrust washers.


• Instructions.

Technical Specifications:

• Big End Bore: 38.00 mm


• Big End Width: N/A


• Center to Center: 105.50 mm


• Pin Diameter: 30.00 mm


• Pin Length: 53.90 mm


• Small End Bore: 15.00 mm


• Small End Width: N/A


• Washer Thickness: 0.95 mm

Compatible Models:

Honda TRX250EX (2001–2008):

• 2001–2008 Honda TRX250EX Sportrax

Honda TRX250TE Recon (2002–2017):

• 2002–2017 Honda TRX250TE Recon ES

Honda TRX250TM Recon (2002–2017):

• 2002–2017 Honda TRX250TM Recon

Honda TRX250X (2009–2017):

• 2009–2017 Honda TRX250X

Part Number: 8691
