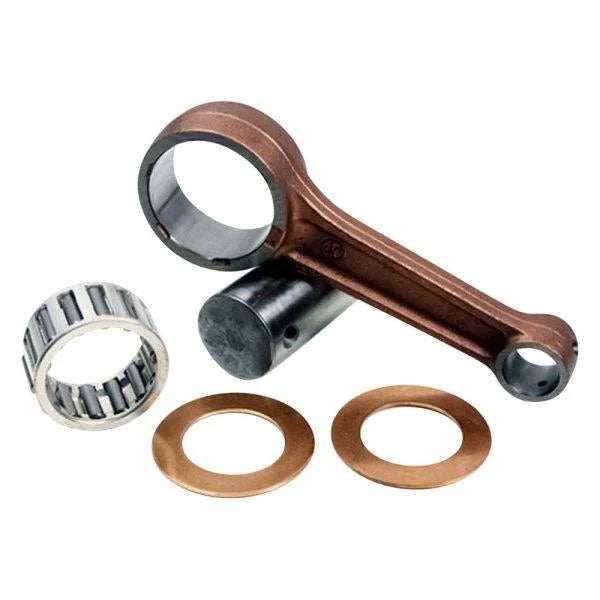

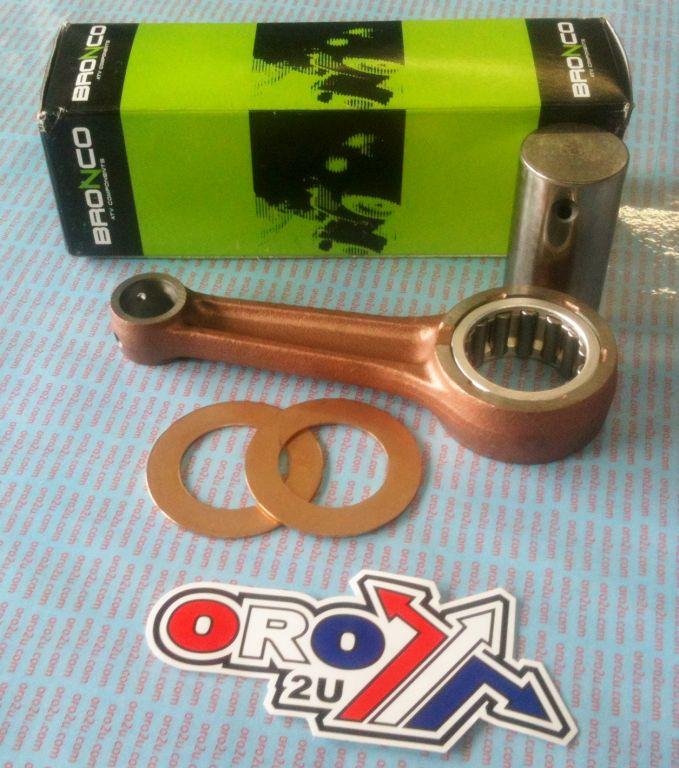

CONNECTING ROD KIT KLF300, BRONCO AT-09164, 13044-5066
CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09164,
KAWASAKI
95-00 Kawasaki KEF300 Lakota 300,
01-03 Kawasaki KEF 300 Lakota Sport,
86-04 Kawasaki KLF300 Bayou 300,
89-05 Kawasaki KLF300 Bayou 4x4,
99-02 Kawasaki KVF300 Prairie 300 4x4,
99-02 Kawasaki KVF300 Prairie 300,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
| SIZE | MM |
| Centre 2 Centre | 117 |
| Small End Bearing | None |
| Small End Bore Ø | 18 |
| Small End Width | 18 |
| Big End Bearing | 32x43x22.5 |
| Big End Bore Ø | 43 |
| Big End Width | 22.6 |
| Big End Pin Ø | 32 |
| Big End Pin Length | 58.10 |
| Washer Thickness |
32x52x1.2 |
Part No. 56-250.DR (oro2u.com)
Cross reference numbers ONLY.
Vesrah VA4008 / VA-4008, 13044-5066
