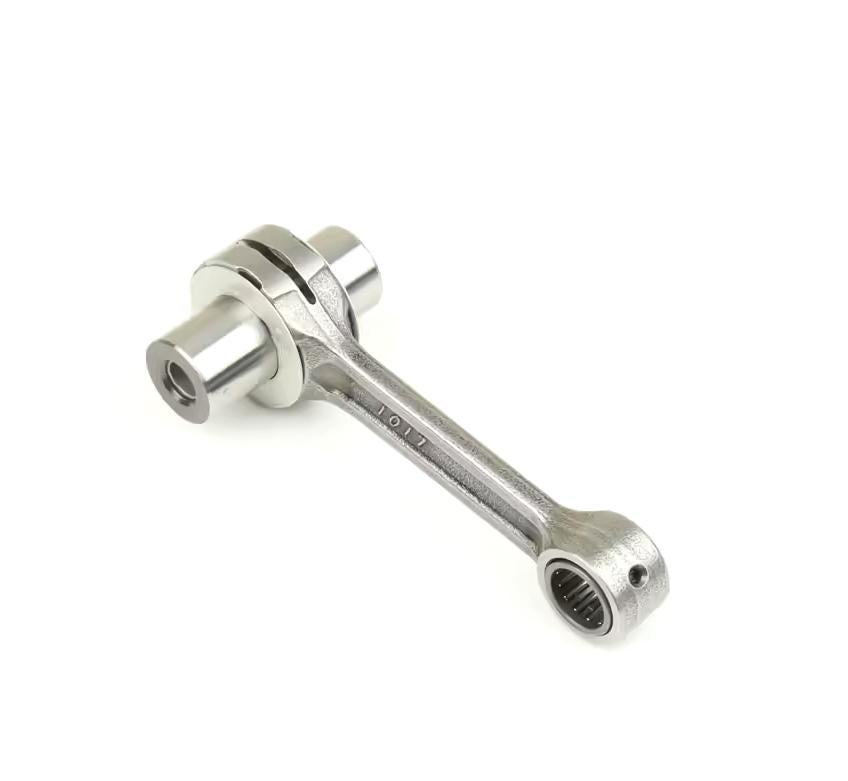

CONNECTING ROD KIT 05-21 YAMAHA YZ 125 ATHENA P40321017

ATHENA Connecting Rod Offroad Kit - P40321017

Athena’s connecting rods are crafted utilizing state-of-the-art materials and treatments to provide optimal performance for one of the most heavily stressed engine components. The manufacturing processes they undergo enable them to achieve an exceptional rigidity-weight ratio and enhanced stress resistance, all while maintaining a highly competitive price point.

Technical Features:

• Big End Bore (mm): 29.00


• Big End Pin Diameter (mm): 22.00


• Big End Width (mm): 17.00


• Centre To Centre (mm): 102.00


• Net Weight (Kg): 0.32


• Piston Pin Diameter (mm): 19.00


• Small End Width (mm): 16.00


• Washer Thickness (mm): 1.00

Compatibility:

• YAMAHA YZ125 cc 2005/2021

Part No.: 56-159.ATH
