CONNECTING ROD 98-06 KTM125, HOTROD 8627 KTM125 SX/EXC

The Hot Rods connecting rod kit (Part No. 8627) is a high-quality replacement for KTM 125 SX and 125 EXC models. Designed for durability and performance, this kit meets the demands of high-RPM applications, providing reliability under heavy loads.

Features:

• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum strength and durability.


• Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.


• Double-forged rods for improved grain flow and dimensional consistency.


• Shot-peened and double-honed for added strength and reliability.


• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.


• Silver-coated thrust washers and crank pin bearings for increased lubricity.

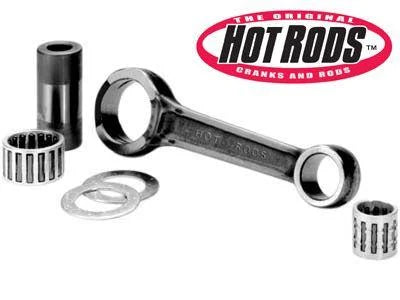

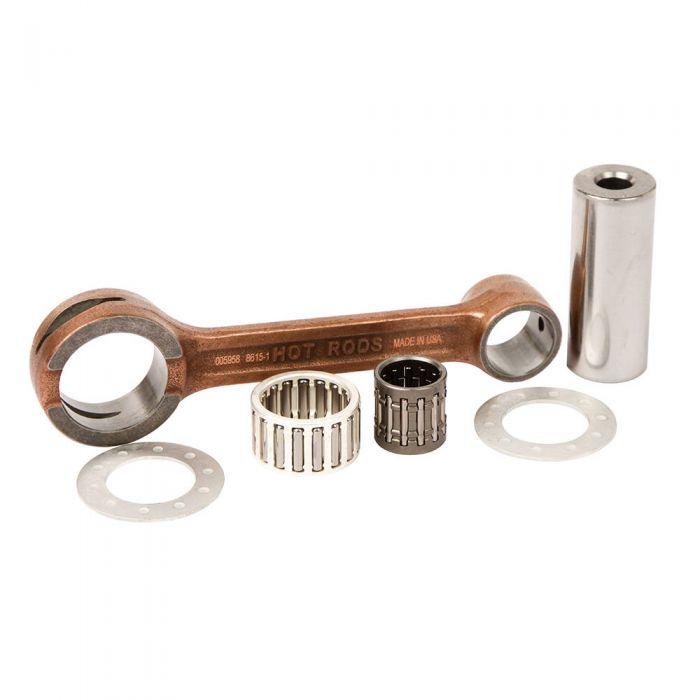

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Specifications (Dimensions in mm):

• A (Center-to-Center Length): 110.00


• B (Big End Bore Diameter): 28.00


• C (Big End Width): N/A


• D (Small End Bore Diameter): 19.00


• E (Small End Width): N/A


• F (Pin Length): 54.80


• Washer Thickness: 1.00

Vehicle Compatibility:

KTM 125 SX:

• 1998–2006

KTM 125 EXC:

• 1998–2006

Cross-reference OEM Part Numbers:

• Hot Rods: 8627


• KTM: 50330015000, 50330015100


• Wossner: P2011

Part Number:

56-112.HR
