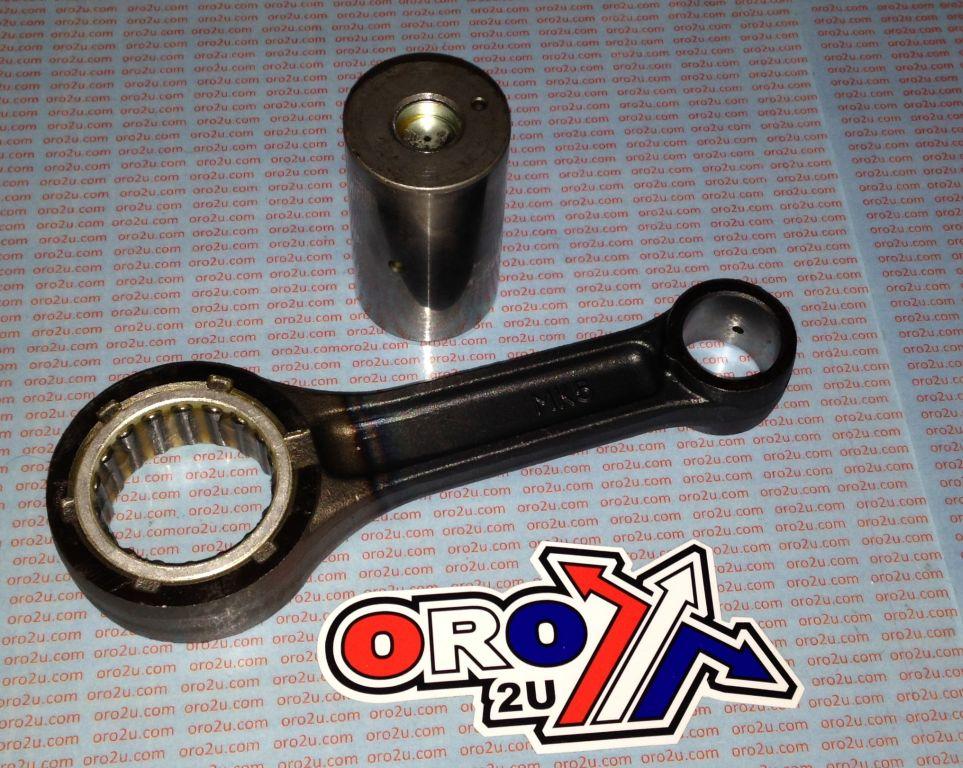

CONNECTING ROD 85-04 XR600R, PSYCHIC MX-09005 XL600R HONDA, No thrust washers

Durable and reliable Psychic connecting rod rebuild kit, designed for Honda XR600R, XL600R, and XBR600 models. This kit offers exceptional strength, precision, and compatibility, providing a premium OE replacement solution for your engine.

Features:

• Heavy-duty connecting rod made from certified chrome alloy steel for superior strength.


• Crankpins are hot-rolled from ASTM steel and case-hardened for enhanced durability.


• Advanced caged needle roller bearing design ensures high RPM longevity.


• Thrust washers crafted from bronze phosphor and silver-coated for added lubricity.


• Fully compatible with aftermarket and OE crankshafts.


• Manufactured from high-quality SNCM220 material for lasting performance.


• Rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers, where applicable.

Specifications:

• Centre to Centre: 134 mm


• Small End Bearing: None


• Small End Bore Ø: 24 mm


• Small End Width: 23.00 mm


• Big End Bearing: 38x48x22.8 mm


• Big End Bore Ø: 48 mm


• Big End Width: 23.00 mm


• Big End Pin Ø: 38 mm


• Big End Pin Length: 65 mm


• Washer Thickness: 38x57x1.00 mm

Cross-Reference OEM Part Numbers:

Hot Rods 8118, WOSSNER P4028, PROX 03.1654

HONDA: 13000-MG2-000, 13000-MG2-790, 13000-MG2-791, 13000-MG2-792

HONDA: 13000-MK2-030, 13000-MK2-040, 13000-MK2-050, 13000-MK2-305

HONDA: 13000-MN1-670, 13000-MN1-671

Compatibility:

• Honda XR600R: 1985–2004


• Honda XL600R: 1983–1987


• Honda XBR600: MK5

Part Number:

MX-09005
