CONNECTING ROD +5 AT-09134, 86-07 BANSHEE LONG ROD +5
CONNECTING ROD +5 AT-09134, 86-07 BANSHEE LONG ROD +5
CONNECTING CONROD ROD REBUILD KIT +5mm. BRONCO AT-09134
YAMAMA
YFZ350 Banshee (Long Rod) 1987-2006,,
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

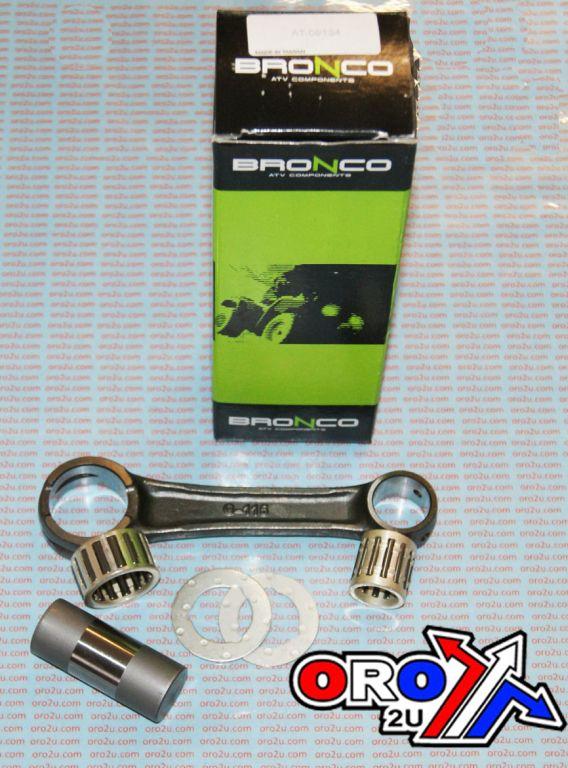

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,
|
SIZE |
MM |
|
Centre 2 Centre |
115 |
|
Small End Bearing |
16x21x22.3 |
|
Small End Bore Ø |
21 |
|
Small End Width |
17.90 |
|
Big End Bearing |
22x29x17 |
|
Big End Bore Ø |
22 |
|
Big End Width |
17 |
|
Big End Pin Ø |
29 |
|
Big End Pin Length |
52.70 |
|
Washer Thickness |
22.20x36.90x1.00 |
Part No. 56-267.DR (oro2u.com)
Cross reference numbers ONLY.
+5mm long rod for use on 4011 & 4111 crankshafts YAMAHA: 29L-11651-00-00, HOTRODS 8158,
