CONNECTING ROD 07-19 CRF150, WISECO WPR204 HONDA MX

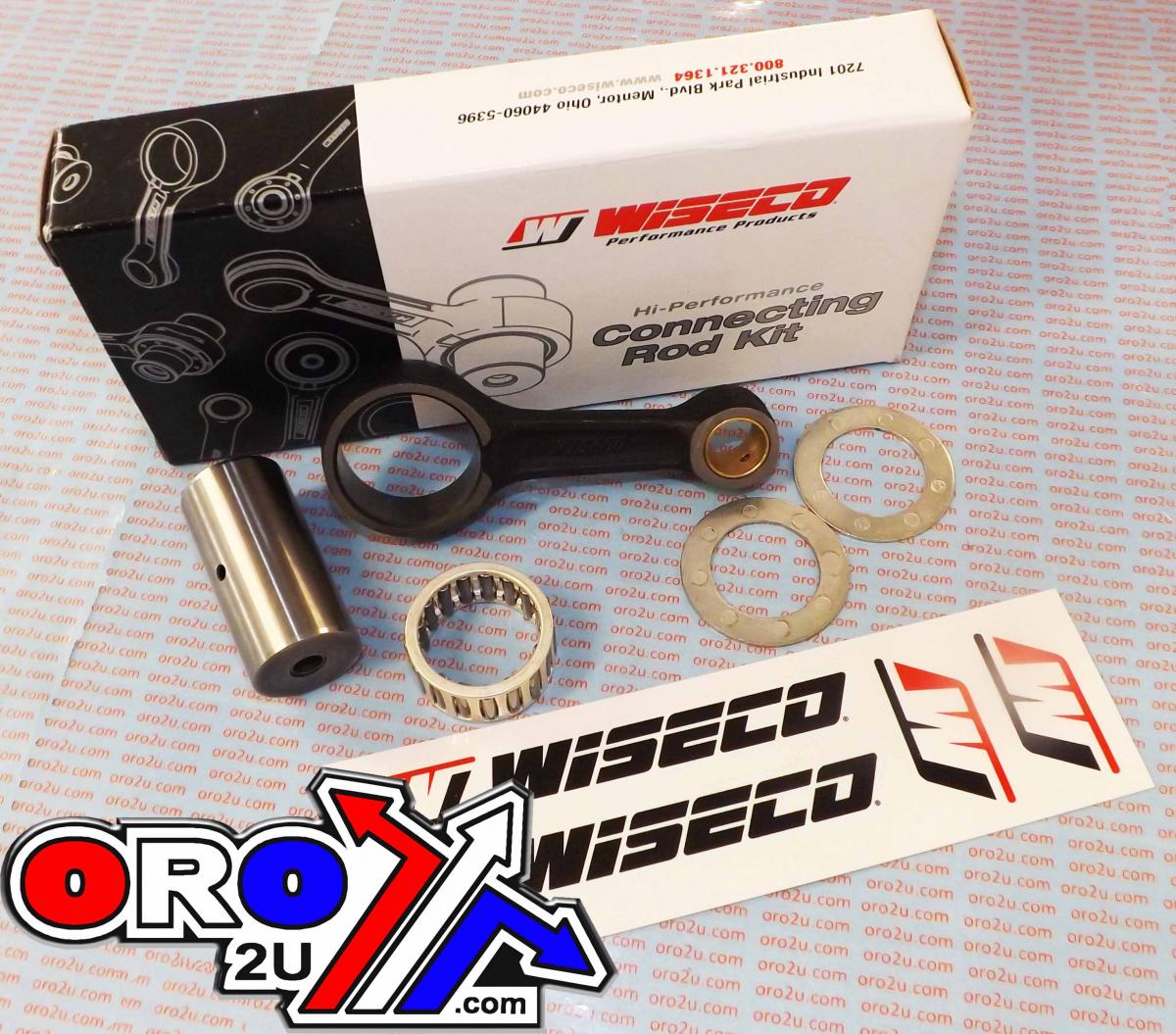

Connecting rod kit for Honda CRF150R (2007–2019), designed as a direct and cost-efficient OEM replacement. Manufactured by leading OEM factories, this Wiseco kit ensures superior strength, durability, and performance. It includes all necessary components for a reliable and trouble-free rebuild.

Features

• Complete kit includes crankpin, big-end bearing, small-end bearing (if applicable), and washers.


• Double-forged rods with a barrelling surface treatment to prevent micro-cracks.


• Precisely located oiling slots maximize lower rod oiling and extend bearing life.


• Manufactured to OEM specifications for easy installation and reliable performance.


• A cost-effective and high-quality replacement option for your bike.

Specifications

• Centre-to-Centre: 75.50 mm


• Small End Bearing: None


• Small End Bore Ø: 14 mm


• Small End Width: 14 mm


• Big End Bearing: 25x32x15.8 mm


• Big End Bore Ø: 32 mm


• Big End Width: 16 mm


• Big End Pin Ø: 25 mm


• Big End Pin Length: 51 mm


• Washer Thickness: None

Cross Reference OEM Part Numbers

• 13000-KSE-670


• Hot Rods 8646


• Wossner P4024


• Wiseco WPR204

Vehicle Fitments

• Honda CRF150R: 2007–2019


• Honda CRF150RB: 2007–2019

Part Number: 56-934.WI
