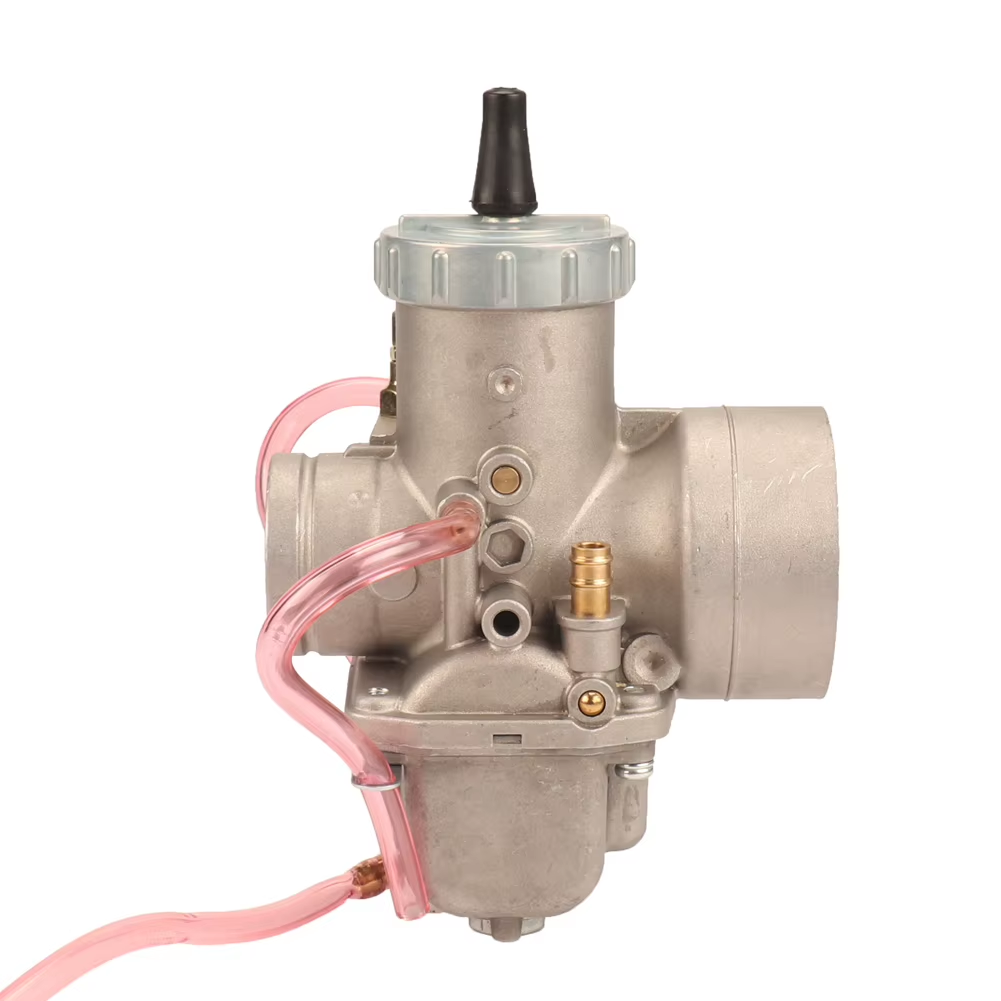

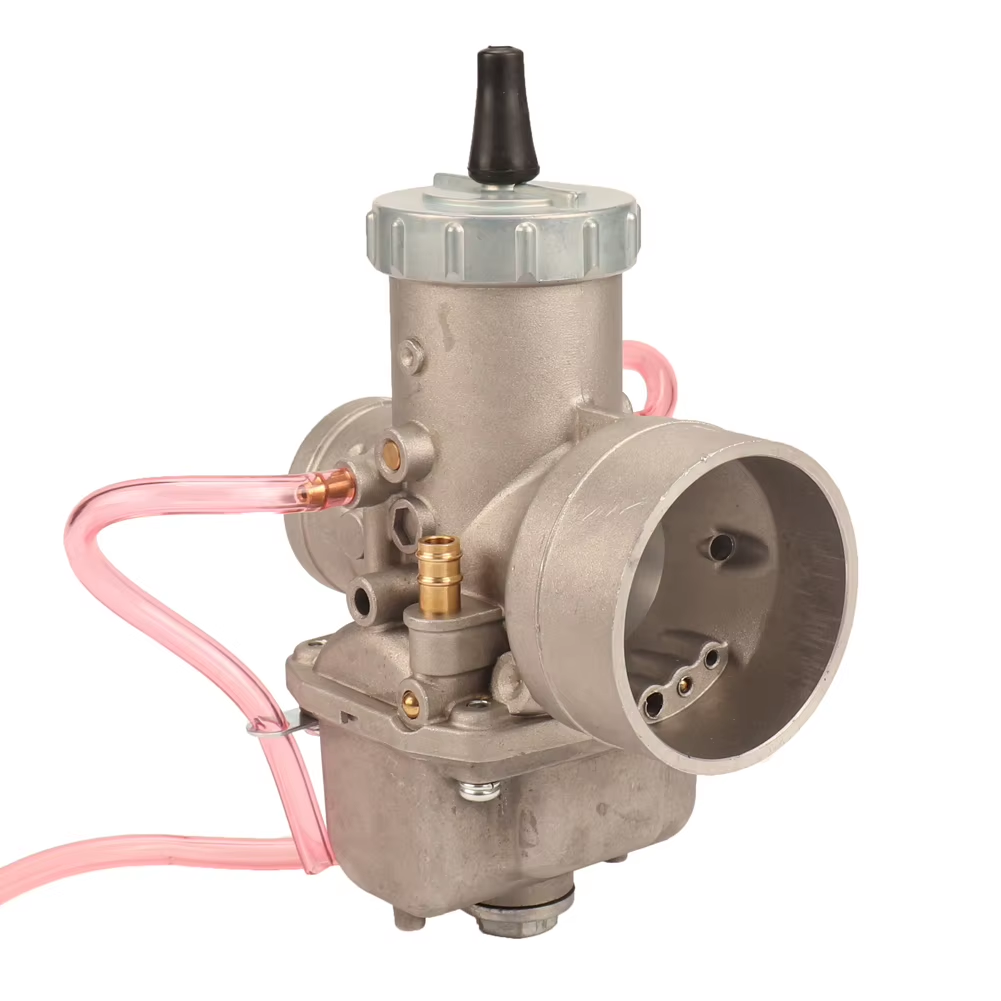

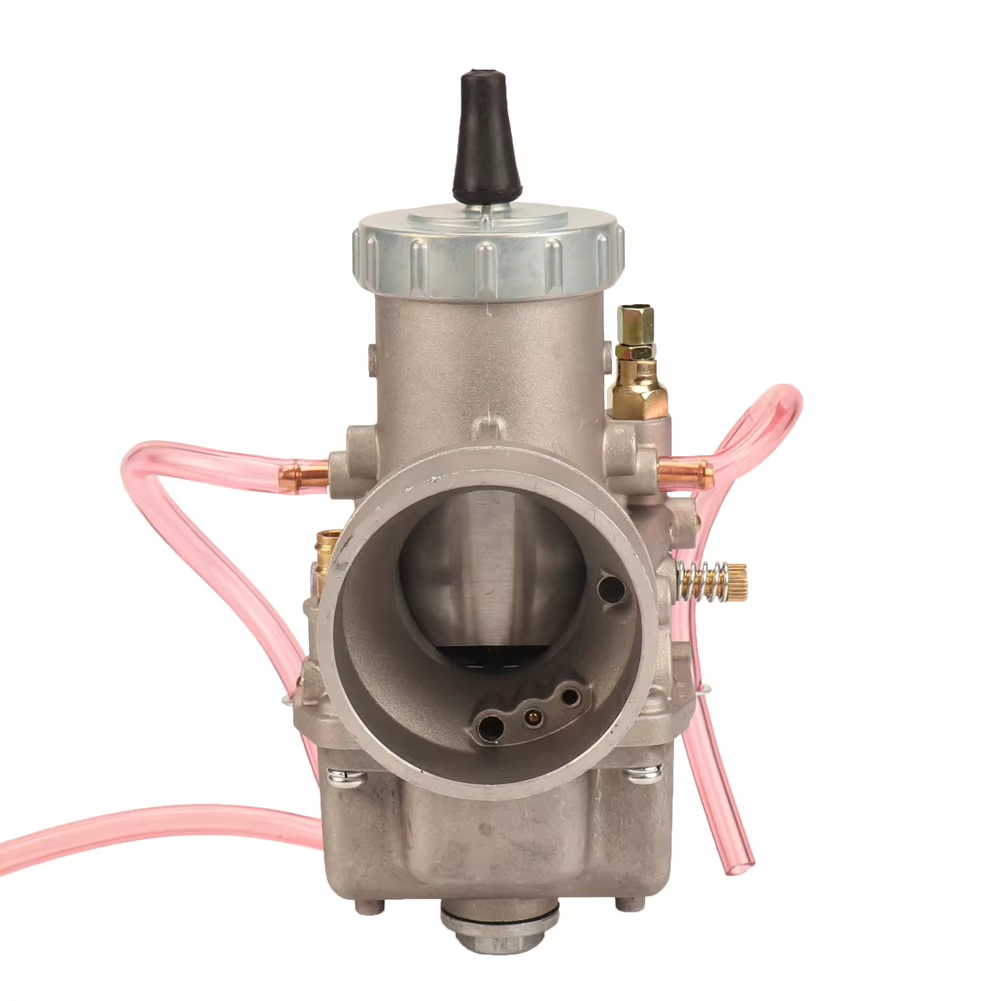

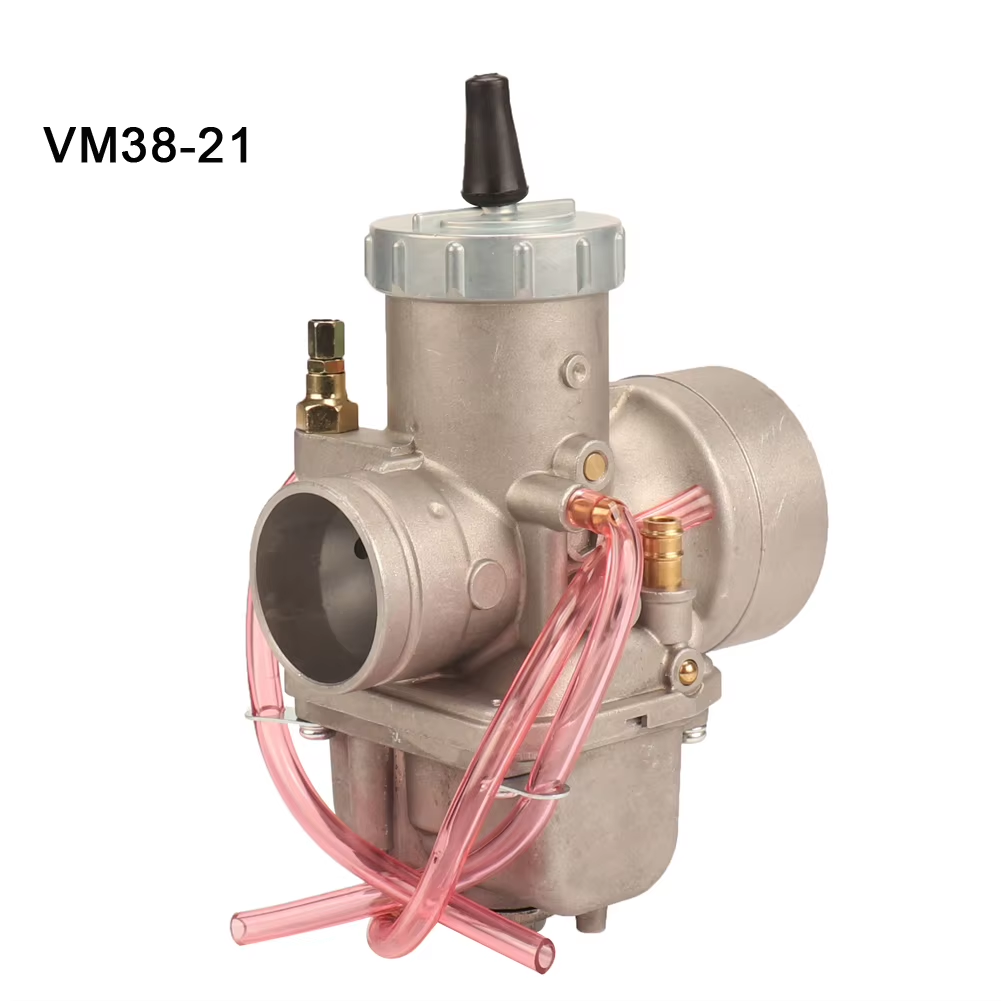

CARBURETOR ASSEMBLY 38mm VM SERIES ROUND SLIDE CABLE START MIKUNI VM38-21 14-1031

The Mikuni VM38-21 is a 38 mm VM Series round-slide carburettor assembly used to meter fuel and air in a compatible intake system. Catalogued by Mikuni as a snowmobile carburettor, it is a cable-start unit suited to replacement, service, or rebuild work where the specific VM38-21 configuration and factory calibration are required.

Features

• Choke Cable Pull


• Round-slide carburettor assembly


• Provides fuel and air metering for compatible engines


• Cable-operated starter system


• Suitable for replacement or rebuild work requiring the VM38-21 configuration

Specifications

• Series: VM Series


• Model: VM38-21


• Carburettor size: 38 mm


• Float height: 22-24 mm

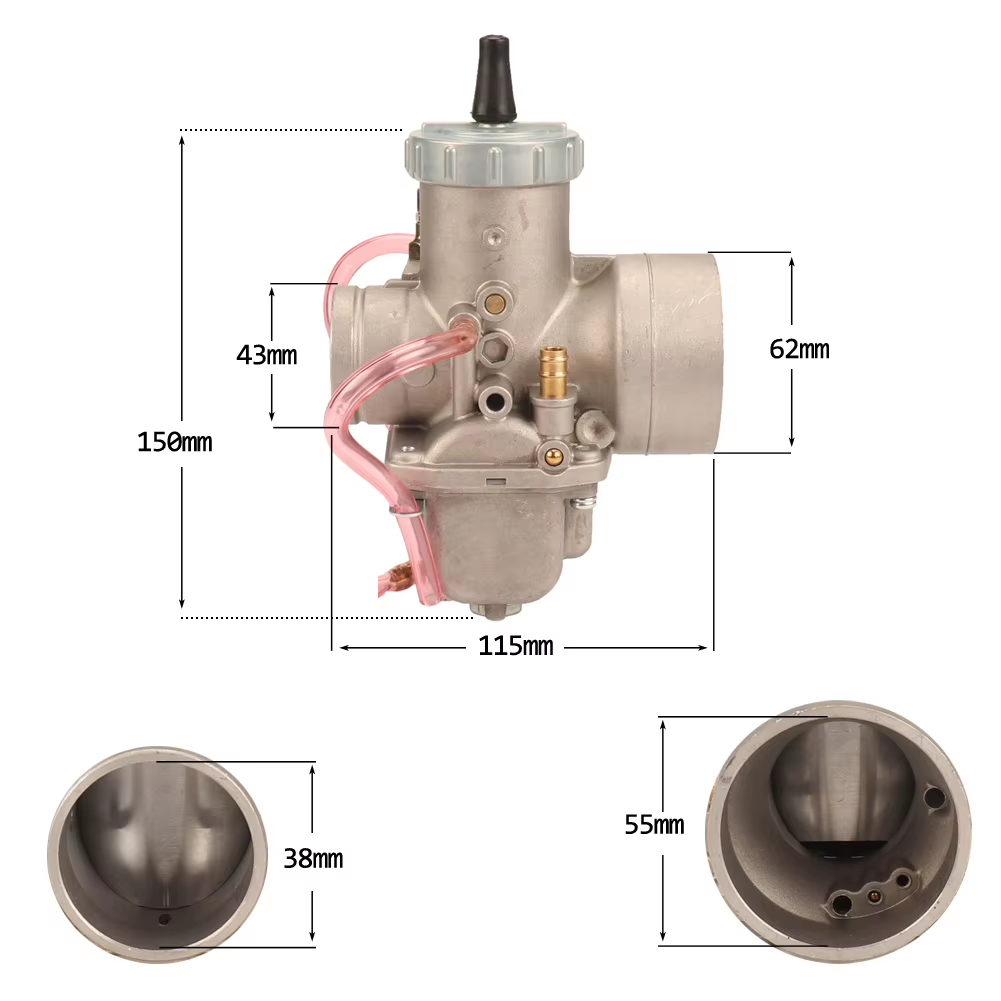

• Spigot mounting outside diameter: 43.00 mm


• Main jet: 4/042-360


• Pilot jet: VM22/210-40


• Needle jet: 166 Q-0


• Jet needle: 6DH3


• Throttle valve: VM38/24-2.5


• Main air jet: 2.5 body


• Needle valve: VM28/163-1.5


• Country of manufacture: Japan
