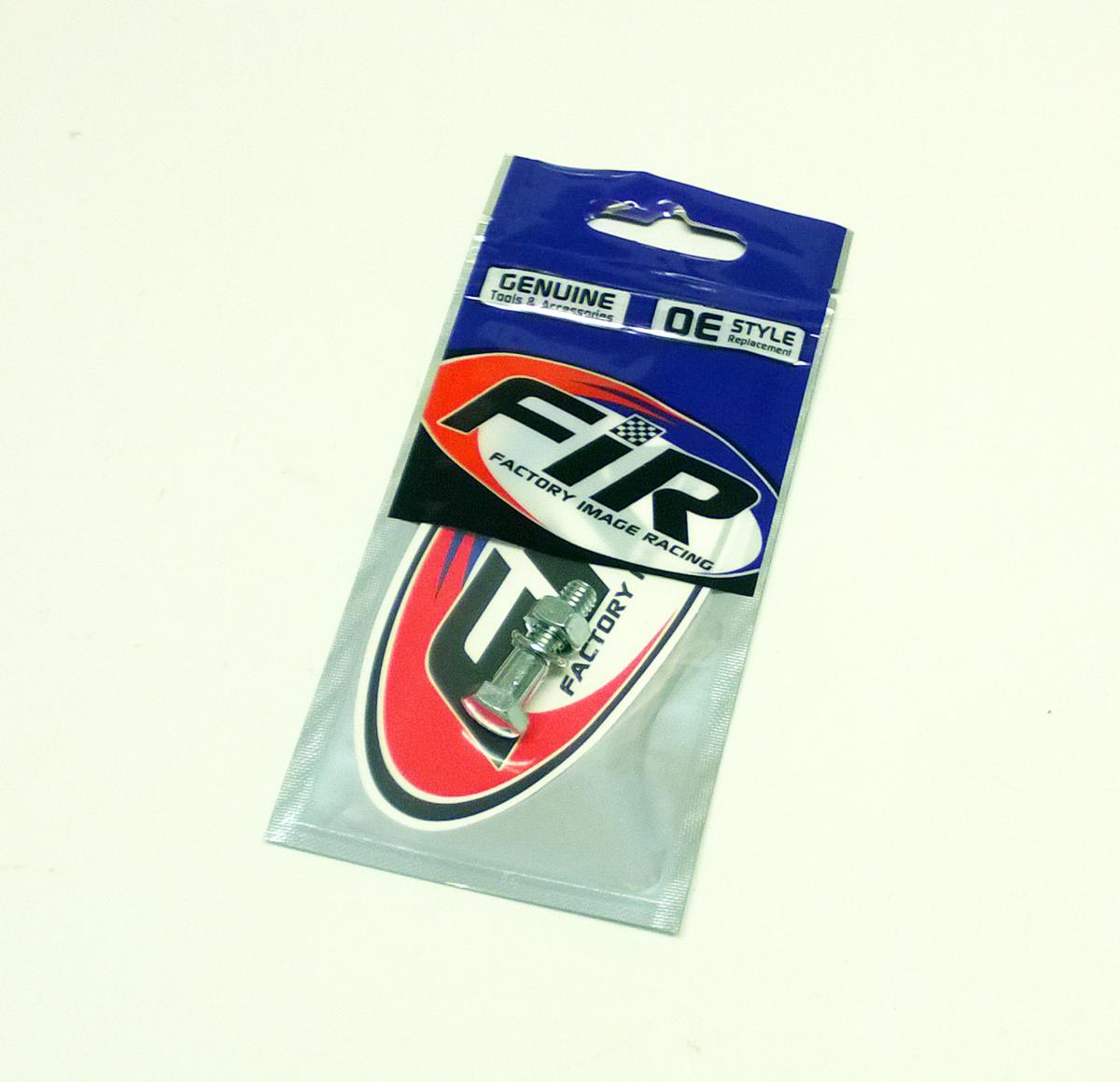

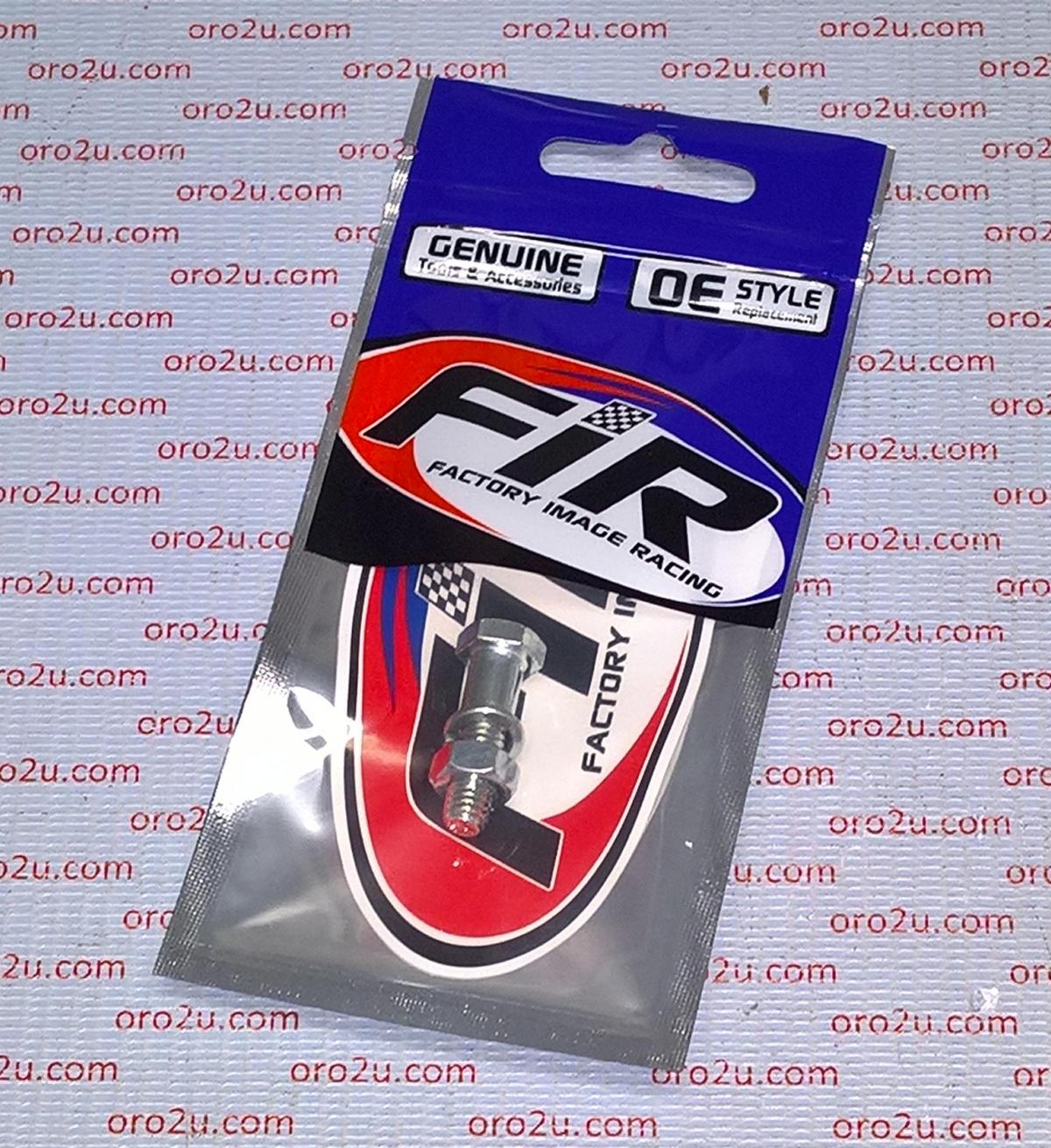

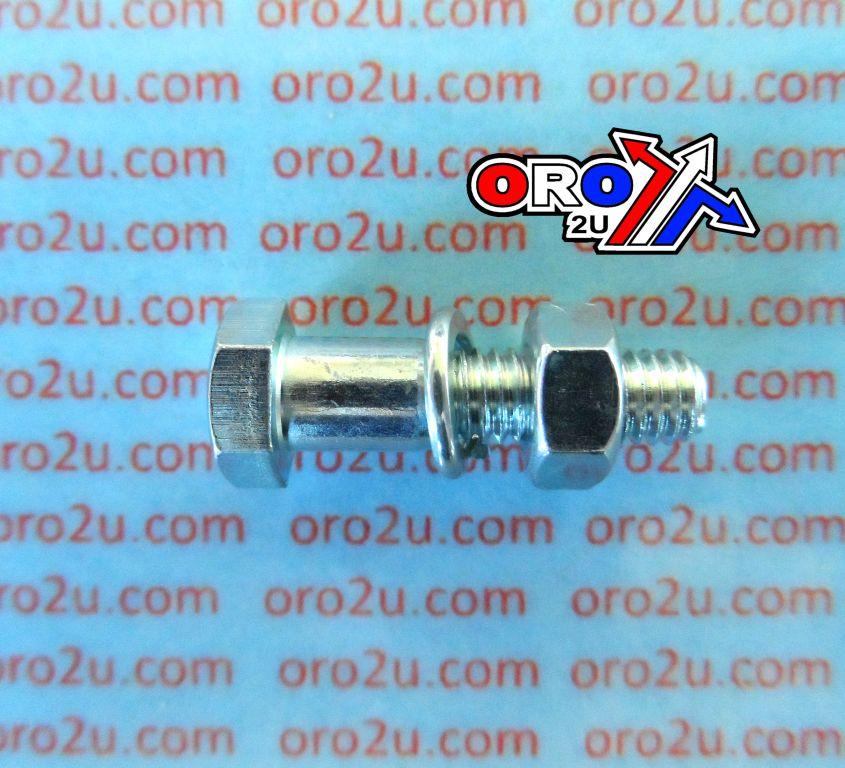

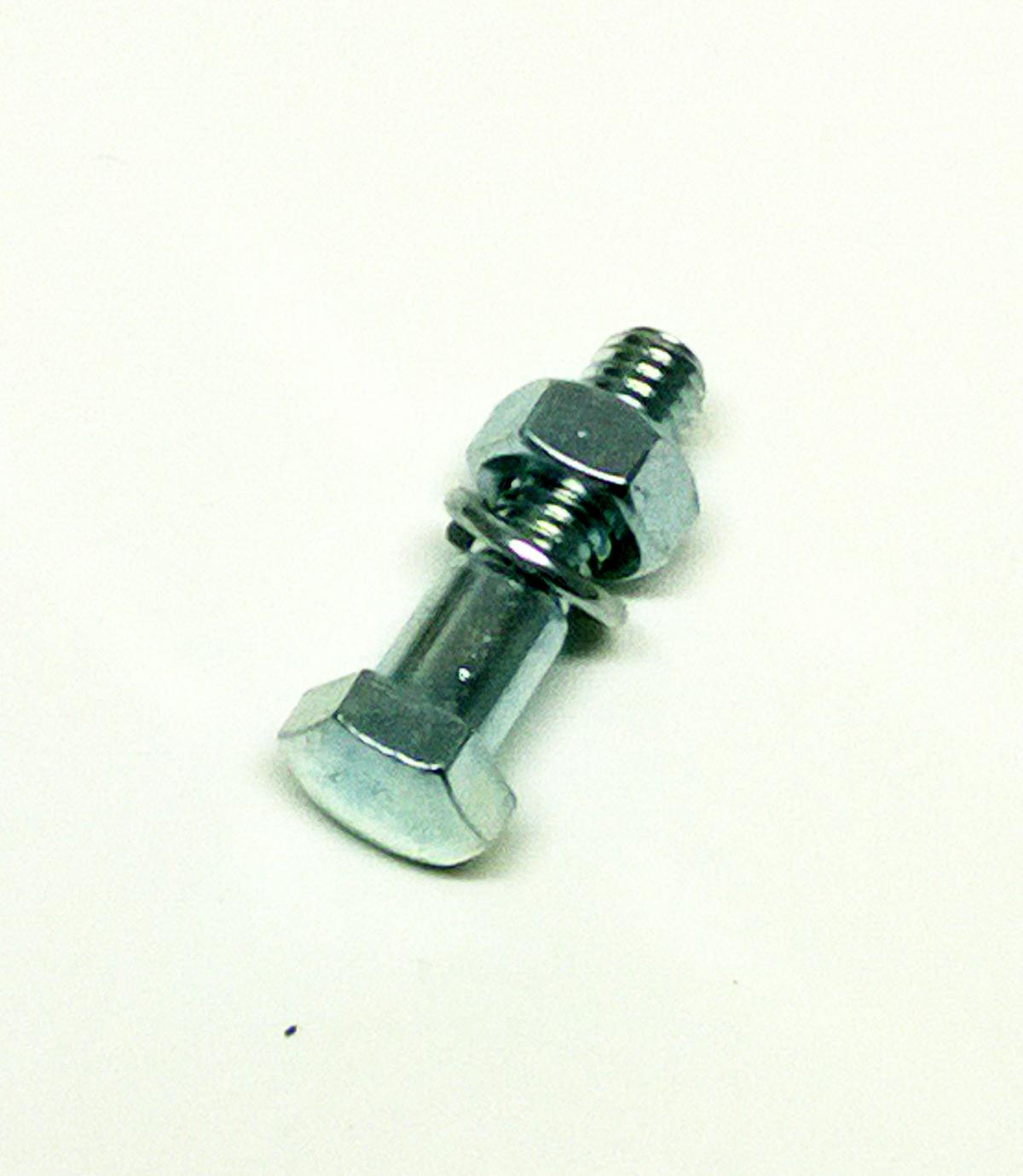

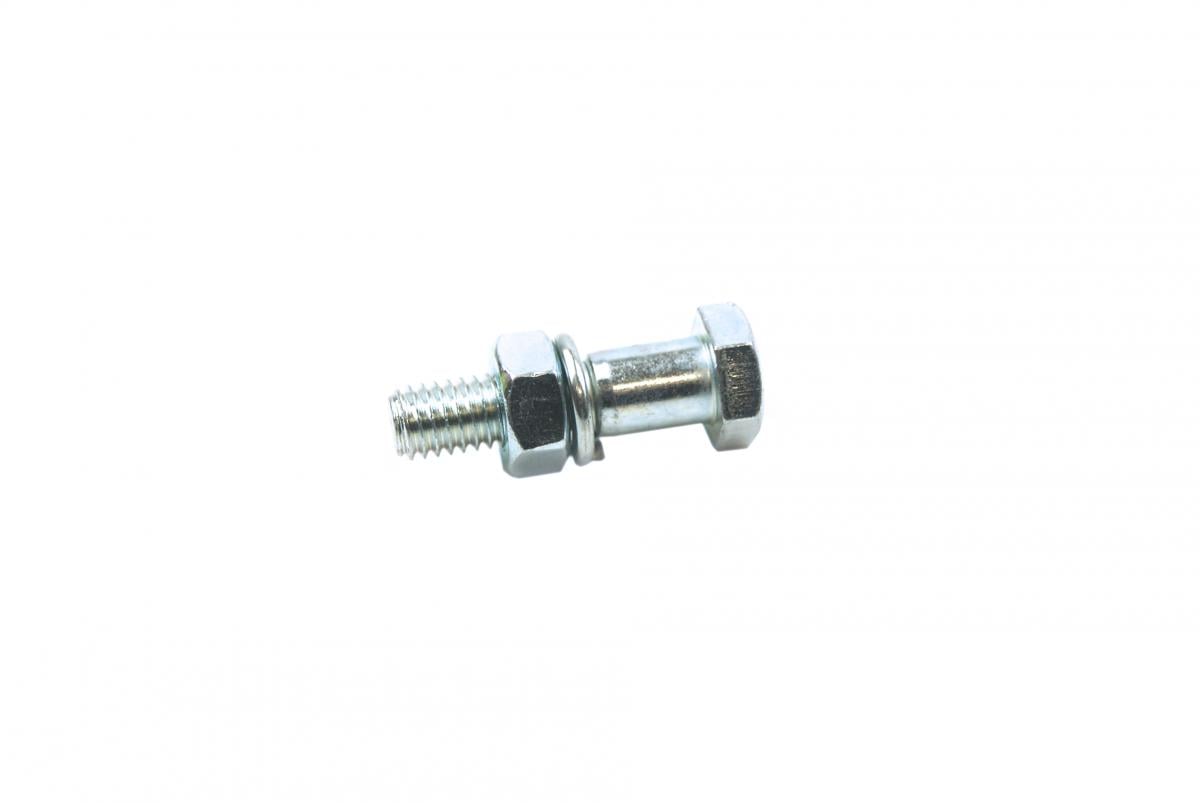

BOLT LEVER PIVOT SET HONDA YAMAHA KAWASAKI SUZUKI CLUTCH OR DRUM BRAKE

Honda-type lever pivot bolt set comprising a pivot bolt, nut and lock washer for Japanese clutch or drum brake brackets. Suitable for a range of Honda, Yamaha, Kawasaki and Suzuki applications, this steel hardware set is finished in bright zinc plating and is supplied with a satisfaction guarantee.

Features

• Complete pivot bolt, nut and lock washer set


• Suitable for Japanese brackets


• Fits clutch or drum brake brackets


• Suitable for Honda, Yamaha, Kawasaki and Suzuki applications

Specifications

• Thread size: M6


• Bolt length: 15.50mm


• Shoulder diameter: 6.80mm


• Shoulder length: 9mm


• Overall length, thread plus shoulder: 14.5mm


• Material: steel


• Finish: bright zinc plated (BZP)


• Hex head size: 10mm AF

Cross-Reference OEM Part Numbers

• Part number: 13-010.EACH


• Superseded from: 13-011

Vehicle Fitments

• Honda clutch or drum brake bracket applications


• Yamaha clutch or drum brake bracket applications


• Kawasaki clutch or drum brake bracket applications


• Suzuki clutch or drum brake bracket applications
