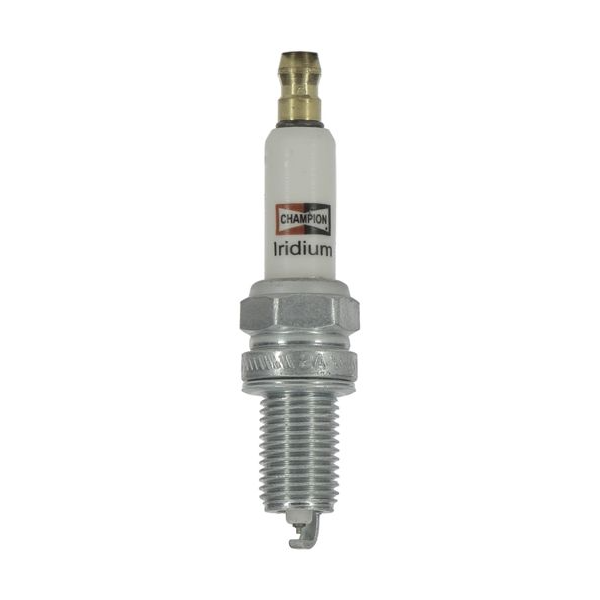

Champion Spark Plug RA7WYB (CCH9700)

Champion Iridium Spark Plug - RA7WYB

Product Description: Experience peak automotive performance with the Champion® Iridium Spark Plug - RA7WYB, engineered for unmatched ignition precision and optimal engine performance across all conditions.

Key Features:

• Maximum Performance: Delivers unrivalled power and efficiency.


• Maximum Life: Iridium centre electrode for extended lifespan and consistent performance.


• Enhanced Ignitability: Fine-wire centre electrode and V-trimmed design for smoother combustion and improved engine responsiveness.


• Sharper Spark Focus: V-trimmed ground electrode for optimized ignition, power output, and fuel efficiency.


• Stable Operating Temperature: Maintains consistency and durability under diverse driving conditions.


• Heat-Active™ Alloy: Enables swift electrode temperature optimization for rapid ignition.

Spark Plug Dimensions:

• Plug Type: RA7WYB


• Centre Electrode Tip Material: Iridium


• Pre-Gap Size: 0.85 mm / 0.033 in


• Ground Electrode Quantity: 1


• Hex Size: 15.880 mm / 0.625 in


• Manufacturer Heat Range: 7


• Seat Type: Flat


• Reach: 0.75 in


• Thread Diameter: 12.000 mm / 0.472 in


• Resistor Type: Yes


• Ground Electrode Tip Design: J Gap


• Ground Electrode Core Material: Platinum


• Washer Included: Yes


• Classification: Champion Iridium


• Electrical Terminal Type: Non-Removable Nut


• Hex Type: Hex


• Washer Type: Crush


• Indexed: No


• Part Description: Spark Plug


• Gap Style: J Gap


• Ground Electrode Material: Platinum Pad Surface

Cross Reference:

• NGK: IJR7A9

Vehicle Compatibility:

Arctic Cat:

• 150: 2006-2017


• 250 2x4: 2006-2009


• 300: 2010-2016


• Bearcat Widetrack: 2003-2008


• DVX 250 + 300: 2006-2015


• Panther 660 Touring + Trail: 2006-2008


• T660 Touring + Turbo: 2004-2008

CFMOTO:

• CF500: 2007-2016


• CF600: 2011-2014


• CFORCE 400: 2016


• CFORCE 800: 2013-2016


• UFORCE 600: 2013


• UFORCE 800: 2013-2016


• X5 (Terralander 500): 2011-2012


• X6 (Terralander 625): 2011-2012


• X8 (Terralander 800): 2012


• Z6 (Terracross 600): 2011-2012


• ZFORCE 500 HO + Trail: 2016


• ZFORCE 600: 2013-2015


• ZFORCE 800: 2014-2016

Can-Am:

• Commander 1000: 2011-2017


• Commander 800R: 2011-2019


• DS 650 X: 2007


• Defender: 2016-2019


• Maverick 1000: 2019


• Maverick 800: 2018-2019


• Outlander 1000: 2012-2015


• Outlander 400: 2007-2014


• Outlander 500: 2007-2015


• Outlander 570: 2016-2019


• Outlander 650: 2007-2019


• Outlander 800: 2007-2015


• Outlander L 500: 2015


• Outlander L 570: 2016


• Outlander Max 1000: 2013-2015


• Outlander Max 400: 2007-2014


• Outlander Max 500: 2007-2015


• Outlander Max 570: 2016-2019


• Outlander Max 650: 2007-2019


• Outlander Max 800: 2007-2015


• Renegade 1000: 2012-2015


• Renegade 500: 2008-2015


• Renegade 570: 2016-2019


• Renegade 800: 2007-2015

Ducati:

• Monster 400: 2000-2004


• Monster 600: 1997-2001


• Monster 750: 2010-2011


• Monster 796: 2011-2014


• Monster 797: 2017-2018


• Scrambler 1100: 2018-2019

Honda:

• CRF150F: 2003-2005


• CRF230F: 2003-2019


• CRF230L: 2008-2009


• CRF230M: 2009


• TRX250: 1987-2020


• TRX300: 1988-2000


• TRX350: 2000-2006


• TRX400: 1998-2007


• TRX500: 2001-2014

Husaberg:

• FC470: 2001-2002


• FC501: 1994-2000


• FC550: 2001-2005


• FE400: 2000-2003


• FE450E: 2004-2008


• FE501E: 2000-2003


• FE550E: 2004-2008


• FE650: 2001-2008


• FS650E: 2002-2005


• FX470E: 2001-2002


• FX650E: 2001-2003

John Deere:

• Buck 500: 2004-2006


• Buck 650: 2006

KTM:

• 250 EXC 4-Stroke: 2003-2005


• 350 LC4: 1994-1995


• 400: 1994-2000


• 450: 2003-2007


• 525: 2003-2006


• 540 SXC: 2000-2006


• 600: 1989-1993


• 620: 1994-2001


• 625 SMC: 2004-2006


• 640: 1998-2002

Kawasaki:

• KL600: 1985-1986


• KLR650: 1988-2017


• KLX650: 1993-1996

Yamaha:

• TT600: 1985-1986


• XT550: 1982


• XT600: 1984-1995


• YFM600FW Grizzly 4x4: 1998-2001


• YFM660 Grizzly + Raptor: 2001-2008


• YXR66F Rhino 660: 2004-2007

For compatibility verification, please check fitments via the catalogue before purchase.
