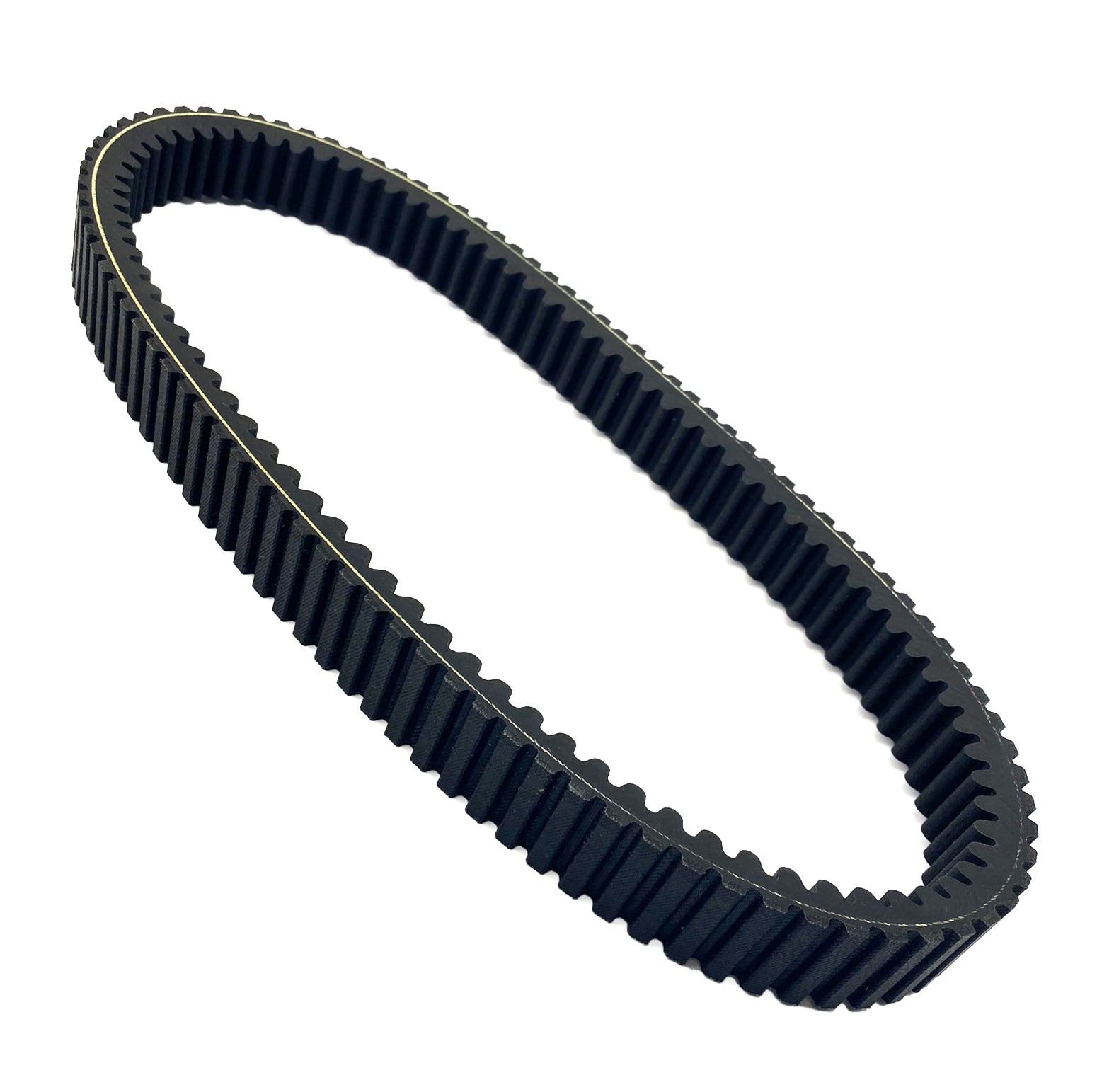

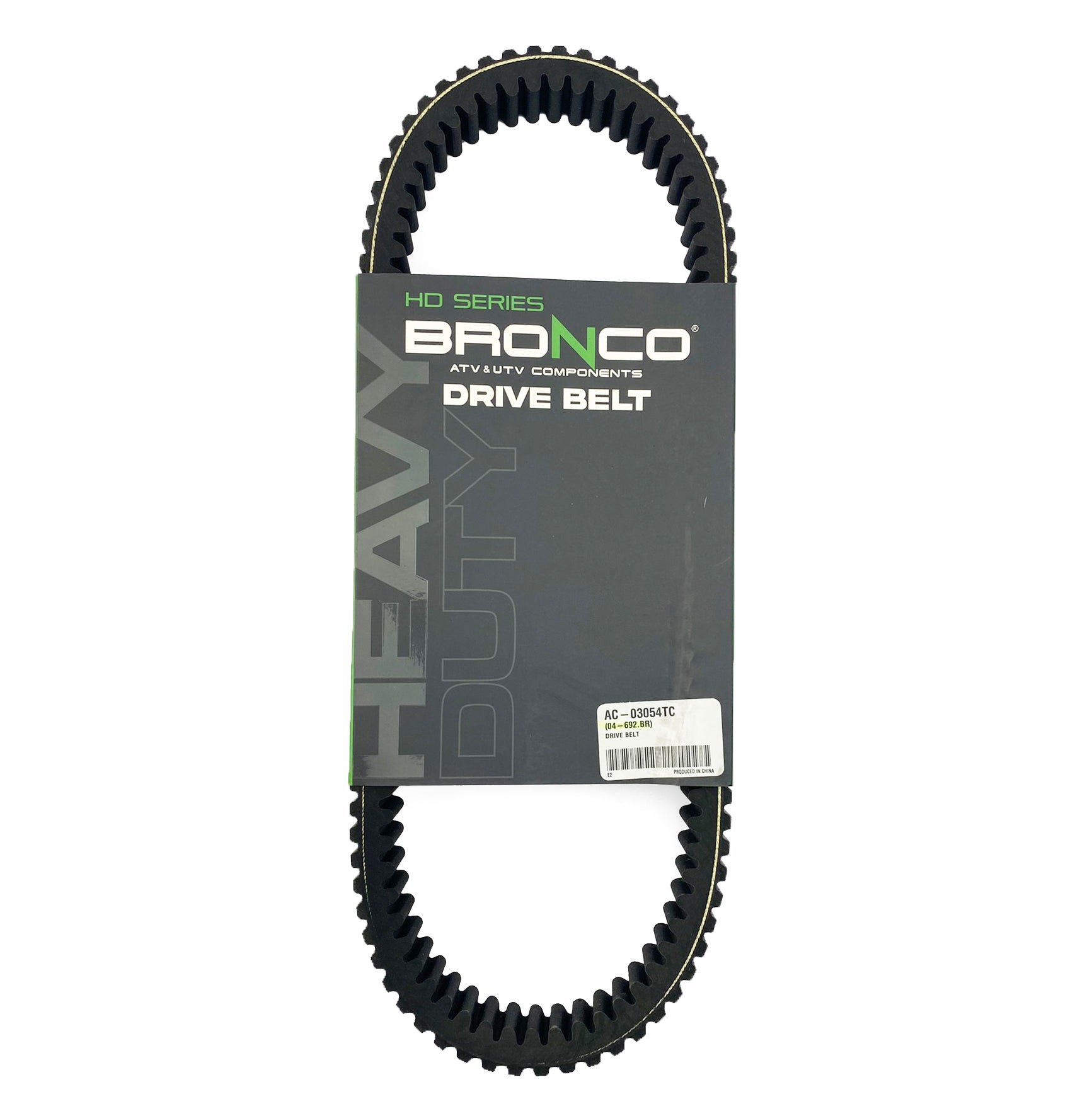

CVT DRIVE BELT 06-18 BOMBARDIER CAN-AM COMMANDER MAVERICK OUTLANDER RENEGADE XTX2236 420280360

This CVT drive belt is a direct replacement transmission belt for selected Bombardier and Can-Am ATV and UTV applications. It is fitted within the continuously variable transmission to transfer engine power through the drivetrain while retaining the original mounting arrangement and factory-style fit. Suitable for replacement or scheduled maintenance, it should be matched against the listed cross-reference part numbers and vehicle applications before ordering.

Features

• Direct replacement CVT drive belt for selected Bombardier and Can-Am ATV and UTV models


• Transfers engine power through the CVT system using the original belt path and mounting arrangement


• OEM-style fit for routine replacement and maintenance work


• Cogged top and bottom profile to support flexibility during CVT operation


• Intended for higher-load ATV and UTV drivetrain applications


• Factory-tested before dispatch

Specifications

• Belt type: CVT drive belt


• Outside circumference: 982 mm (38.66 in)


• Top width: 33.50 mm (1.32 in)


• Compound: high-temperature neoprene or polychloroprene


• Reinforcement: aramid fibre


• Quantity: 1 belt

Cross-Reference OEM Part Numbers

• Dayco XTX2236


• Bombardier 715-900-030 / 715900030


• Bombardier 715-000-302 / 715000302


• 420280360 420280362 422280360


• Can-Am 420280360 / 420-280-360


• Can-Am 420280362 / 420-280-362


• Can-Am 715-900-212 / 715900212


• BT01-854-30.1-J

Vehicle Fitments

• Bombardier Outlander 650 HO EFI 4x4 and Outlander Max 650 HO EFI 4x4, 2006


• Bombardier Outlander 800 HO EFI 4x4 and Outlander Max 800 HO EFI 4x4, 2006


• Can-Am Outlander 400 H.O. EFI 4x4, 2008


• Can-Am Outlander 500 and Outlander Max 500, 2007-2014


• Can-Am Renegade 500, 2008-2014


• Can-Am Outlander 650 and Outlander Max 650, 2007-2018


• Can-Am Commander 800R, 2011-2018


• Can-Am Commander MAX 800R, 2016


• Can-Am Outlander 800 and Outlander Max 800, 2007-2008


• Can-Am Outlander 800R and Outlander Max 800R, 2009-2014


• Can-Am Renegade 800 and Renegade 800R, 2008-2015


• Can-Am Outlander 850 and Outlander Max 850, 2016-2018


• Can-Am Renegade 850, 2016-2018


• Can-Am Commander 1000 and Commander MAX 1000/1000R, 2011-2017


• Can-Am Maverick 1000R and Maverick MAX 1000R Turbo variants, 2013-2018


• Can-Am Outlander 1000, Outlander 1000R, Outlander Max 1000 and Outlander Max 1000R, 2012-2018


• Can-Am Renegade 1000 and Renegade 1000R, 2012-2018
