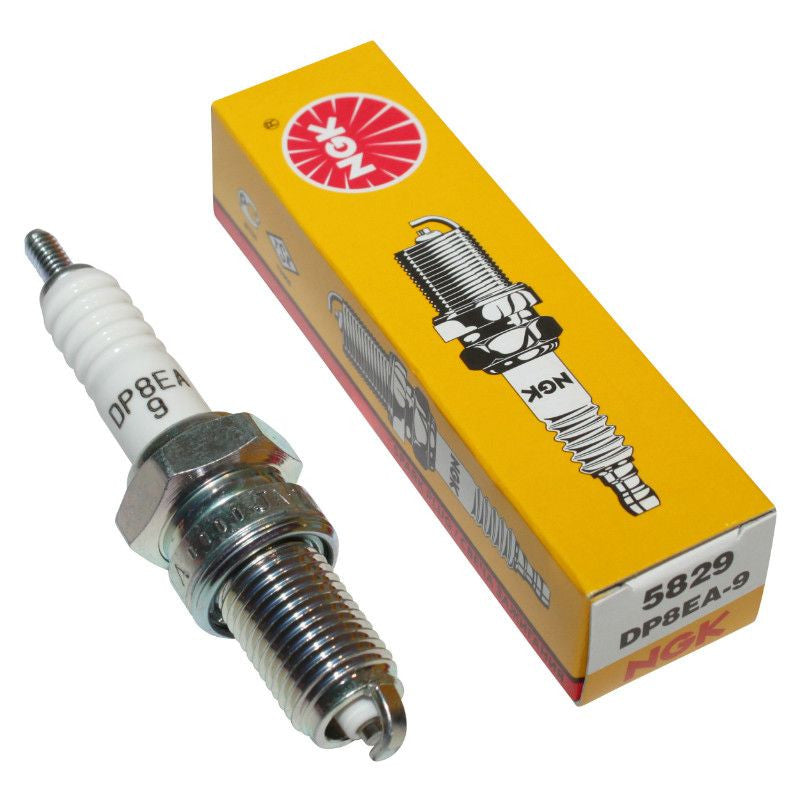

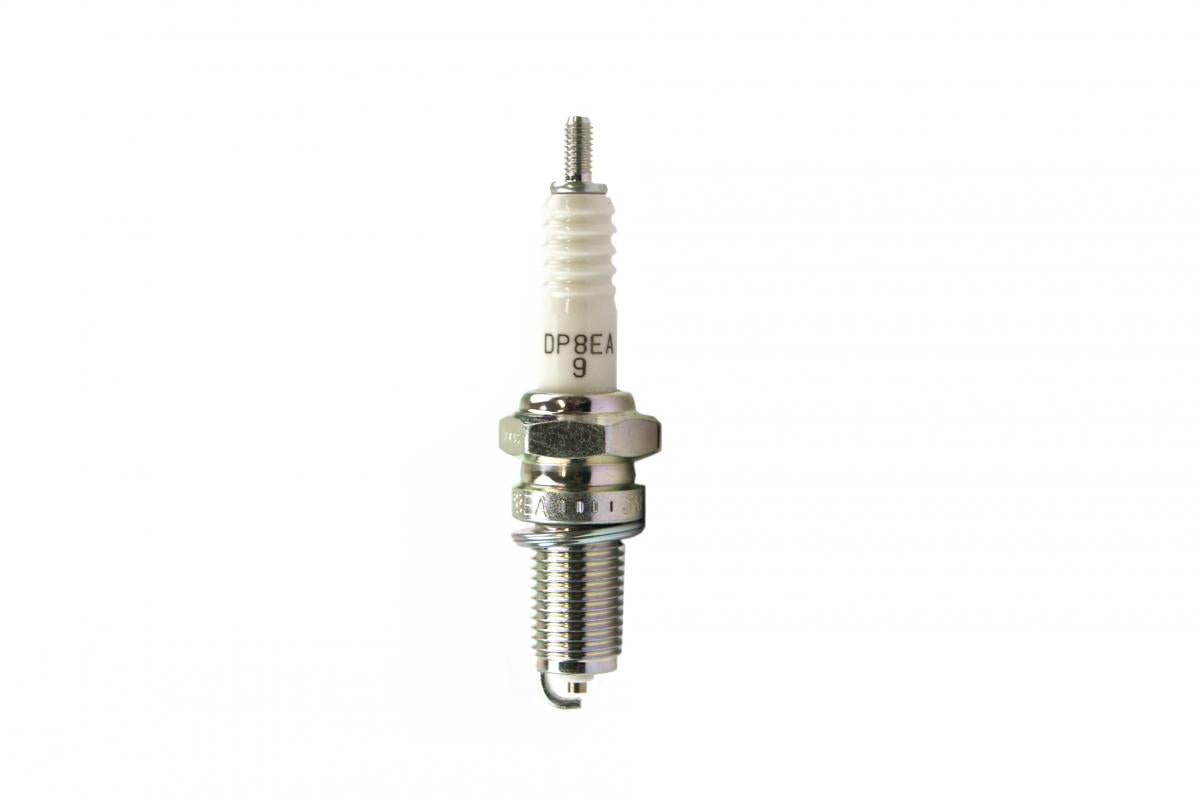

NGK SPARK PLUG DP8EA-9 5829

NGK Spark Plug - DP8EA9

Product Features:

• NGK’s wide heat range results from using copper wire instead of the iron cores found in many conventional plugs.


• Copper dissipates heat quicker, cooling the electrode and insulator tip.


• Raised pre-ignition rating with high-conduction copper and long nose insulator.


• Meets the requirements of high-performance engines.


• Sold individually.

Specifications:

• Heat Range: 8


• Thread Size: 12 mm


• Type: Non-Resistor


• Units: Each


• Weight: 0.12 lbs


• Alternate/OEM Part Numbers: 5829, DP8EA9

Compatible Vehicles:

Kawasaki Models:

• KL650 KLR: 1987


• KL650B Tengai: 1990


• KLF400B Bayou 4x4: 1993–1999


• KVF400A Prairie 4x4: 1997–1998


• KVF400B Prairie 2x4: 1998


• KVF400C Prairie 4x4: 1999–2002


• KVF400D Prairie 2x4: 1999–2002


• VN700A Vulcan: 1985

Suzuki Models:

• GSX-R1100: 1989–1990


• LS650F/P Savage: 1986–1988


• VS1400GLF/GLP Intruder: 1987–1988


• VS700GLEF/GLEP/GLF/GLP Intruder: 1986–1987


• VS750GLP Intruder: 1989–1991

Yamaha Models:

• FJ1100: 1984–1985


• FJ1200: 1986–1992


• FJ1200A ABS: 1992–1993


• FZ700: 1987


• FZ750: 1985–1988


• FZR1000: 1987–1990


• FZR750R: 1987–1988


• FZS600 FZ6: 2009


• FZX700 Fazer: 1986–1987


• SRX600: 1986


• XT600: 1984–1989

Part Number: 37-DP8EA-9 (oro2u.com)

NGK Traditional Spark Plug Details

Key Features:

• Constructed for longer life and optimum performance.


• Corrugated ribs prevent flashover.


• NGK uses pure alumina silicate ceramic insulators, providing greater strength and better heat transfer.


• Copper core aids in heat removal and improves durability.


• Triple sealed to prevent interior leakage.

Plug Specifications:

• Thread Size: 12 mm


• Reach: 19 mm (3/4")


• Hex Size: 11/16" (18 mm)


• Seat Type: Gasket


• Type: Non-Resistor


• Terminal Type: Stud Threads


• Projected Tip: Yes


• Gap: .035" (0.9 mm)


• Heat Range: 8


• Note: Does not include terminal nut. If necessary, order part #067606-0051.
