REAR SHOCK SEAL BLOCK 16.0x46, ALLBALLS 37-1113 CR RM

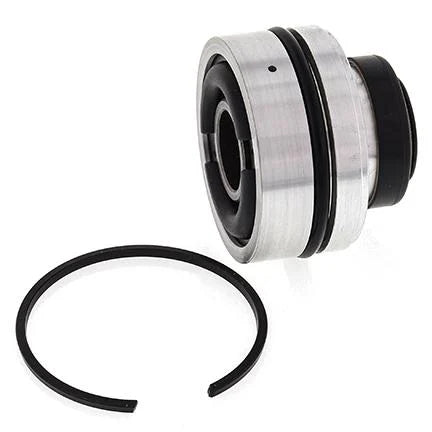

Shock Seal Head Kit - ALLBALLS 37-1113 (1314-0048)

Product Features:

• Complete assemblies, ready to install into the shock body.


• Made from 6061-T6 aluminum and the same custom elastomer as Moose Racing's fork seals.


• All have air bleed holes to help remove air from the oil reservoir during installation.


• Double-lip oil seal design keeps out dirt and reduces friction.


• Some models have updated designs for easier installation.

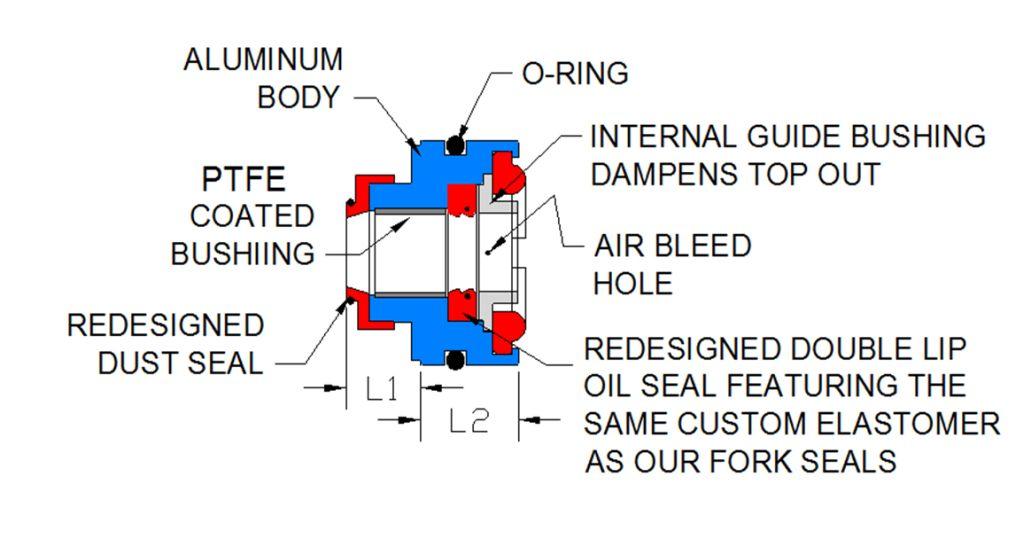

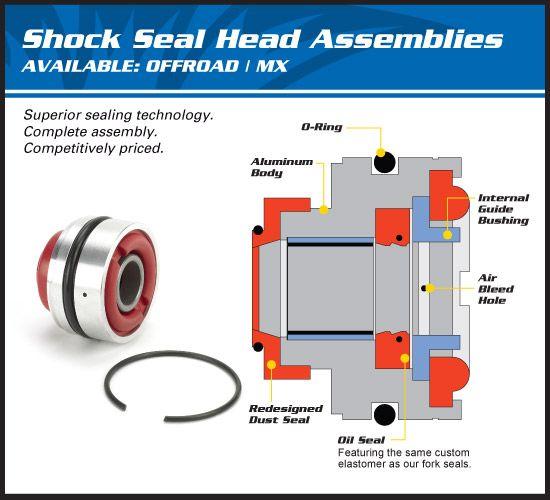

• Kits include: aluminum body, dust seal, bushing, oil seal, O-ring, internal guide bushing/washer, snap ring, and top-out bumper.

Dimensions:

• Inside Diameter: 16mm


• Outside Diameter: 46mm


• Snap Ring: 46mm x 2mm (square)

Fitment:

Honda:

• CR250R 1993-1999


• 1999 Honda CR250R


• 1998 Honda CR250R


• 1997 Honda CR250R


• 1994 Honda CR250R


• 1993 Honda CR250R

Suzuki:

• RM125 1992-1997


• RM250 1992-1997


• 1997 Suzuki RM125


• 1996 Suzuki RM125


• 1995 Suzuki RM125


• 1994 Suzuki RM125


• 1993 Suzuki RM125


• 1992 Suzuki RM125


• 1997 Suzuki RM250


• 1996 Suzuki RM250


• 1995 Suzuki RM250


• 1994 Suzuki RM250


• 1993 Suzuki RM250


• 1992 Suzuki RM250

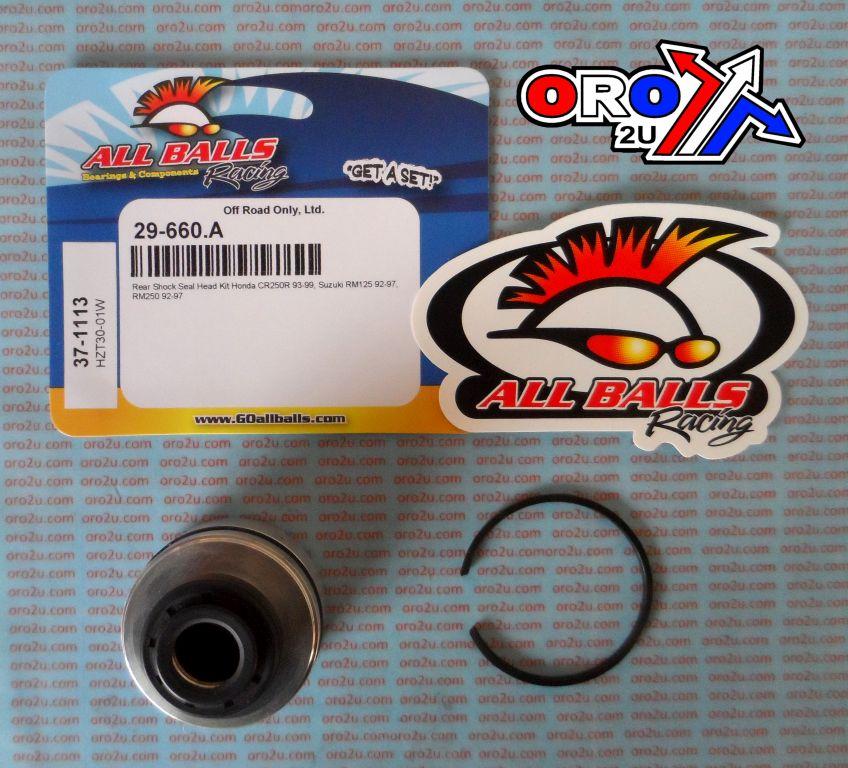

Part No.: ALLBALLS 37-1113

ORO Part No.: 29-660.A (Available at oro2u.com)

Size:

• Rod: 16.00mm x OD 46mm


• Length: 39.50mm


• L1 (Length 1): 17mm


• L2 (Length 2): 22.50mm
